Heat Endurance Ceramic Random Packing , Ceramic Pall ring For High Pressure Towers
Heat Endurance Ceramic Random Packing , Ceramic Pall ring For High Pressure Towers
Heat Endurance Ceramic Random Packing , Ceramic Pall ring For High Pressure Towers
Heat Endurance Ceramic Random Packing , Ceramic Pall ring For High Pressure Towers
Heat Endurance Ceramic Random Packing , Ceramic Pall ring For High Pressure Towers
Heat Endurance Ceramic Random Packing , Ceramic Pall ring For High Pressure Towers
Heat Endurance Ceramic Random Packing , Ceramic Pall ring For High Pressure Towers
Heat Endurance Ceramic Random Packing , Ceramic Pall ring For High Pressure Towers
Heat Endurance Ceramic Random Packing , Ceramic Pall ring For High Pressure Towers
Heat Endurance Ceramic Random Packing , Ceramic Pall ring For High Pressure Towers
Specifications
Brand Name :
Y&G
MOQ :
Negotiation
Supply Ability :
50000mt per month
Delivery Time :
25-35days
Packaging Details :
In pallets, wooden cases or weave strips as required.
Price :
Negotiable
Material :
Alumina Ceramic
Alumina Content :
13% ~23% or specified
Acid resistance (%) :
>99.6
Size :
6mm,10mm,16mm,25mm,40mm, 50mm, 80mm or as required.
Thickness :
0.5mm-30mm
Purity :
95%-99.7%
Density :
3.6-3.9g/cm3
Application :
Industrial Ceramic
Description

Excellent Heat Endurance Ceramic Random Packing For High Pressure Towers

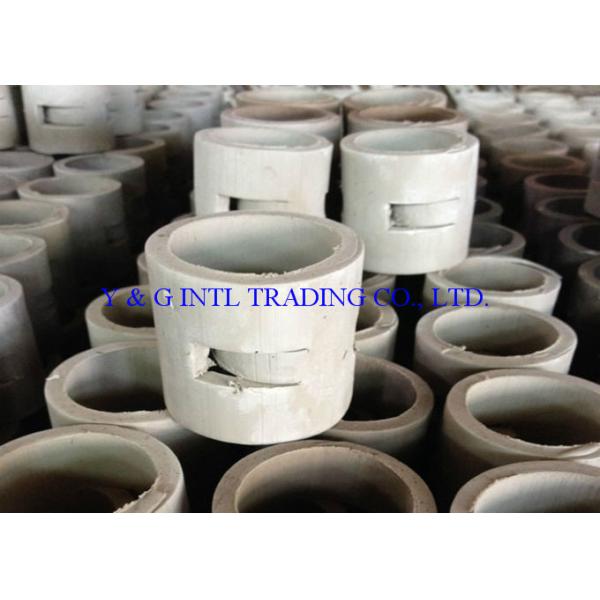

Ceramic Pall ring is a kind of new type and high efficient packing that is improved on the basis of the Raschig ring. Ceramic pall ring is a proven design that provides higher capacity and lower pressure drop than trays and other random packings. The opened cylinder walls and inward bent protrusions of the Pall Ring allow greater capacity and lower pressure drop than standard cylindrical rings.

Ceramic pall rings are originated through improvement of raschig ring. Their open structures effectuate separation of gas and liquid streams and thus facilitate a more effective mass transfer. And decrease the pressure drop.

Specification of Cermic Pall Ring:

Diameter (mm) Size (mm)

Surface Area
(m2/m3)

 Void (%)

Weight

KG/M3

 Number (pcs/m3)

Dry packing

(factor m-1)
16 16x16x2.0 260 71 680 173000 726
25 25×25×3.0 210 73 630 36000 540
38 38×38×4.0 140 75 590 12000 332
50 50×50×5.0 100 78 520 4900 210
76 76×76×9.0 70 80 470 1500 137

Features: excellent acid resistant properties, the ability of reisting various inorganic acid, organic acids and organic solvents corrosion(except HF acid), high temperature in a variety of occasions, c can be used at various high temperatures

Application: wide range of applications, can be used for chemical industry, metallurgy, gas and environmental protection industries in the drying tower, absorption tower, cooling tower, scrubber, regeneration tower.
