Simple Shape Ceramic Tower Packing / Ceramic Raschig Rings High Mechanical Stability
Simple Shape Ceramic Tower Packing / Ceramic Raschig Rings High Mechanical Stability
Simple Shape Ceramic Tower Packing / Ceramic Raschig Rings High Mechanical Stability
Simple Shape Ceramic Tower Packing / Ceramic Raschig Rings High Mechanical Stability
Simple Shape Ceramic Tower Packing / Ceramic Raschig Rings High Mechanical Stability
Simple Shape Ceramic Tower Packing / Ceramic Raschig Rings High Mechanical Stability
Simple Shape Ceramic Tower Packing / Ceramic Raschig Rings High Mechanical Stability
Simple Shape Ceramic Tower Packing / Ceramic Raschig Rings High Mechanical Stability
Simple Shape Ceramic Tower Packing / Ceramic Raschig Rings High Mechanical Stability
Simple Shape Ceramic Tower Packing / Ceramic Raschig Rings High Mechanical Stability
Specifications
Brand Name :
Y&G
MOQ :
Negotiation
Supply Ability :
50000mt per month
Delivery Time :
25-35days
Packaging Details :
In pallets, wooden cases or weave strips as required.
Price :
Negotiable
Material :
Alumina Ceramic
Alumina Content :
13% ~23% or specified
Acid resistance (%) :
>99.6
Size :
6mm,10mm,16mm,25mm,40mm, 50mm, 80mm or as required.
Thickness :
0.5mm-30mm
Purity :
95%-99.7%
Density :
3.6-3.9g/cm3
Application :
Industrial Ceramic
Description

Ceramic Random Packing High Temperature Resistant Ceramic Raschig Ring For Tower Packing

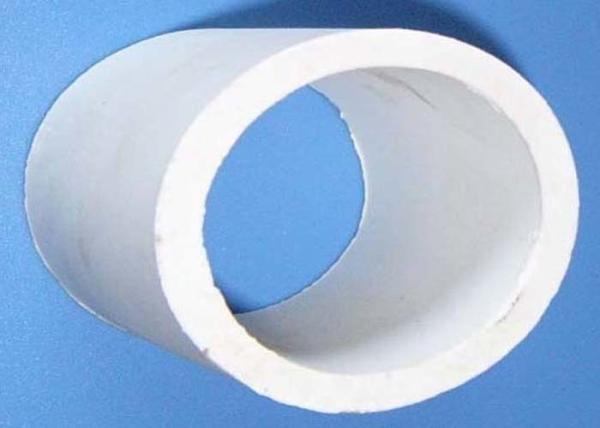

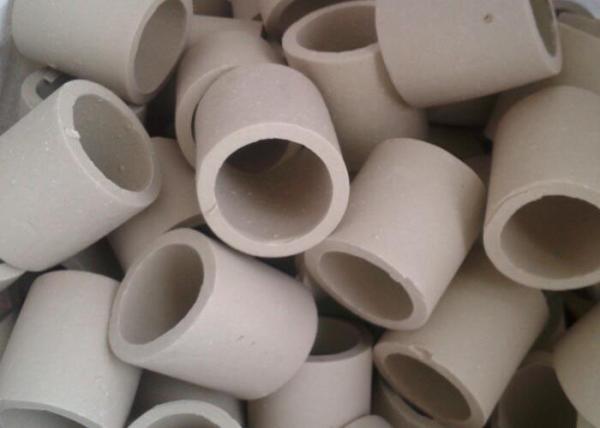

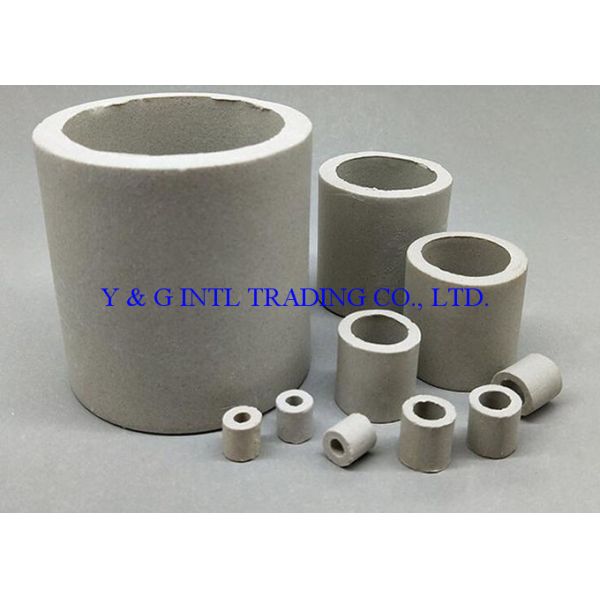

Ceramic Raschig Ring is common regular packing that they are still used for refilling existing columns and other applications. Its surface ratio is higher than ceramic cylinders and balls by 30% and its ring shape has high mechanical stability. It is the first development of a random packing. Simple shape, it is the same height and diameter of the ring. Raschig rings large size (≥100mm) are structurally packed in the column, for small size<100mm below the Raschig rings and more filled with heaps way.

Specification of Cermic Rasching Ring:

Diameter (mm) Size (mm) Surface Area (m2/m3) Void (%) Number (pcs/m3)
6 6×6×1.0 700 57 2640000
8 8×8×1.5 490 62 1210000
10 10x10x2 400 67 750000
20 20×20×2.5 230 70 96000
25 25×25×3.0 200 71 42000
50 50×50×2.5 105 73 5200
76 76×76×3.0 80 74 2260
100 100×100×8.0 66 76 1000
150 150×150×15.0 40 70 283

Features: excellent acid resistant properties, the ability of reisting various inorganic acid, organic acids and organic solvents corrosion(except HF acid), high temperature in a variety of occasions, can be used at various high temperatures

Application: wide range of applications, can be used for chemical industry, metallurgy, gas and environmental protection industries in the drying tower, absorption tower, cooling tower, scrubber, regeneration tower.

Simple Shape Ceramic Tower Packing / Ceramic Raschig Rings High Mechanical StabilitySimple Shape Ceramic Tower Packing / Ceramic Raschig Rings High Mechanical Stability
