Large Size Ceramic Structured Packing / Ceramic Raschig Rings For Tower Packing
Large Size Ceramic Structured Packing / Ceramic Raschig Rings For Tower Packing
Large Size Ceramic Structured Packing / Ceramic Raschig Rings For Tower Packing
Large Size Ceramic Structured Packing / Ceramic Raschig Rings For Tower Packing
Large Size Ceramic Structured Packing / Ceramic Raschig Rings For Tower Packing
Large Size Ceramic Structured Packing / Ceramic Raschig Rings For Tower Packing
Large Size Ceramic Structured Packing / Ceramic Raschig Rings For Tower Packing
Large Size Ceramic Structured Packing / Ceramic Raschig Rings For Tower Packing
Specifications
Brand Name :
Y&G
MOQ :
Negotiation
Price :
Negotiable
Supply Ability :
50000mt per month
Delivery Time :
25-35days
Packaging Details :
In pallets, wooden cases or weave strips as required.
Material :
Alumina Ceramic
Alumina Content :
13% ~23% or specified
Type :
Raschig Ring
Size :
6,8,10,20mm...
Thickness :
0.5mm-30mm
Purity :
95%-99.7%
Density :
3.6-3.9g/cm3
Application :
Industrial Ceramic
Description

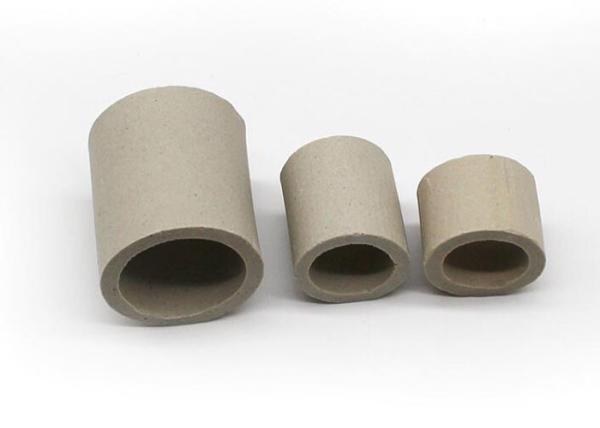

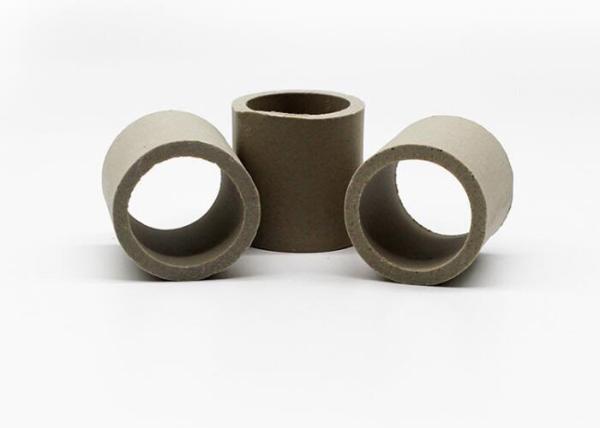

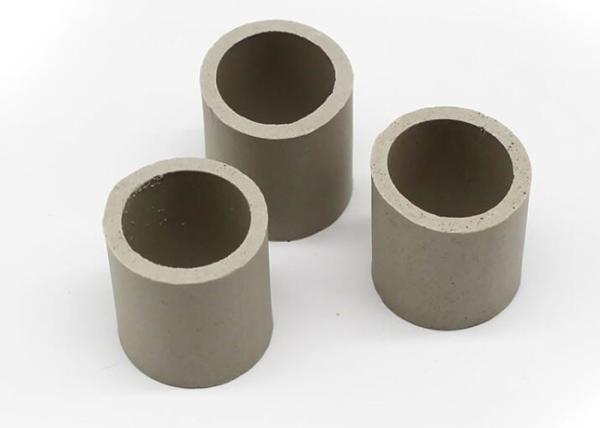

Ceramic Random Packing Ceramic Raschig Ring For Tower Packing

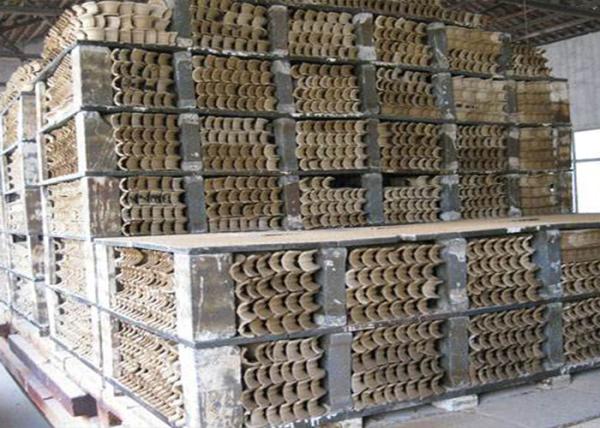

Ceramic Raschig rings, Simple shape, it is the same height and diameter of the ring. Raschig rings large size (≥100mm) are structurally packed in the column, for small size<100mm below the Raschig rings and more filled with heaps way. Ceramic Raschig Rings with excellent acid resistant properties, the ability of reisting various inorganic acid, organic acids and organic solvents corrosion(except HF acid), high temperature in a variety of occasions, wide range of applications, can be used for chemical industry, metallurgy, gas and environmental protection industries in the drying tower, absorption tower, cooling tower, scrubber, regeneration tower.

Specification of Cermic Rasching Ring:

Diameter (mm) Size (mm) Surface Area (m2/m3) Void (%) Number (pcs/m3)
6 6×6×1.0 700 57 2640000
8 8×8×1.5 490 62 1210000
10 10x10x2 400 67 750000
20 20×20×2.5 230 70 96000
25 25×25×3.0 200 71 42000
50 50×50×2.5 105 73 5200
76 76×76×3.0 80 74 2260
100 100×100×8.0 66 76 1000
150 150×150×15.0 40 70 283

Features: excellent acid resistant properties, the ability of reisting various inorganic acid, organic acids and organic solvents corrosion(except HF acid), high temperature in a variety of occasions, can be used at various high temperatures

Application: wide range of applications, can be used for chemical industry, metallurgy, gas and environmental protection industries in the drying tower, absorption tower, cooling tower, scrubber, regeneration tower.

Large Size Ceramic Structured Packing / Ceramic Raschig Rings For Tower Packing
