Gas Scrubbing Ceramic Random Packing Big Flux With Lower Pressure Drop
Gas Scrubbing Ceramic Random Packing Big Flux With Lower Pressure Drop
Gas Scrubbing Ceramic Random Packing Big Flux With Lower Pressure Drop
Gas Scrubbing Ceramic Random Packing Big Flux With Lower Pressure Drop
Gas Scrubbing Ceramic Random Packing Big Flux With Lower Pressure Drop
Gas Scrubbing Ceramic Random Packing Big Flux With Lower Pressure Drop
Gas Scrubbing Ceramic Random Packing Big Flux With Lower Pressure Drop
Gas Scrubbing Ceramic Random Packing Big Flux With Lower Pressure Drop
Gas Scrubbing Ceramic Random Packing Big Flux With Lower Pressure Drop
Gas Scrubbing Ceramic Random Packing Big Flux With Lower Pressure Drop
Specifications
Brand Name :
Y&G
MOQ :
Negotiation
Supply Ability :
50000mt per month
Delivery Time :
25-35days
Packaging Details :
In pallets, wooden cases or weave strips as required.
Price :
Negotiable
Material :
Alumina Ceramic
Alumina Content :
13% ~23% or specified
Acid resistance (%) :
>99.6
Size :
6mm,10mm,16mm,25mm,40mm, 50mm, 80mm or as required.
Thickness :
0.5mm-30mm
Purity :
95%-99.7%
Density :
3.6-3.9g/cm3
Application :
Industrial Ceramic
Description

Gas Scrubbing Ceramic Random Packing Big Flux With Lower Pressure Drop

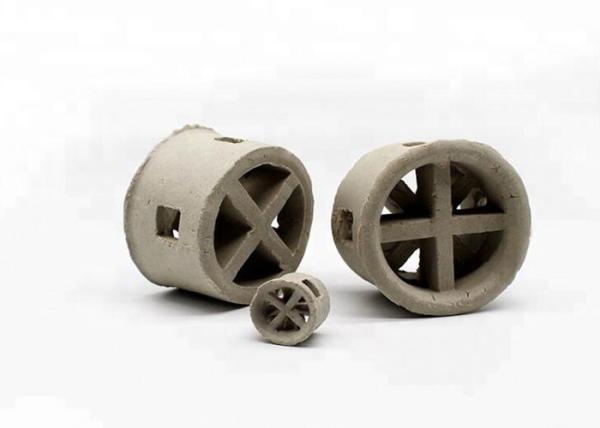

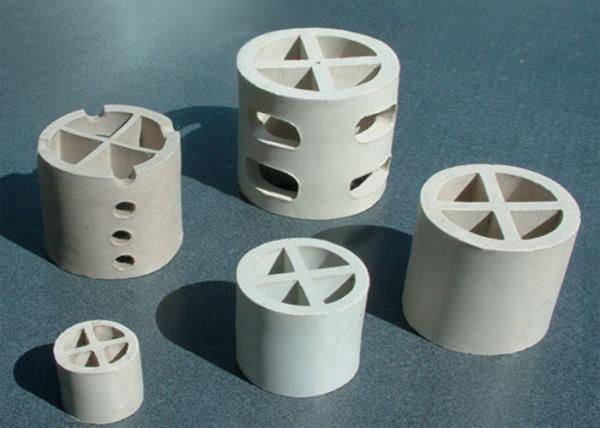

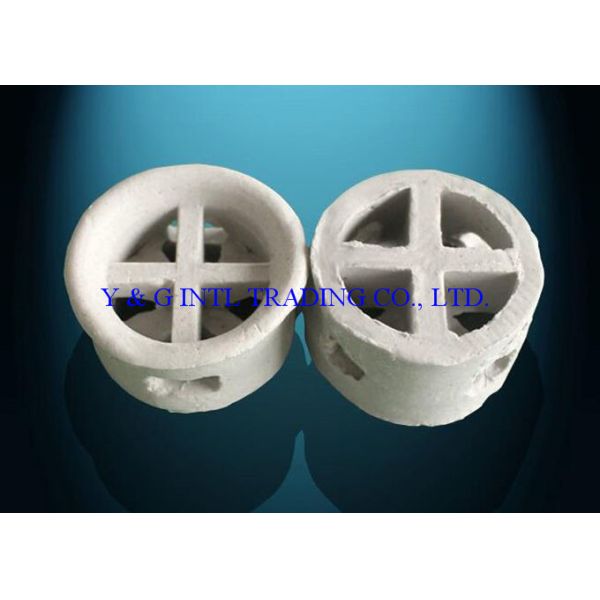

Ceramic Cascade Mini Ring high-performance random packings provide significant capacity advantages and lower pressure drop than other random packings. These high-performance random packings have consistently demonstrated capacity improvements of up to 15% in a variety of applications without loss of efficiency. Superior mechanical integrity allows processors to specify deep beds without packing deformation. Both high performance packings are available in several sizes and virtually any metallic material. Cascade Mini Ring random packings are the most advanced random packing designs offered today.

Specifications of Ceramic Cascade Mini Ring:

Diameter Size (mm) Surface Area
(m2/m3)		 Void (%) Number (pcs/m3)

Bulk density

(kg/m3)

Dry packing

(factor m-1)
1" 25×15×3 210 73 72000 650 540
1.5" 38×23×4 153 74 21600 630 378
2" 55×30×5 102 76 9100 580 232
3" 76×46×9 75 78 2500 530 158

Features: excellent acid resistant properties, the ability of reisting various inorganic acid, organic acids and organic solvents corrosion(except HF acid), high temperature in a variety of occasions, c can be used at various high temperatures.

Application: wide range of applications, can be used for chemical industry, metallurgy, gas and environmental protection industries in the drying tower, absorption tower, cooling tower, scrubber, regeneration tower.

Gas Scrubbing Ceramic Random Packing Big Flux With Lower Pressure Drop

Gas Scrubbing Ceramic Random Packing Big Flux With Lower Pressure Drop
