Specifications
Brand Name :
Y&G
MOQ :
Negotiation
Price :
Negotiable
Supply Ability :
50000mt per month
Delivery Time :
25-35days
Packaging Details :
In pallets, wooden cases or weave strips as required.
Material :
Alumina Ceramic
Alumina Content :
13% ~23% or specified
Type :
Pall ring
Size :
6mm,10mm,16mm...
Thickness :
0.5mm-30mm
Purity :
95%-99.7%
Density :
3.6-3.9g/cm3
Application :
Industrial Ceramic
Description

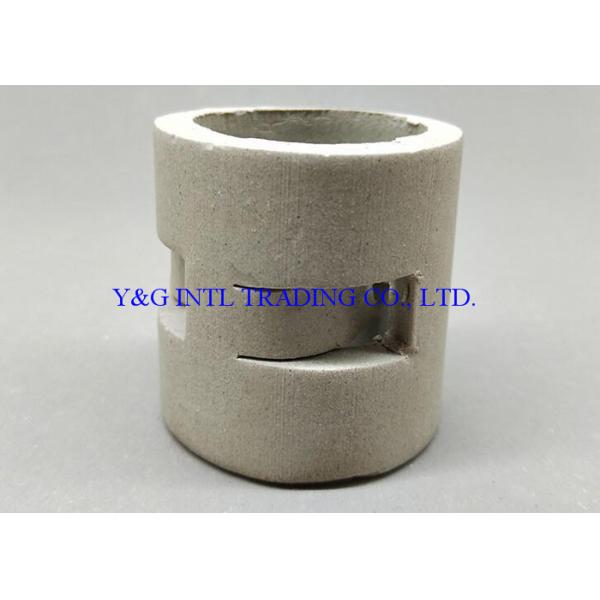

Ceramic Random Packing Ceramic Pall ring

Ceramic Pall ring As one of the most common and well known tower packings, Ceramic Pall Ring is already an industry standard design media developed from the Raschig Ring and is used widely in all variety of applications. After improving, it opens two rows of window holes with inner tongue sheet on wall of ring. This new structure improves distribution of gas and liquid, adopting inner surface of ring sufficiently. Compared to Rasching Ring, its disposal capacity increases by up to 50% while pressure decreases to half of former. and liquid streams and thus facilitate a more effective mass transfer. And decrease the pressure drop.

Specification of Cermic Pall Ring:

Diameter (mm) Size (mm)

Surface Area
(m2/m3)

 Void (%)

Weight

KG/M3

 Number (pcs/m3)

Dry packing

(factor m-1)
16 16x16x2.0 260 71 680 173000 726
25 25×25×3.0 210 73 630 36000 540
38 38×38×4.0 140 75 590 12000 332
50 50×50×5.0 100 78 520 4900 210
76 76×76×9.0 70 80 470 1500 137

Features: excellent acid resistant properties, the ability of reisting various inorganic acid, organic acids and organic solvents corrosion(except HF acid), high temperature in a variety of occasions, c can be used at various high temperatures

Application: wide range of applications, can be used for chemical industry, metallurgy, gas and environmental protection industries in the drying tower, absorption tower, cooling tower, scrubber, regeneration tower.
