High Purity Ceramic Random Packing 13% ~23% Alumina Content For Industrial , Cross-Partition Ring
High Purity Ceramic Random Packing 13% ~23% Alumina Content For Industrial , Cross-Partition Ring
High Purity Ceramic Random Packing 13% ~23% Alumina Content For Industrial , Cross-Partition Ring
High Purity Ceramic Random Packing 13% ~23% Alumina Content For Industrial , Cross-Partition Ring
High Purity Ceramic Random Packing 13% ~23% Alumina Content For Industrial , Cross-Partition Ring
High Purity Ceramic Random Packing 13% ~23% Alumina Content For Industrial , Cross-Partition Ring
High Purity Ceramic Random Packing 13% ~23% Alumina Content For Industrial , Cross-Partition Ring
High Purity Ceramic Random Packing 13% ~23% Alumina Content For Industrial , Cross-Partition Ring
High Purity Ceramic Random Packing 13% ~23% Alumina Content For Industrial , Cross-Partition Ring
High Purity Ceramic Random Packing 13% ~23% Alumina Content For Industrial , Cross-Partition Ring
Specifications
Brand Name :
Y&G
MOQ :
Negotiation
Supply Ability :
50000mt per month
Delivery Time :
25-35days
Packaging Details :
In pallets, wooden cases or weave strips as required.
Price :
Negotiable
Material :
Alumina Ceramic
Alumina Content :
13% ~23% or specified
Acid resistance (%) :
>99.6
Size :
6mm,10mm,16mm,25mm,40mm, 50mm, 80mm or as required.
Thickness :
0.5mm-30mm
Purity :
95%-99.7%
Density :
3.6-3.9g/cm3
Application :
Industrial Ceramic
Description

High Purity 95%-99.7% Ceramic Random Packing High Strength High Density

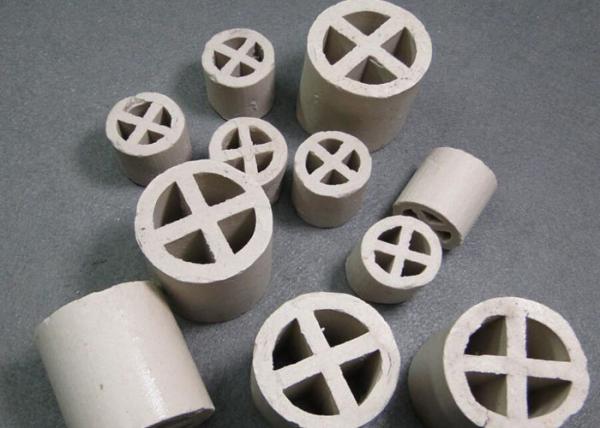

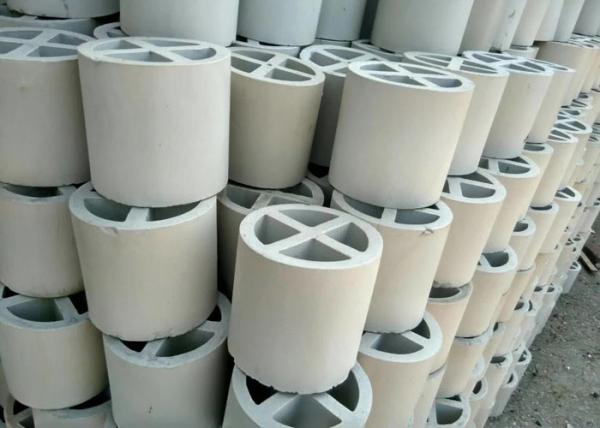

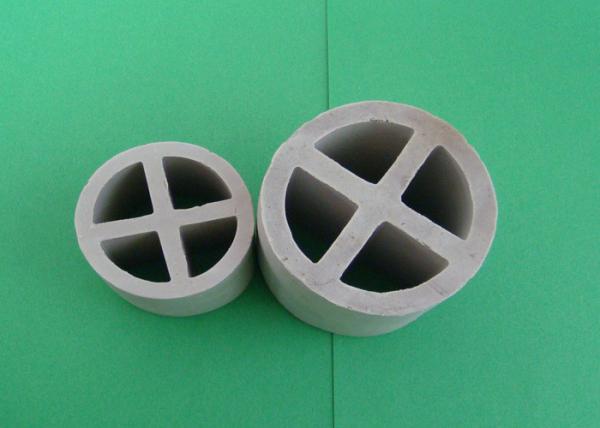

Ceramic Cross-Partition Ring is a packing designed basically from the Raschig Ring with the cross-partitions inside to increase the surface and enhance the transfer efficiency. It is usually used extensively for the supporting packing at the bottom of tower. In general, because this packing normally has very large size, it is applied as ceramic supports for random packings.

Specification of Ceramic Cross Partition Ring:

Specifications (mm ) OD*ID*H*δ
(mm)		 Specific surface area (m2/m3) Void volume (m3/m3)

Bulk number

(n/m3)

Bulk density

(kg/m3)

Dry packing

(factor m-1)
Φ25 25*25*3 160 0.48 41000 660 582
Φ50 50*50*5 145 0.50 6400 600 565
Φ80 80**80*8 120 0.56 1950 820 356
Φ100 100*100*10 110 0.53 1000 850 252
Φ120 120*120*12 75 0.55 370 860 146
Φ150 150*150*15 60 0.58 295 650 101

Features: excellent acid resistant properties, the ability of reisting various inorganic acid, organic acids and organic solvents corrosion(except HF acid), high temperature in a variety of occasions, c can be used at various high temperatures

Application: wide range of applications, can be used for chemical industry, metallurgy, gas and environmental protection industries in the drying tower, absorption tower, cooling tower, scrubber, regeneration tower.
