Specifications
Substrate material :
Silicon
Light incident angle :
45°±15
Reflectance :
>99%
Coating type :
HR@specified wavelength
Model Number :
SG
Brand Name :
Non
Place of Origin :
Guangdong, China
MOQ :
1000
Price :
$1
Spot diameter :
10mm-30mm
Wavelength range :
355um-10600um
Name :
Optical Elements
Description

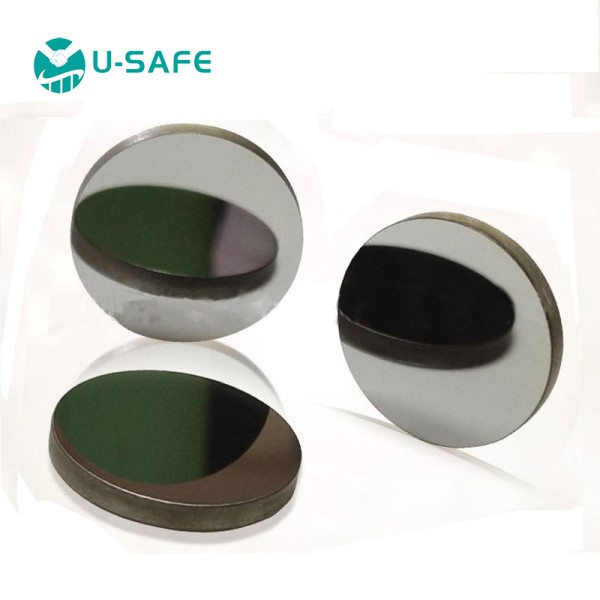

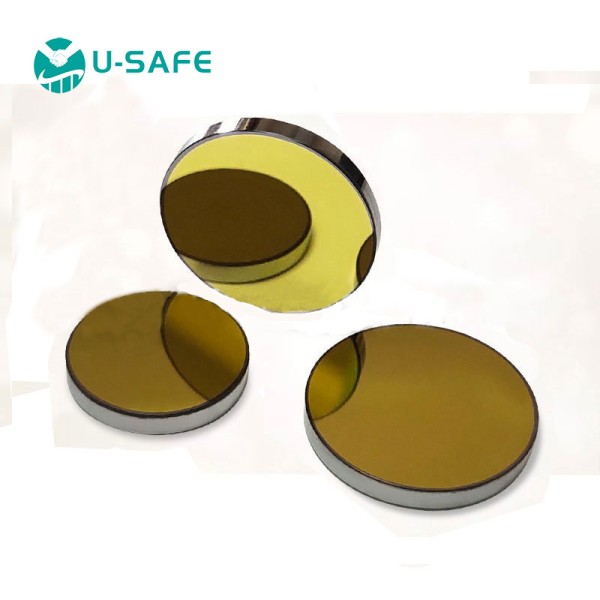

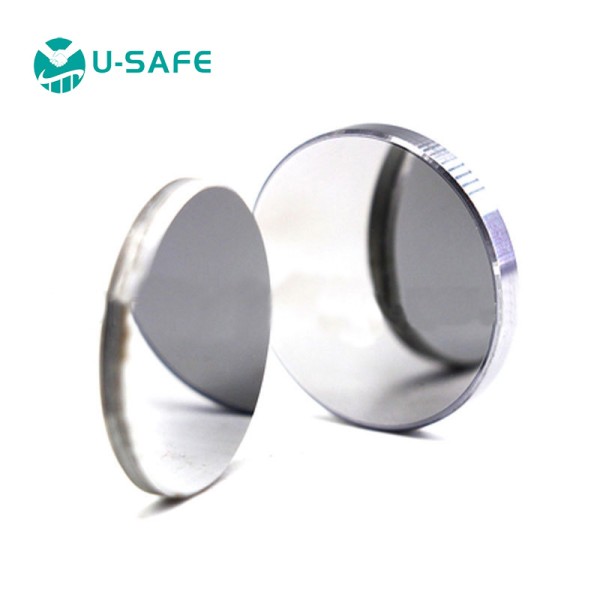

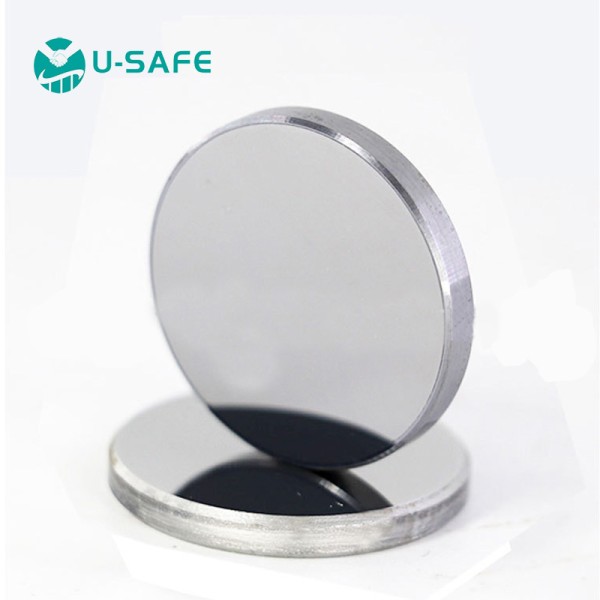

Gold Coating Laser Scanning Mirror with Silicon Substrate and High Reflectance for CO2 Laser Machine
Product Overview

Scanning Galvo Mirrors operate by directing laser beams into two mirrors controlled by computer systems. These mirrors scan along X-axis and Y-axis respectively, enabling precise laser beam deflection and movement of the laser focus with specific power density across marking materials, creating permanent surface marks.

Key Features
  • Silicon substrate construction
  • Superior thermal stability compared to fused silica substrates
  • Grain structure meets OEM specifications
  • Highly reflective coating compatible with YAG, CO2, 1064, and UV lasers
Gold Coating Optical Elements High Reflectance Laser Scanning Mirror With Silicon Substrate Gold Coating Optical Elements High Reflectance Laser Scanning Mirror With Silicon Substrate
Technical Specifications
Model No. Spot Diameter Wavelength Type Light Incident Angle Coating Reflectance
GIAI-AOI-10-1064 10mm 1064um 1064 Laser 45°±15 HR@1064nm R>99%@1064nm
GIAI-AOI-12-1064 12mm 1064um 1064 Laser 45°±15 HR@1064nm R>99%@1064nm
GIAI-AOI-14-1064 14mm 1064um 1064 Laser 45°±15 HR@1064nm R>99%@1064nm
GIAI-AOI-16-1064 16mm 1064um 1064 Laser 45°±15 HR@1064nm R>99%@1064nm
GIAI-AOI-20-1064 20mm 1064um 1064 Laser 45°±15 HR@1064nm R>99%@1064nm
GIAI-AOI-30-1064 30mm 1064um 1064 Laser 45°±15 HR@1064nm R>99%@1064nm
GIAI-AOI-10-532 10mm 532um 532 Laser 45°±15 HR@532nm R>99%@532nm
GIAI-AOI-12-355 12mm 355um 355 Laser 45°±15 HR@355nm R>99%@355nm
GIAI-AOI-12-10600 10mm 10600um CO2 Laser 45°±15 HR@10600nm R>99%@10600nm
Product Gallery
Gold Coating Optical Elements High Reflectance Laser Scanning Mirror With Silicon Substrate Gold Coating Optical Elements High Reflectance Laser Scanning Mirror With Silicon Substrate Gold Coating Optical Elements High Reflectance Laser Scanning Mirror With Silicon Substrate Gold Coating Optical Elements High Reflectance Laser Scanning Mirror With Silicon Substrate
Manufacturing Process
Gold Coating Optical Elements High Reflectance Laser Scanning Mirror With Silicon Substrate
Contact Us

Any questions? Contact our sales team for prompt assistance - you'll receive a reply within 24 hours at the latest!

Gold Coating Optical Elements High Reflectance Laser Scanning Mirror With Silicon Substrate
Our Services
  • R&D / OEM Support
  • Production Process Follow-up
  • Custom Packaging Solutions
  • Pre-Delivery Inspection
  • Flexible Shipping Options: EXW, FOB, FCA, CNF, CIF, Door-to-Door by sea, air, express, or post
