Specifications
Surface quality :
60-40
Square size :
2*2mm~146*146mm
Model Number :
LP
Brand Name :
Non
Place of Origin :
Guangdong, China
MOQ :
1000
Price :
$1
Peak transmittance :
T>94%
Round size :
Diameter 0.3-110mm
Name :
Optical Bandpass Filter
Working wavelength :
200-1100nm
Thickness :
0.3-5.0mm
Description
Customizable Optical Filter with IAD Multilayer Dielectric Coating for 200-1100nm Wavelength Range and T>94% Transmittance
Product Overview

We specialize in customizing longpass filters with high cut-off in the short-wave region and high penetration in the long-wave region according to customer requirements. The wavelength range from ultraviolet to near infrared can be selected arbitrarily, with a transition zone slope between projection and reflection of less than 20 nm.

Manufactured from high-quality quartz glass with vacuum-deposited hard coating, our filters can withstand flame burning tests. These filters are commonly used in laser photon beauty instruments, optical instruments, infrared imaging, and various other applications.

ODM Optical Bandpass Filter 200nm - 1100nm Wavelength Range Optical Long Pass Filter ODM Optical Bandpass Filter 200nm - 1100nm Wavelength Range Optical Long Pass Filter
Technical Specifications
Product Name Long pass filter
Customized Support OEM, ODM
Place of Origin China
Model Number LP
Coating IAD multilayer dielectric coating
Peak Transmittance (Tp) T > 94%
Working Wavelength 200-1100nm
Thickness 0.3-5.0mm
Round Size φ0.3-110mm
Square Size 2*2mm ~ 146*146mm
Clear Aperture > 95%
Surface Quality 60-40
Optical Density (OD) OD2 - OD4
Material B270, D263T, quartz glass, sapphire
Environmental Testing MIL-STD-810F
ODM Optical Bandpass Filter 200nm - 1100nm Wavelength Range Optical Long Pass Filter
Typical Applications
Model Application CWL Blocking Wavelength OD Transmittance
LP-420 Fluorescence detection 420nm >20nm OD3-OD4 430-1100nm@T>94%
LP-430 Optical beauty instrument 430nm >20nm OD3-OD4 440-1100nm@T>94%
LP-480 Optical beauty instrument 480nm >20nm OD3-OD4 490-1100nm@T>94%
LP-560 Optical beauty instrument 560nm >20nm OD3-OD4 570-1100nm@T>94%
LP-590 Optical beauty instrument 590nm >20nm OD3-OD4 600-1100nm@T>94%
LP-640 Optical beauty instrument 640nm >20nm OD3-OD4 650-1100nm@T>94%
LP-690 Optical beauty instrument 690nm >20nm OD3-OD4 700-1100nm@T>94%
LP-720 Infrared imaging 720nm >20nm OD3-OD4 730-1100nm@T>94%
LP-800 Night vision goggles 800nm >20nm OD3-OD4 810-1100nm@T>94%
LP-830 Night vision goggles 830nm >20nm OD3-OD4 840-1100nm@T>94%
LP-880 Anti-red burst camera 880nm >20nm OD3-OD4 890-1100nm@T>94%

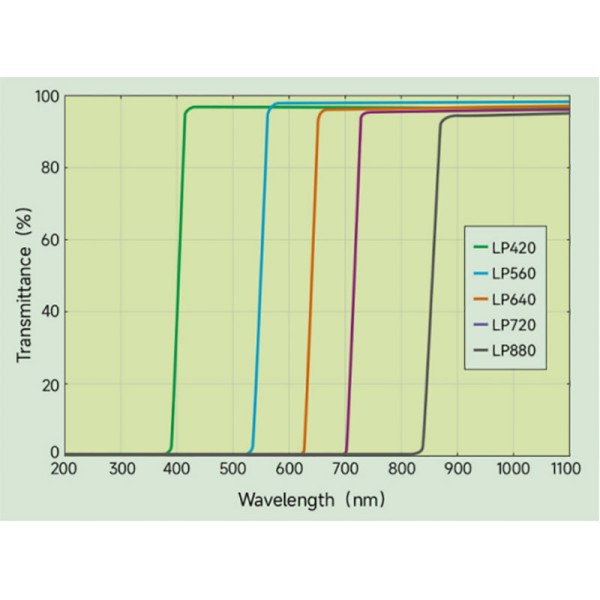

Spectrum Demonstration
ODM Optical Bandpass Filter 200nm - 1100nm Wavelength Range Optical Long Pass Filter

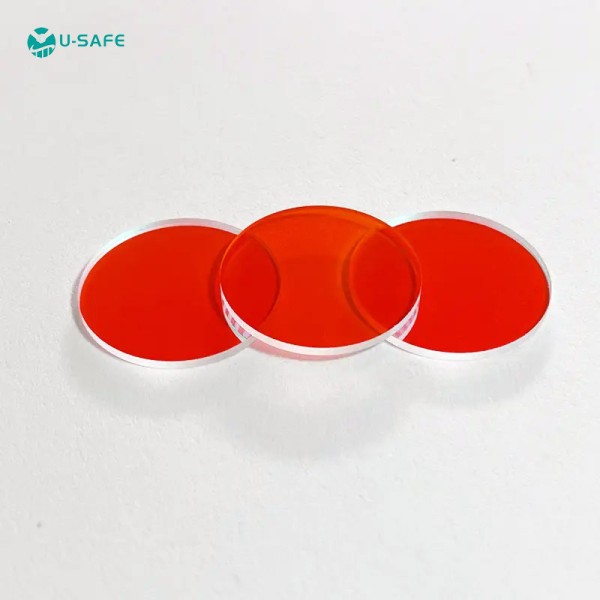

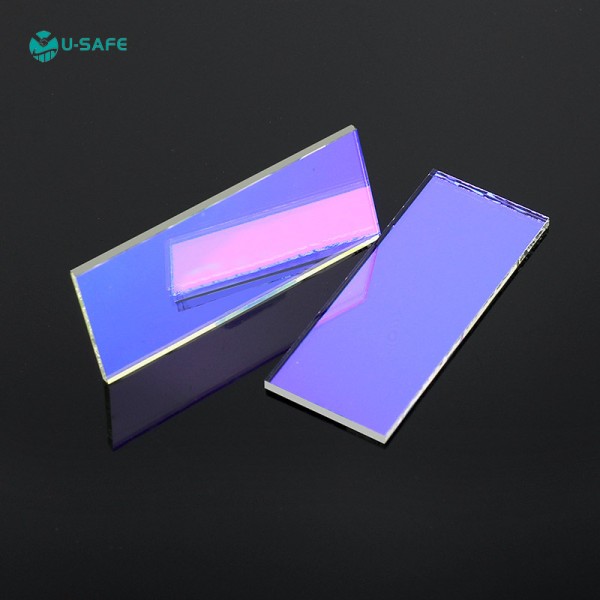

Product Gallery
ODM Optical Bandpass Filter 200nm - 1100nm Wavelength Range Optical Long Pass Filter ODM Optical Bandpass Filter 200nm - 1100nm Wavelength Range Optical Long Pass Filter ODM Optical Bandpass Filter 200nm - 1100nm Wavelength Range Optical Long Pass Filter ODM Optical Bandpass Filter 200nm - 1100nm Wavelength Range Optical Long Pass Filter ODM Optical Bandpass Filter 200nm - 1100nm Wavelength Range Optical Long Pass Filter ODM Optical Bandpass Filter 200nm - 1100nm Wavelength Range Optical Long Pass Filter ODM Optical Bandpass Filter 200nm - 1100nm Wavelength Range Optical Long Pass Filter
Production Process
ODM Optical Bandpass Filter 200nm - 1100nm Wavelength Range Optical Long Pass Filter
Company Profile
Welcome Inquiry!
ODM Optical Bandpass Filter 200nm - 1100nm Wavelength Range Optical Long Pass Filter

Any questions? Welcome to talk with our sales team. You will receive a reply within 24 hours at the latest!

We Support:
  • R&D / OEM services
  • Production process follow-up
  • Custom packaging solutions
  • Inspection before delivery
  • Comprehensive shipping options including EXW, FOB, FCA, CNF, CIF, and Door to Door services by sea, air, express, or post
