Specifications
Focal length :
±2%@587.6nm
Model Number :
PC
Brand Name :
Non
Place of Origin :
Guangdong, China
MOQ :
1000
Price :
$1
Dimensional tolerance :
-0.02~0.1mm
Clear aperture :
>90%
Center thickness :
±0.02~0.1mm
Material :
K 9, optical glass, UV quartz, fluorine
Centering :
30"~3'
Description
Custom Plano Convex Optical Lens Large Diameter 40 Focal Length Optical Instruments Filter
Product Overview

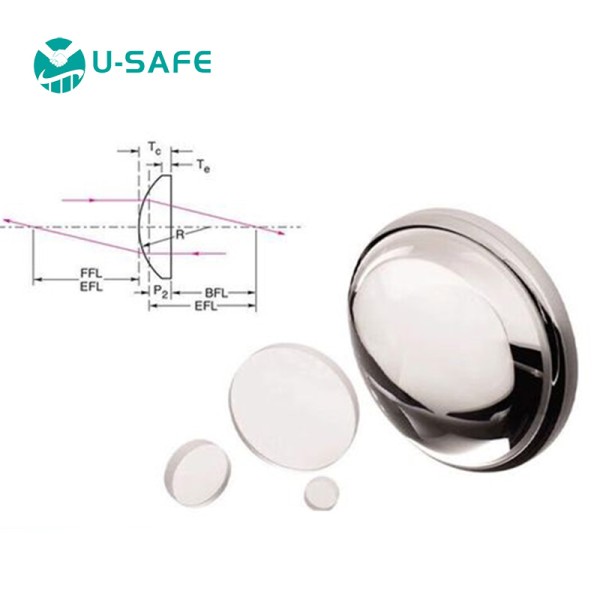

Plano-convex Lenses are ideal for converging parallel light rays to a single point, and these lenses can be used for a variety of applications. They have positive focal lengths and near-optimal profiles for infinitely far and finitely far conjugate applications. Plano-convex lenses can converge a collimated beam at the rear focal point or turn a point source into a collimated beam.

GiAi lenses are usually made of K9 glass, which is coated to increase transmission in the 400-700 nm wavelength range. They are also manufactured using UV quartz, which has excellent transmittance in the UV region and a low coefficient of thermal expansion, and can be coated with a UVAR coat for use in special circumstances.

Custom Large Diameter 40 Plano Convex Lens with AR Coating and UV Quartz Material for Optical Instruments
Custom Large Diameter 40 Plano Convex Lens with AR Coating and UV Quartz Material for Optical Instruments
Technical Specifications
Production Name Plano-convex Lenses
Customized support OEM, ODM
Place of Origin China
Model Number PC
Material K9, optical glass, UV quartz, fluorine
Focal length(f ') ±2%@587.6nm
Dimensional tolerances -0.02~0.1mm
Center thickness tolerance ±0.02~0.1mm
Centering(arcmin) 30"~3'
Power 1~5
Irregularity 0.2~0.5
Surface quality 60-40,40-20
Clear aperture >90%
Coating AR coating
Custom Large Diameter 40 Plano Convex Lens with AR Coating and UV Quartz Material for Optical Instruments

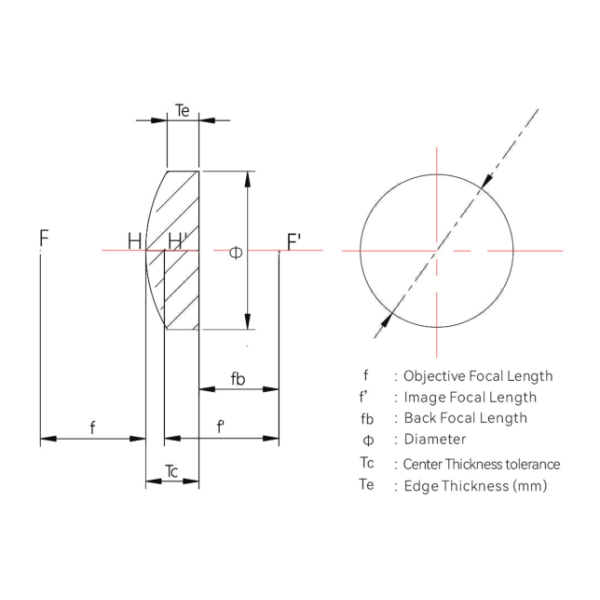

Typical Applications & Dimensions
Diameter Focal length Back focal length Center thickness Edge thickness Radius of curvature
6.0mm 10.0mm 8.4mm 2.5mm 1.5mm 5.2mm
6.0mm 15.0mm 13.6mm 2.1mm 1.5mm 7.7mm
9.0mm 20.0mm 18.3mm 2.5mm 1.5mm 10.3mm
12.7mm 15.0mm 11.6mm 5.1mm 1.8mm 7.7mm
12.7mm 30.0mm 27.9mm 3.2mm 1.8mm 15.5mm
12.7mm 50.0mm 48.3mm 2.6mm 1.8mm 25.8mm
12.7mm 100.0mm 98.6mm 2.2mm 1.8mm 51.5mm
18.0mm 25.0mm 21.39mm 5.5mm 1.8mm 12.9mm
25.0mm 25.4mm 17.7mm 11.7mm 2.5mm 13.1mm
25.0mm 75.0mm 72.3mm 4.1mm 2.02mm 38.6mm
Spectral Performance
Custom Large Diameter 40 Plano Convex Lens with AR Coating and UV Quartz Material for Optical Instruments

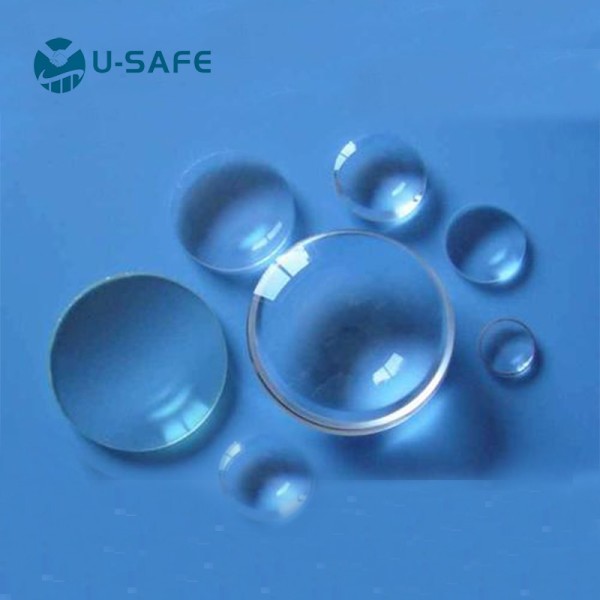

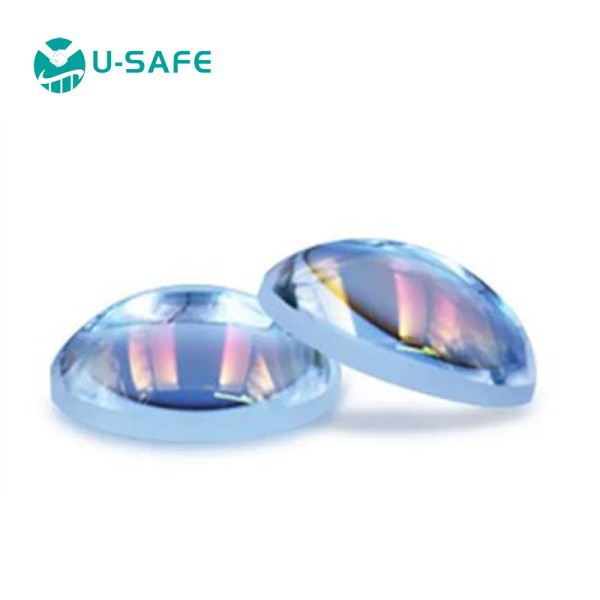

Product Gallery
Custom Large Diameter 40 Plano Convex Lens with AR Coating and UV Quartz Material for Optical Instruments
Custom Large Diameter 40 Plano Convex Lens with AR Coating and UV Quartz Material for Optical Instruments
Custom Large Diameter 40 Plano Convex Lens with AR Coating and UV Quartz Material for Optical Instruments
Manufacturing Process
Custom Large Diameter 40 Plano Convex Lens with AR Coating and UV Quartz Material for Optical Instruments
Company Profile

U-safe Technology Co., Limited (hereinafter shorted as U-SAFE) is legally registered in Hong Kong, which is a B2B trading company trying to build the bridge of business between Chinese factories and all overseas importers, helps you to get the correct products / solution safely, easier and faster. Office is located in IC PARk Shenzhen China for the convenience of closer coordination with factories.

Welcome Inquiry!
Custom Large Diameter 40 Plano Convex Lens with AR Coating and UV Quartz Material for Optical Instruments

Any questions, welcome to talk with our sales, you will be replied in 24 hours at the latest!

We Support:
  • R&D / OEM
  • Production process follow up
  • Customizing package
  • Inspection before delivery
  • Shipping with difference terms, EXW, FOB, FCA, CNF, CIF, DOOR TO DOOR by sea, by air, by express, by post
