Specifications
Dimensional tolerance :
-0.05~0.1mm
Centering :
30"~3'
Center thickness :
±0.03~0.1mm
Focal length :
±2%@587.6nm
Model Number :
LP
Brand Name :
Non
Place of Origin :
Guangdong, China
MOQ :
1000
Price :
$1
Clear aperture :
>90%
Surface quality :
60-40 40-20
Description
Customizable K9 Optical Biconcave Focus Lens Double Concave Quartz K9 Glass Optical Filters

Biconcave Lenses are similar to plano-concave lenses in that they have a negative focal length, but light rays traveling in planarly are diverted outward. The radii of curvature of the two surfaces of the biconcave lens are equal, and they are generally used for beam expansion and to increase the focal length of a system, such as projection. They are generally used for expanding light and increasing the focal length in systems such as projection.

Customizable K9 Optical Biconcave Lens with AR Coating for Precision Optical Applications Customizable K9 Optical Biconcave Lens with AR Coating for Precision Optical Applications

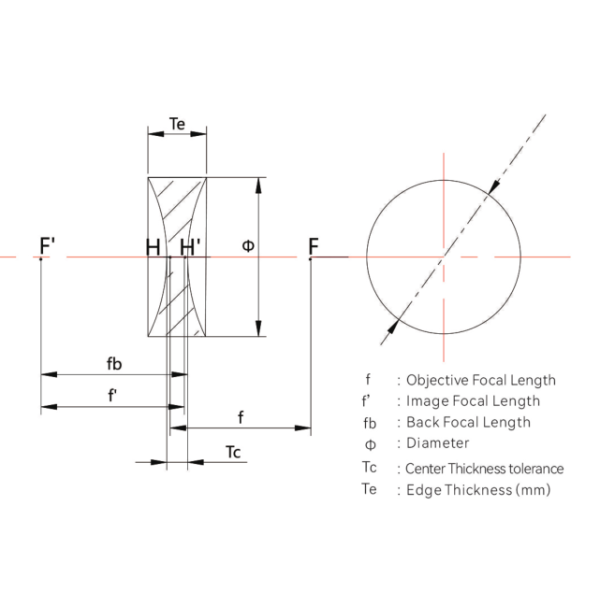

Specification
Production Name Biconcave Lenses
Customized support OEM, ODM
Place of Origin China
Model Number BL
Material K9, optical glass, UV quartz, fluorine
Focal length(f) ±2%@587.6nm
Dimensional tolerances -0.05~0.1mm
Center thickness tolerance ±0.03~0.1mm
Centering(arcmin) 30"~3'
Power 1~5
Irregularity 0.2~0.5
Surface quality 60-40 40-20
Clear aperture >90%
Coating AR coating
Customizable K9 Optical Biconcave Lens with AR Coating for Precision Optical Applications
Typical Application
Diameter Focal length Back focal Length Center thickness Edge thickness Radius of curvature
6.0mm -6.0mm -6.1mm 1.5mm 2.5mm -9.7mm
9.0mm -9.0mm -9.5mm 2.0mm 3.4mm -14.7mm
12.7mm -15.0mm -15.8mm 3.0mm 4.7mm -24.0mm
12.7mm -50.0mm -51.1mm 3.5mm 4.3mm -52.1mm
25.4mm -25.0mm -25.8mm 3.0mm 7.2mm -3.6mm
25.4mm -50.0mm -51.0mm 3.0mm 6.1mm -52.0mm
25.4mm -75.0mm -76.1mm 3.5mm 5.6mm -77.9mm
50.0mm -100.0mm -101.6mm 5.0mm 11.3mm -104.55mm
50.0mm -125.0mm -126.6mm 5.0mm 9.95mm -130.48mm
75.0mm -150.0mm -151.8mm 5.0mm 14.42mm -156.57mm
Spectrum Demonstrate
Customizable K9 Optical Biconcave Lens with AR Coating for Precision Optical Applications
Production Show
Customizable K9 Optical Biconcave Lens with AR Coating for Precision Optical Applications Customizable K9 Optical Biconcave Lens with AR Coating for Precision Optical Applications Customizable K9 Optical Biconcave Lens with AR Coating for Precision Optical Applications
Production Process
Customizable K9 Optical Biconcave Lens with AR Coating for Precision Optical Applications
Company Profile

U-safe Technology Co., Limited (hereinafter shorted as U-SAFE) is legally registered in Hong Kong, which is a B2B trading company trying to build the bridge of business between Chinese factories and all overseas importers, helps you to get the correct products / solution safely, easier and faster. Office is located in IC PARk Shenzhen China for the convenience of closer coordination with factories.

Welcome Inquiry!
Customizable K9 Optical Biconcave Lens with AR Coating for Precision Optical Applications

Any questions, welcome to talk with our sales, you will be replied in 24 hours at the latest!

We support:

  • R&D / OEM
  • Production process follow up
  • Customizing package
  • Inspection before delivery
  • Shipping with difference terms, EXW, FOB, FCA, CNF, CIF, DOOR TO DOOR by sea, by air, by express, by post
