OEM Optical Elements K9 BK7 Material Polarizing Beam Splitter with IAD Multilayer Dielectric Coating
OEM Optical Elements K9 BK7 Material Polarizing Beam Splitter with IAD Multilayer Dielectric Coating
OEM Optical Elements K9 BK7 Material Polarizing Beam Splitter with IAD Multilayer Dielectric Coating
OEM Optical Elements K9 BK7 Material Polarizing Beam Splitter with IAD Multilayer Dielectric Coating
OEM Optical Elements K9 BK7 Material Polarizing Beam Splitter with IAD Multilayer Dielectric Coating
OEM Optical Elements K9 BK7 Material Polarizing Beam Splitter with IAD Multilayer Dielectric Coating
OEM Optical Elements K9 BK7 Material Polarizing Beam Splitter with IAD Multilayer Dielectric Coating
OEM Optical Elements K9 BK7 Material Polarizing Beam Splitter with IAD Multilayer Dielectric Coating
OEM Optical Elements K9 BK7 Material Polarizing Beam Splitter with IAD Multilayer Dielectric Coating
OEM Optical Elements K9 BK7 Material Polarizing Beam Splitter with IAD Multilayer Dielectric Coating
OEM Optical Elements K9 BK7 Material Polarizing Beam Splitter with IAD Multilayer Dielectric Coating
OEM Optical Elements K9 BK7 Material Polarizing Beam Splitter with IAD Multilayer Dielectric Coating
Specifications
Clear aperture :
>95%
Thickness :
0.3-5.0mm
Model Number :
BS
Brand Name :
Non
Place of Origin :
Guangdong, China
Coating type :
IAD multilayer dielectric coating
Square size :
2mm*2mm-146mm*146mm
MOQ :
1000
Price :
$1
Material :
K9, BK7, B270, D263T Quartz glass
Round size :
3mm-110mm
Name :
Optical Elements
Description
K9 BK7 Material Polarizing Beam Splitter with IAD Multilayer Dielectric Coating and MIL-STD-810F Environmental Testing
Product Overview

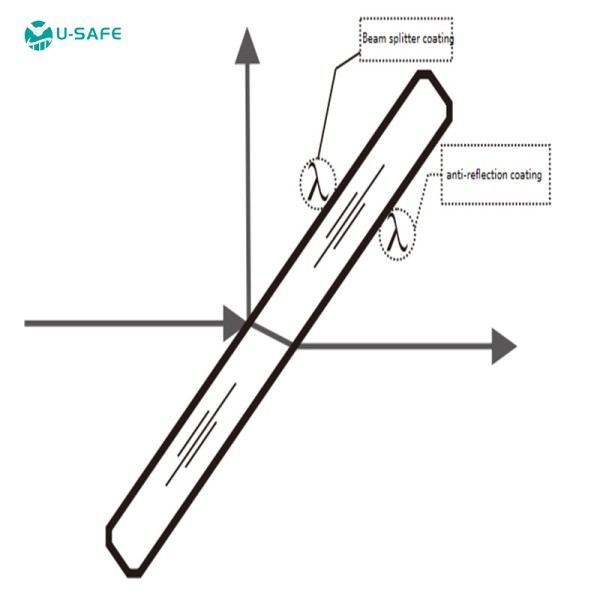

The beam splitter plays a crucial role in separating light source energy and changing light path direction in optical systems. Featuring a relatively simple structural design with minimal light absorption, our beam splitters ensure low loss after light splitting. Key characteristics include a flat all-dielectric coating splitting ratio, a wedge surface of 30 arc minutes on the back, and superior anti-reflection effects to eliminate ghosting and stray light. Ideal for microscopic imaging, machine vision, laser beam splitting, and 3D synthesis applications.
OEM Optical Elements K9 BK7 Material Polarizing Beam Splitter with IAD Multilayer Dielectric Coating OEM Optical Elements K9 BK7 Material Polarizing Beam Splitter with IAD Multilayer Dielectric Coating
Technical Specifications
Product Name Beam Splitter
Customized Support OEM, ODM
Place of Origin China
Model Number BS
Coating IAD multilayer dielectric coating
Anti-reflection Coating Working wavelength, R<0.5%
Beamsplitter Coating 200-1100nm
Material K9, BK7, B270, D263T Quartz glass
Round Size φ3mm-110mm
Square Size 2*2mm~146*146mm
Clear Aperture >95%
Surface Quality 40-20(S/D)
Optical Density (OD) OD2-OD4
Thickness 0.3-5.0mm
Environmental Testing MIL-STD-810F
OEM Optical Elements K9 BK7 Material Polarizing Beam Splitter with IAD Multilayer Dielectric Coating
Typical Applications
Application Size Spectral Wavelength Spectra Ratio
Optical communication LD pumps 2*2*0.3mm 850nm T:R=60:40
Lasers 3*4*0.31mm 532nm T:R=90:10
3D measurement 10*20*0.3mm 500-650nm T:R=50:50
Laser lamp 10*2*1.1mm 465nm T:R=50:50
Fiber optic face inspection 15*18*0.3mm 420-680nm T:R=50:50
Digital microscope 25*35*1.1mm 420-680nm T:R=60:40
Machine vision 84.5*62*1.1mm 420-680nm T:R=50:50
Coaxial light 102*142*1.1mm 420-680nm T:R=70:30

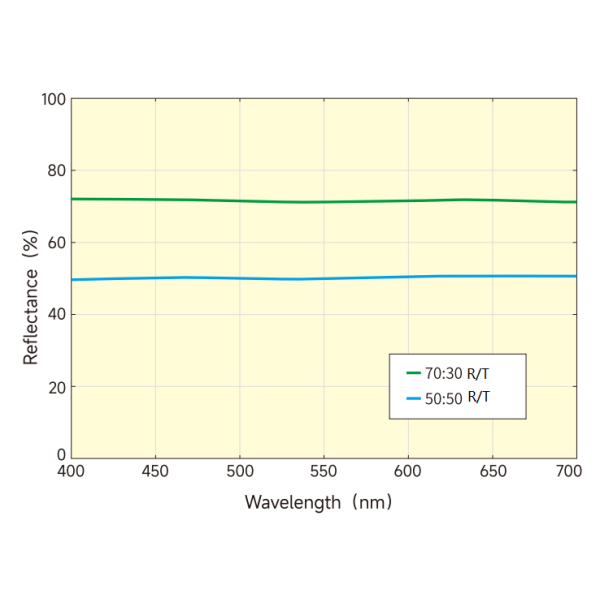

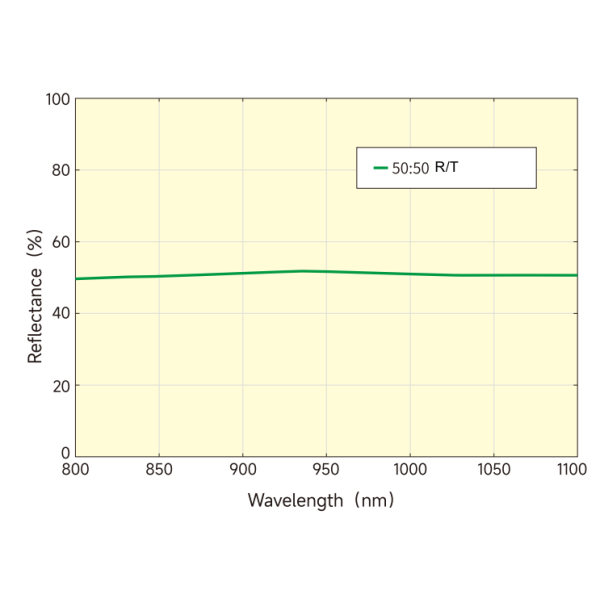

Spectrum Demonstration
OEM Optical Elements K9 BK7 Material Polarizing Beam Splitter with IAD Multilayer Dielectric Coating OEM Optical Elements K9 BK7 Material Polarizing Beam Splitter with IAD Multilayer Dielectric Coating

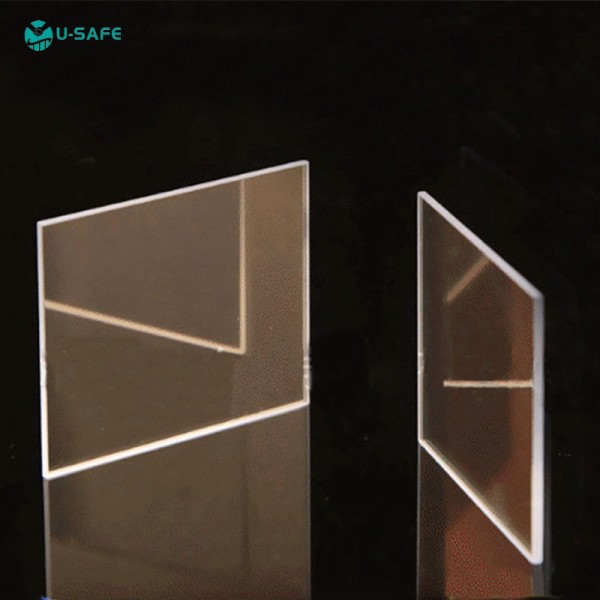

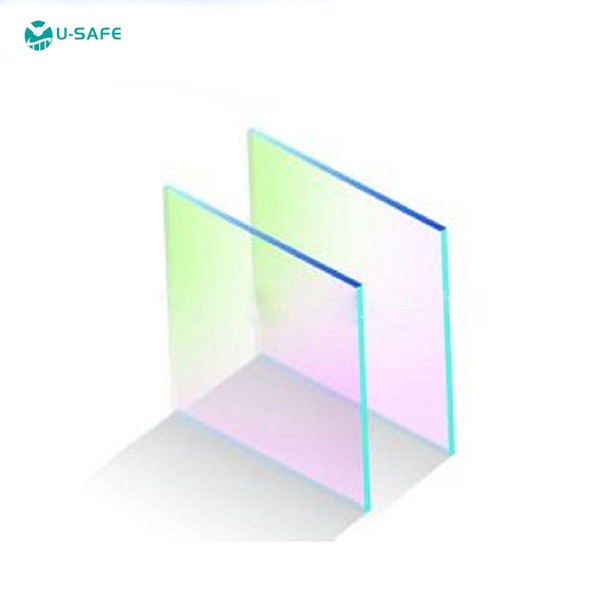

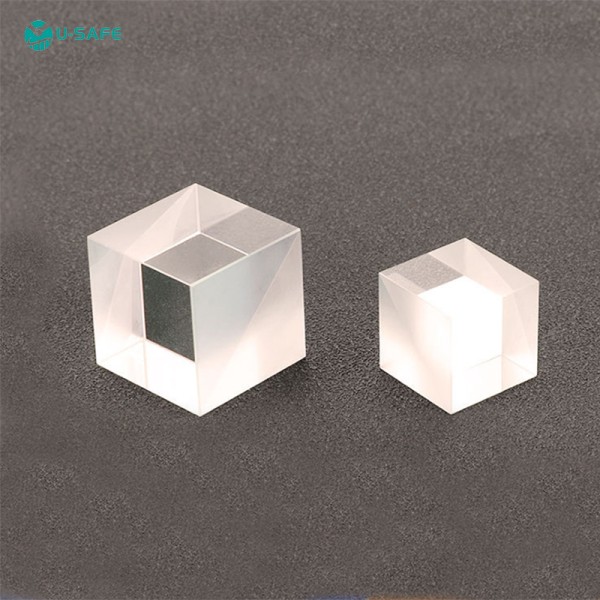

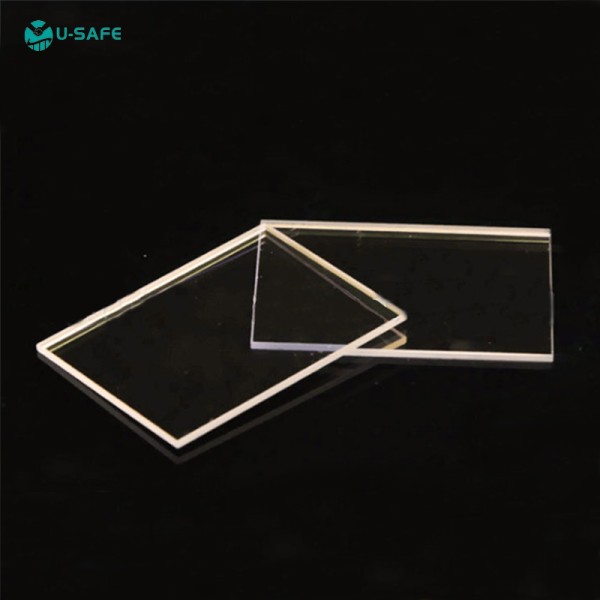

Product Gallery
OEM Optical Elements K9 BK7 Material Polarizing Beam Splitter with IAD Multilayer Dielectric Coating OEM Optical Elements K9 BK7 Material Polarizing Beam Splitter with IAD Multilayer Dielectric Coating OEM Optical Elements K9 BK7 Material Polarizing Beam Splitter with IAD Multilayer Dielectric Coating
Production Process
OEM Optical Elements K9 BK7 Material Polarizing Beam Splitter with IAD Multilayer Dielectric Coating
Company Profile
OEM Optical Elements K9 BK7 Material Polarizing Beam Splitter with IAD Multilayer Dielectric Coating
U-safe Technology Co., Limited (hereinafter shorted as U-SAFE) is legally registered in Hong Kong, operating as a B2B trading company that builds business bridges between Chinese factories and overseas importers. We help you obtain the correct products and solutions safely, easier, and faster. Our office is strategically located in IC Park Shenzhen, China for closer coordination with manufacturing partners.
