Specifications
Coating :
Vacuum Coating
Bandwidth :
1-10um
Clear aperture :
>95%
Peak transmittance :
T>75%
Model Number :
IF
Brand Name :
Non
Place of Origin :
Guangdong, China
MOQ :
1000
Price :
$1
Substrate :
Silicon, Germanium, Magnesium Fluoride, Calcium Fluoride, Sapphire
Working wavelength :
1.8~9.5pm,2.5~25um
Name :
Optical Elements
Description
Customizable High Transmittance Vacuum Coated Infrared Bandpass Filter for Precision Optical Applications
Product Overview

Our far-infrared bandpass filters feature center wavelengths ranging from 2.0 µm to 25 µm, coated with premium materials including silicon, germanium, sapphire, magnesium fluoride, and calcium fluoride. These filters achieve peak transmission exceeding 75% with deep optical density and superior cutoff band performance. Custom solutions are available to meet specific customer requirements.

Primary applications include: infrared thermometers, thermal imaging cameras, gas detection systems, and various industrial sensing applications.

High Transmittance Optical Elements Vacuum Coated Infrared Bandpass Filter For Precision Optical Applications High Transmittance Optical Elements Vacuum Coated Infrared Bandpass Filter For Precision Optical Applications
Technical Specifications
Product Name Far Infrared BandPass Filter
Customized Support OEM, ODM
Place of Origin China
Model Number IF
Coating Vacuum Coating
Substrate Silicon, Germanium, Magnesium Fluoride, Calcium Fluoride, Sapphire
Working Wavelength 1.8~9.5µm, 2.5~25µm
Bandwidth 1-10µm
Peak Transmittance T > 75%
Clear Aperture > 95%
Surface Quality 40-20 (S/D)
Environmental Tests MIL-STD-810F
High Transmittance Optical Elements Vacuum Coated Infrared Bandpass Filter For Precision Optical Applications
Typical Applications
Model Number Application CWL FWHM Transmittance OD
GA-IRB P-4260 CO2 detection 4260nm 90-380nm T > 70% UV~11µm @ T < 1%
GA-IRB P-3900 Methane detector 3900nm 90-170nm T > 70% UV~11µm @ T < 1%
GA-IRB P-4650 Carbon oxide detection 4650nm 225nm T > 70% UV~11µm @ T < 1%
GA-IRB P-5640 Alcohol detection 5640nm 230nm T > 70% UV~11µm @ T < 1%
GA-IRB P-7350 Sulfur oxide detection 7350nm 225nm T > 75% UV~11µm @ T < 1%
GA-IRB P-11000 Temperature detection 11000nm 6000nm T > 70% UV~20µm @ T < 1%

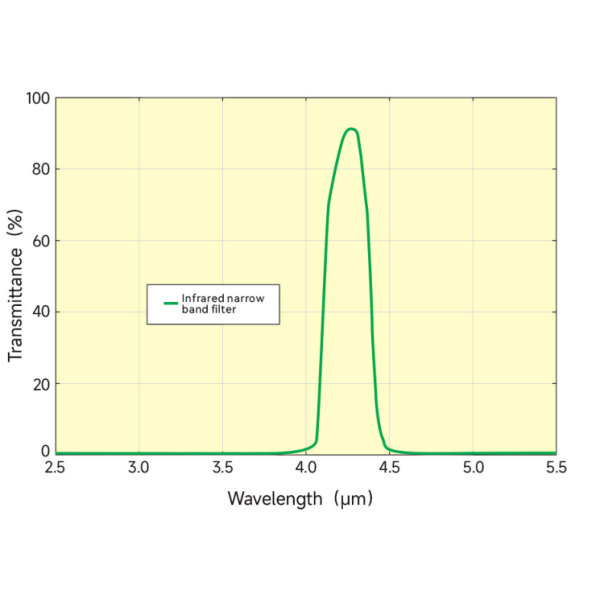

Spectral Performance
High Transmittance Optical Elements Vacuum Coated Infrared Bandpass Filter For Precision Optical Applications
Product Gallery
High Transmittance Optical Elements Vacuum Coated Infrared Bandpass Filter For Precision Optical Applications High Transmittance Optical Elements Vacuum Coated Infrared Bandpass Filter For Precision Optical Applications High Transmittance Optical Elements Vacuum Coated Infrared Bandpass Filter For Precision Optical Applications
Manufacturing Process
High Transmittance Optical Elements Vacuum Coated Infrared Bandpass Filter For Precision Optical Applications
Company Profile

U-safe Technology Co., Limited (hereinafter shorted as U-SAFE) is legally registered in Hong Kong, operating as a B2B trading company that builds business bridges between Chinese factories and international importers. We help clients source the correct products and solutions safely, efficiently, and reliably. Our office is strategically located in IC Park, Shenzhen, China, enabling close coordination with manufacturing partners.

Contact & Support
High Transmittance Optical Elements Vacuum Coated Infrared Bandpass Filter For Precision Optical Applications

Any questions? Welcome to talk with our sales team. You will receive a reply within 24 hours at the latest!

Our Services Include:
  • R&D / OEM Support
  • Production Process Follow-up
  • Custom Packaging Solutions
  • Pre-Delivery Inspection
  • Comprehensive Shipping Options: EXW, FOB, FCA, CNF, CIF, Door to Door by sea, air, express, or post
