UV Fused Silica Quartz Glass OEM ODM Bi Concave Lens With AR Coating
UV Fused Silica Quartz Glass OEM ODM Bi Concave Lens With AR Coating
UV Fused Silica Quartz Glass OEM ODM Bi Concave Lens With AR Coating
UV Fused Silica Quartz Glass OEM ODM Bi Concave Lens With AR Coating
UV Fused Silica Quartz Glass OEM ODM Bi Concave Lens With AR Coating
UV Fused Silica Quartz Glass OEM ODM Bi Concave Lens With AR Coating
UV Fused Silica Quartz Glass OEM ODM Bi Concave Lens With AR Coating
UV Fused Silica Quartz Glass OEM ODM Bi Concave Lens With AR Coating
UV Fused Silica Quartz Glass OEM ODM Bi Concave Lens With AR Coating
UV Fused Silica Quartz Glass OEM ODM Bi Concave Lens With AR Coating
UV Fused Silica Quartz Glass OEM ODM Bi Concave Lens With AR Coating
UV Fused Silica Quartz Glass OEM ODM Bi Concave Lens With AR Coating
Specifications
Material :
K 9, optical glass, UV quartz, fluorine
Center thickness :
±0.03~0.1mm
Clear aperture :
>90%
Centering :
30"~3'
Name :
Fused Silica Quartz Glass
Model Number :
LP
Brand Name :
Non
Place of Origin :
Guangdong, China
MOQ :
1000
Price :
$1
Focal length :
±2%@587.6nm
Dimensional tolerances :
-0.05~0.1mm
Description

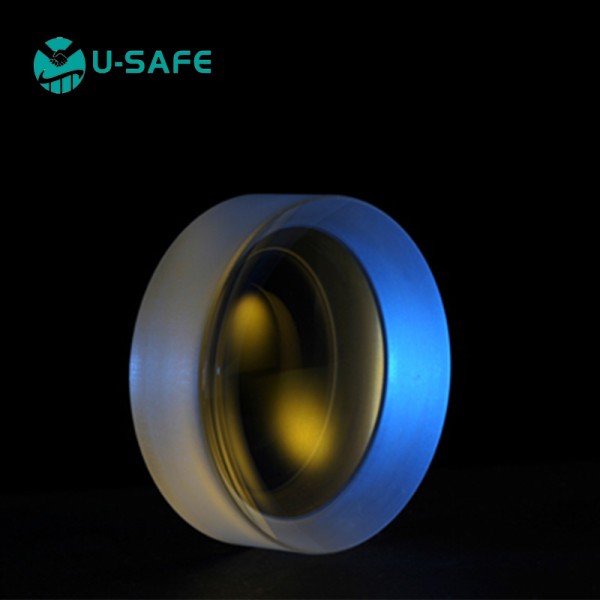

UV Fused Silica Quartz Glass Bi-Concave Lens with AR Coating for High Precision Optical Applications
Product Overview

Plano Concave Lenses are optical components designed to diverge parallel light outward. These lenses feature negative focal lengths and negative spherical aberrations, making them ideal for correcting phase, spherical, coma, and eyepiece variations in other optical systems. Typically, the curved side is oriented toward the far object plane or infinity for optimal performance.

Our UV Fused Silica Quartz Glass Optical Plano Concave Bi-concave Lenses with AR Coating are engineered for fiber laser applications, offering high precision and reliable performance as concave mirror lenses.

UV Fused Silica Quartz Glass OEM ODM Bi Concave Lens With AR Coating UV Fused Silica Quartz Glass OEM ODM Bi Concave Lens With AR Coating

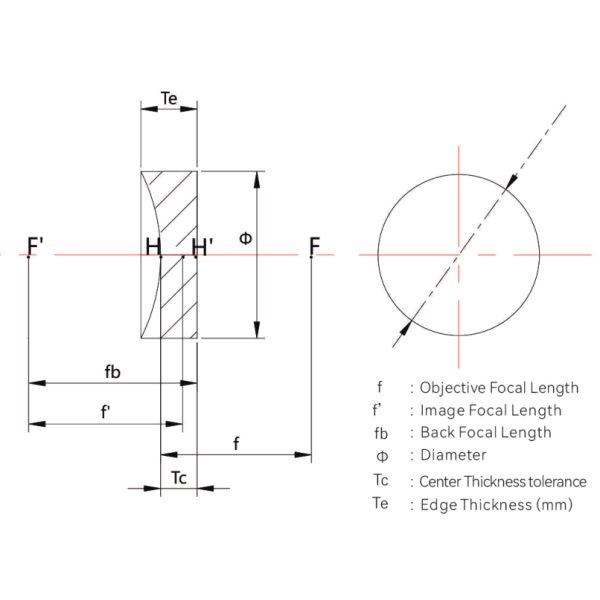

Technical Specifications
Product Name Plano Concave Lenses
Customized Support OEM, ODM
Place of Origin China
Model Number PC
Material K9, Optical Glass, UV Quartz, Fluorine
Focal Length (f') ±2%@587.6nm
Dimensional Tolerances -0.05~0.1mm
Center Thickness Tolerance ±0.03~0.1mm
Centering (arcmin) 30"~3'
Power 1~5
Irregularity 0.2~0.5
Surface Quality 60-40 / 40-20
Clear Aperture >90%
Coating AR Coating
UV Fused Silica Quartz Glass OEM ODM Bi Concave Lens With AR Coating
Typical Applications & Dimensions
Diameter Focal Length Back Focal Length Center Thickness Edge Thickness Radius of Curvature
9.0mm -27.0mm -28.3mm 2.0mm 2.7mm -13.9mm
12.7mm -25.0mm -27.0mm 3.0mm 4.7mm -12.9mm
12.7mm -30.0mm -32.0mm 3.0mm 4.4mm -15.4mm
12.7mm -50.0mm -52.3mm 3.5mm 4.3mm -25.7mm
25.0mm -75.0mm -77.3mm 3.5mm 5.6mm -38.6mm
25.4mm -50.0mm -52.3mm 3.5mm 6.9mm -25.7mm
25.4mm -75.0mm -77.3mm 3.5mm 5.6mm -38.6mm
25.4mm -100.0mm -102.6mm 4.0mm 5.6mm -51.5mm
50.8mm -100.0mm -102.6mm 4.0mm 10.7mm -51.5mm
25.0mm -150.0mm -125.6mm 4.0mm 8.3mm -77.2mm
Spectral Performance
UV Fused Silica Quartz Glass OEM ODM Bi Concave Lens With AR Coating

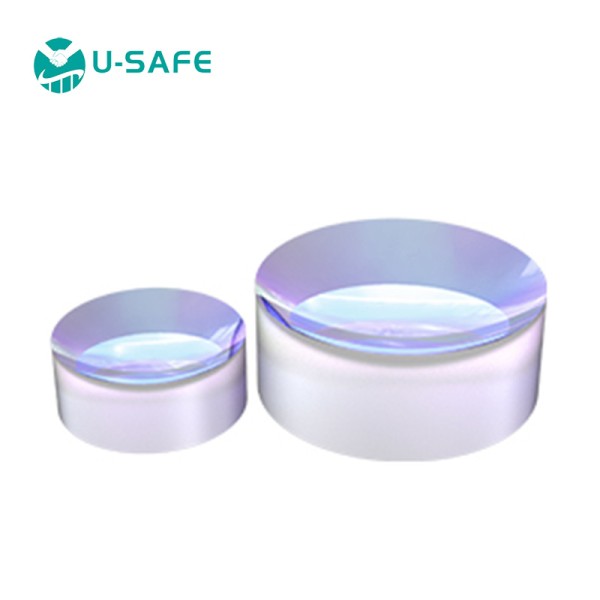

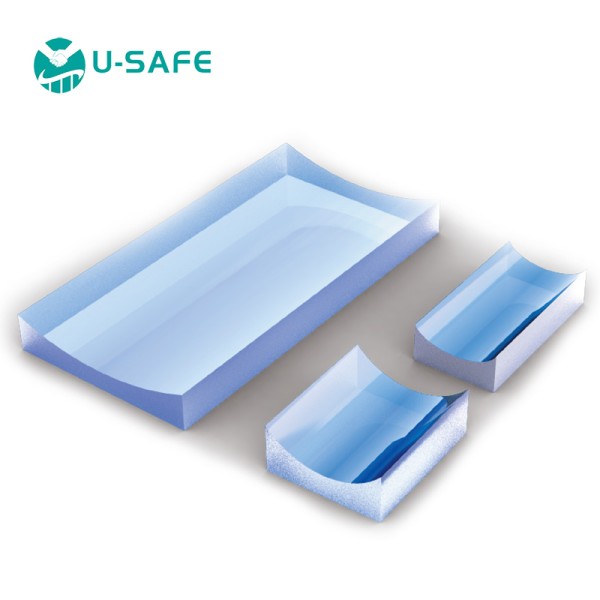

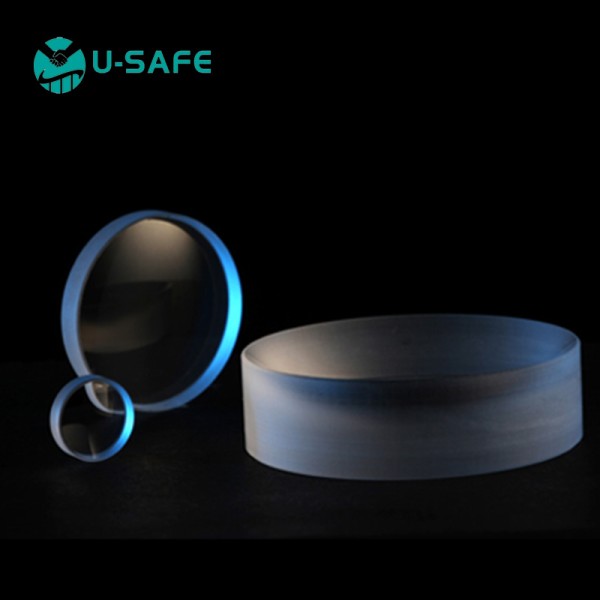

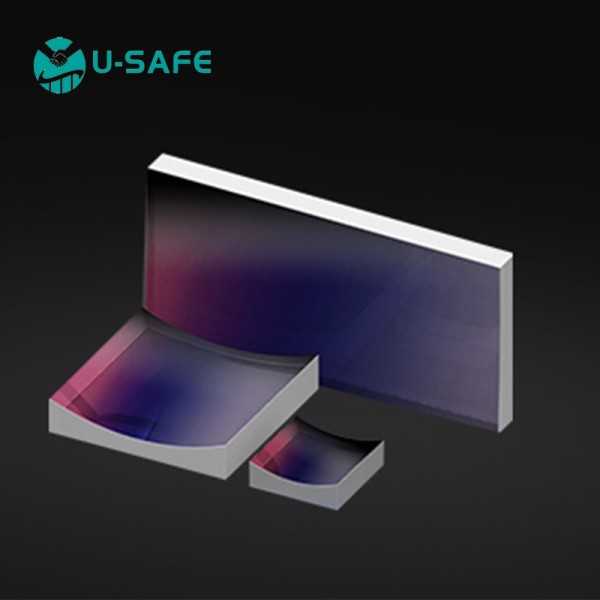

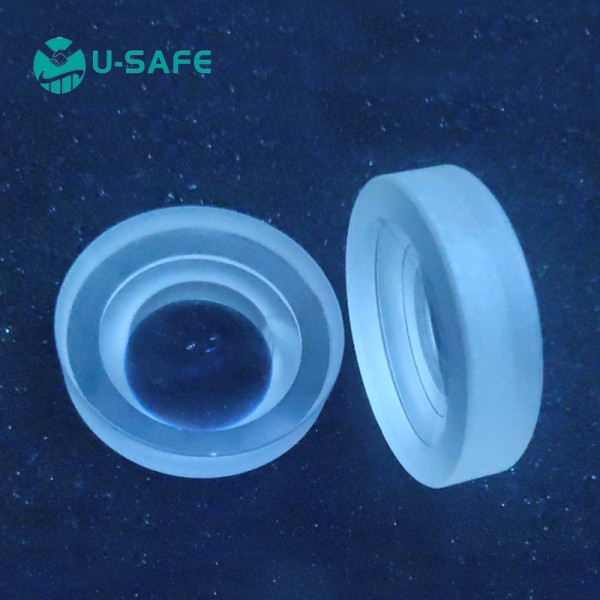

Product Gallery
UV Fused Silica Quartz Glass OEM ODM Bi Concave Lens With AR Coating UV Fused Silica Quartz Glass OEM ODM Bi Concave Lens With AR Coating UV Fused Silica Quartz Glass OEM ODM Bi Concave Lens With AR Coating
Manufacturing Process
UV Fused Silica Quartz Glass OEM ODM Bi Concave Lens With AR Coating
About U-Safe Technology

U-safe Technology Co., Limited (hereinafter referred to as U-SAFE) is legally registered in Hong Kong. As a B2B trading company, we specialize in building business bridges between Chinese factories and international importers. Our mission is to help clients source the correct products and solutions safely, efficiently, and reliably.

Our office is strategically located in IC Park, Shenzhen, China, enabling close coordination with manufacturing partners and ensuring quality control throughout the production process.

Contact Us for Custom Solutions
UV Fused Silica Quartz Glass OEM ODM Bi Concave Lens With AR Coating

Any questions? Our sales team is ready to assist you. We guarantee responses within 24 hours at the latest!

Our Comprehensive Services
  • R&D / OEM Support
  • Production Process Follow-up
  • Custom Packaging Solutions
  • Pre-Delivery Quality Inspection
  • Flexible Shipping Options: EXW, FOB, FCA, CNF, CIF, Door-to-Door by sea, air, express, or post
