Durable Optical Elements Precise Light Beam Splitter Customizable Specifications
Durable Optical Elements Precise Light Beam Splitter Customizable Specifications
Specifications
Clear Aperture :
>95%
Thickness Range :
0.3mm - 5.0mm
Spectral Wavelength :
420-680nm
Material Options :
K9, BK7, B270, D263T Quartz glass
Spectra Ratio :
T:R=50:50
Coating Type :
IAD multilayer dielectric coating
Name :
Optical Elements
Description
Precise Light Separation Beam Splitter with Durable Construction and Customizable Specifications for Optical Systems
Precision Optical Component for Light Path Management

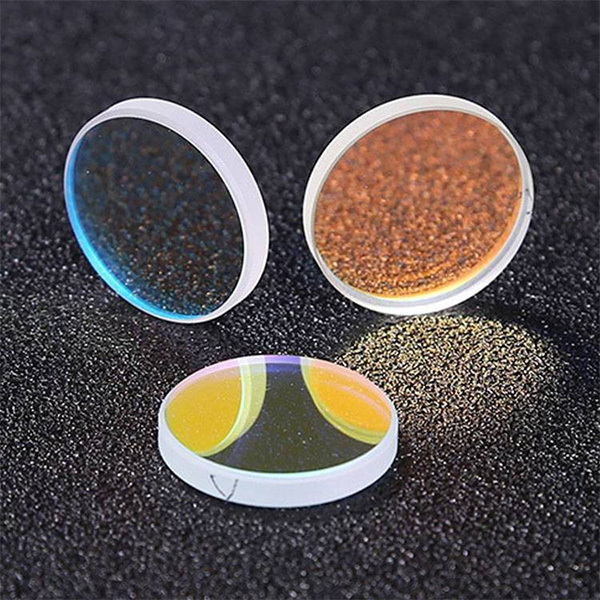

The beam splitter is a crucial optical component designed to separate the energy of a light source and redirect the light path within an optical system. Its relatively simple structure belies its vital role in various applications.
Key Benefits
  • Precise light separation and redirection
  • Enhances optical system efficiency
  • Durable construction for long-term reliability
  • Customizable specifications to meet specific needs
Target Industries and Applications
Optical Communication, Laser Technology, 3D Measurement, Microscopy, Machine Vision, and more.
Product Attributes
FOB Unit: piece
Product MOQ: Contact the supplier
FOB Price: Contact the supplier
Packaging & Delivery: Contact the supplier
General Applications
Application Size Spectral Wavelength Spectra Ratio
Optical communication LD pumps 2*2*0.3mm 850nm T:R=60:40
Lasers 3*4*0.31mm 532nm T:R=90:10
3D measurement 10*20*0.3mm 500-650nm T:R=50:50
Laser lamp 10*2*1.1mm 465nm T:R=50:50
Fiber optic face inspection 15*18*0.3mm 420-680nm T:R=50:50
Digital microscope 25*35*1.1mm 420-680nm T:R=60:40
Machine vision 84.5*62*1.1mm 420-680nm T:R=50:50
Coaxial light 102*142*1.1mm 420-680nm T:R=70:30
Product Parameters
Parameter Value
Coating IAD multilayer dielectric coating
Anti-reflection coating Working wavelength, R<0.5%
Beamsplitter coating Tolerance±2%
Material K9, BK7, B270, D263T Quartz glass
Round shape Φ3.0 mm - Φ110 mm
Square shape 2mm*2mm - 146mm*146mm
Thickness 0.3mm - 5.0mm
Clear aperture >95%
Surface quality 40-20(S/D)
Environmental testing MIL-STD-810F
