Specifications
Transmittance average :
T>95%
Thickness range :
0.3-5.0mm
Clear aperture :
>95%
Coating type :
IAD multilayer dielectric coating
Model Number :
DM
Brand Name :
Non
Place of Origin :
Guangdong, China
MOQ :
1000
Price :
$1
Size range :
2*2~146*146mm, 3~110mm
Reflection average :
R>95%
Description
High-Performance Dichroic Mirror with IAD Multilayer Dielectric Coating and T>95% Transmittance for Precision Optical Applications
Product Overview

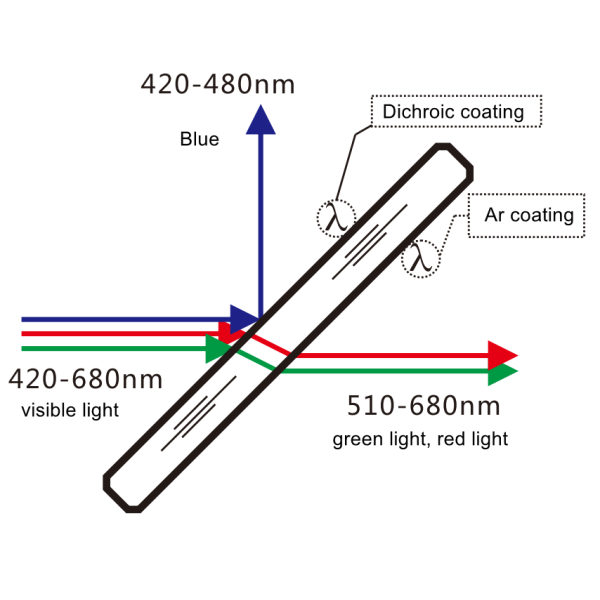

Dichroic mirrors separate light sources into specific spectrums and change the light path direction of part of the spectrum when incident at 45 degrees or large angles. These components are essential in sensor systems including fluorescence microscope systems, enzyme label instruments, projection light engine systems, laser lights, optical instrument beam splitters, and video eyes.

Key Features
  • High transmittance performance
  • Accurate wavelength positioning
  • Minimal light energy loss
  • Enables effective device structure reduction
  • Facilitates multifunctional optical path implementation

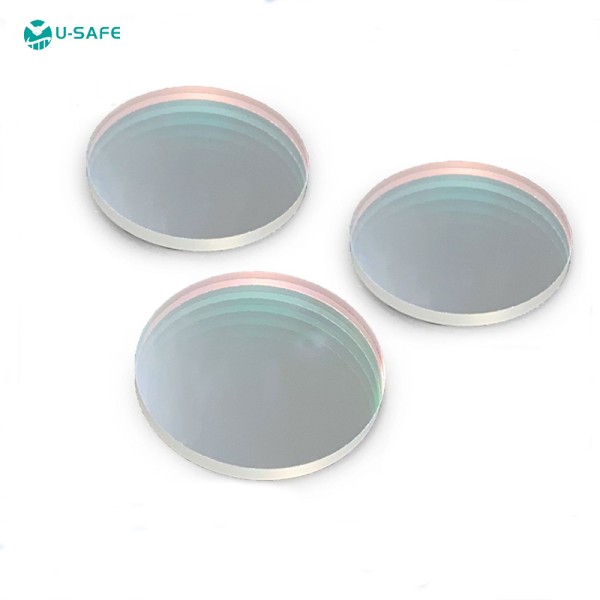

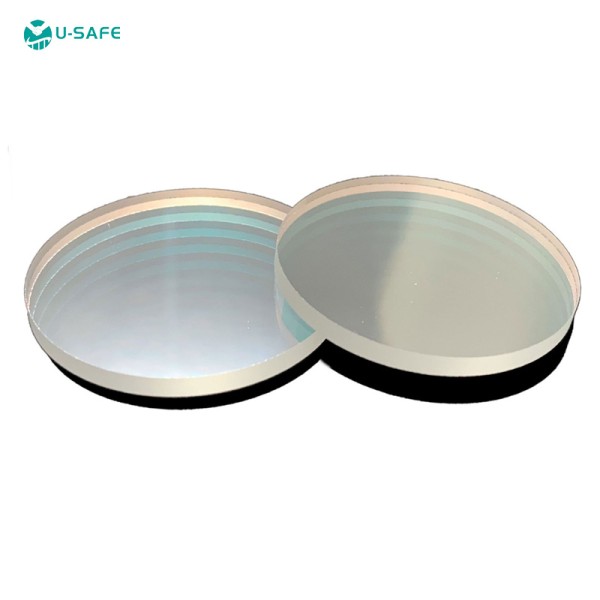

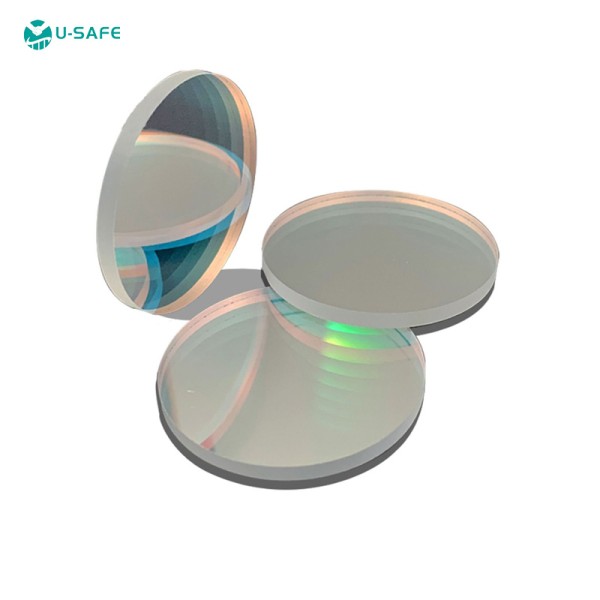

Product Images
High Transmittance Performance Optical Elements Precision Dichroic Mirror With IAD Multilayer Dielectric Coating High Transmittance Performance Optical Elements Precision Dichroic Mirror With IAD Multilayer Dielectric Coating
Technical Specifications
Parameter Specification
Product Name Dichroic Mirror
Customized Support OEM, ODM
Place of Origin China
Model Number DM
Coating IAD Multilayer Dielectric Coating
S1 AR Coating 420-680nm@R<1%
S2 Dichroic Coating
Transmittance Average in Working Band T>95%
Reflection Average in Working Band R>95%
Size 2×2~146×146mm, φ3~110mm
Thickness 0.3-5.0mm
Clear Aperture >95%
Surface Quality 40-20(S/D)
Environmental Testing MIL-STD-810F
High Transmittance Performance Optical Elements Precision Dichroic Mirror With IAD Multilayer Dielectric Coating
Typical Applications
Model Application CWL Transmission Wavelength Reflection Wave AR Coating Wavelength
GA-DMSP-594 Micro Projection 594 430-588nm 600-650nm 420-680nm
GA-DMSP-486 Micro Projection 486 430-470nm 494-650nm 420-680nm
GA-DM P-675 Fluorescence Microscope 675 690-800nm 610-650nm 420-680nm
GA-DMLP-495 Fluorescence Microscope 495 510-680nm 450-480nm 420-680nm
GA-DMSP-560 Fluorescence Microscope 560 530-550nm 570-590nm 420-680nm
GA-DMSP-583 Stage Lighting 583 420-560nm 600-650nm 420-680nm
GA-DMLP-486 Stage Lighting 486 490-650nm 430-470nm 420-680nm

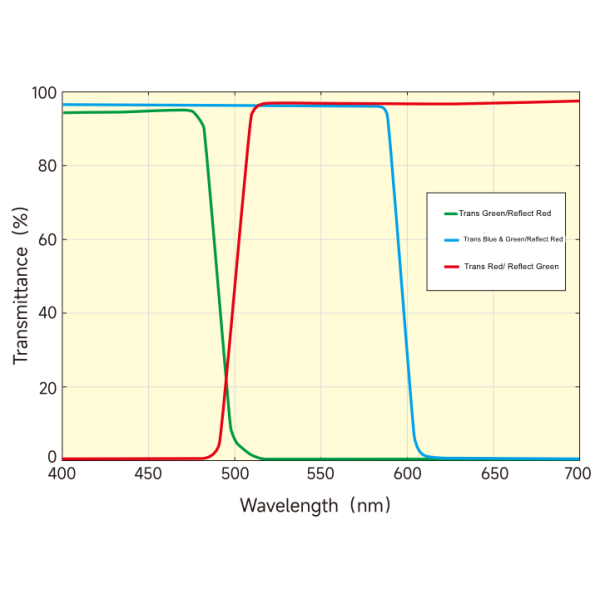

Spectral Performance
High Transmittance Performance Optical Elements Precision Dichroic Mirror With IAD Multilayer Dielectric Coating High Transmittance Performance Optical Elements Precision Dichroic Mirror With IAD Multilayer Dielectric Coating

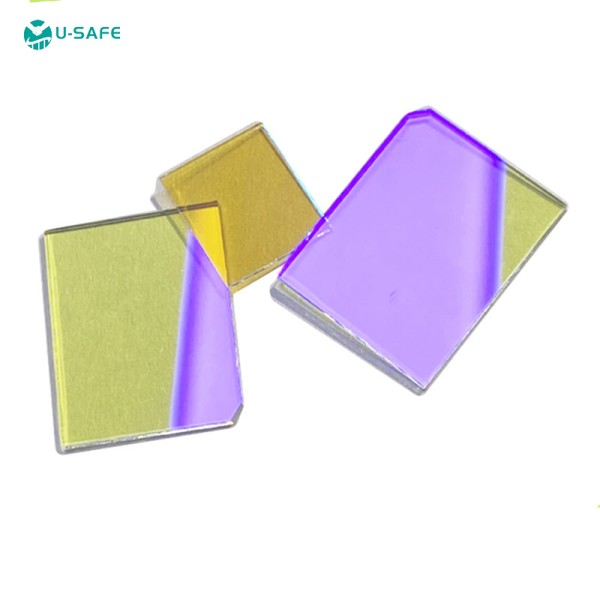

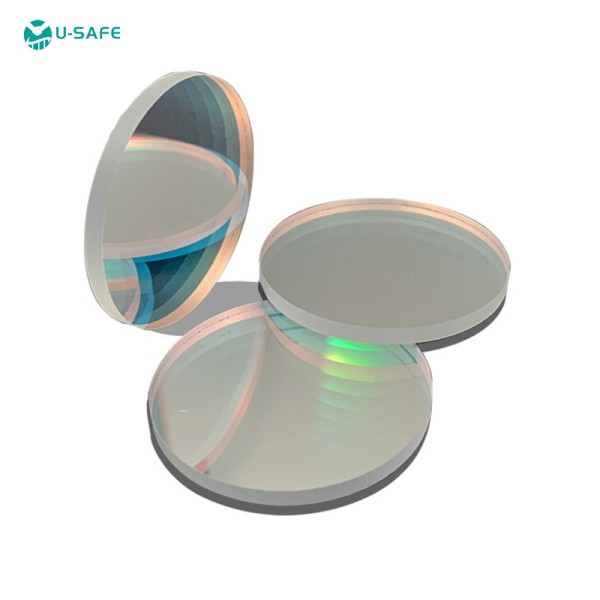

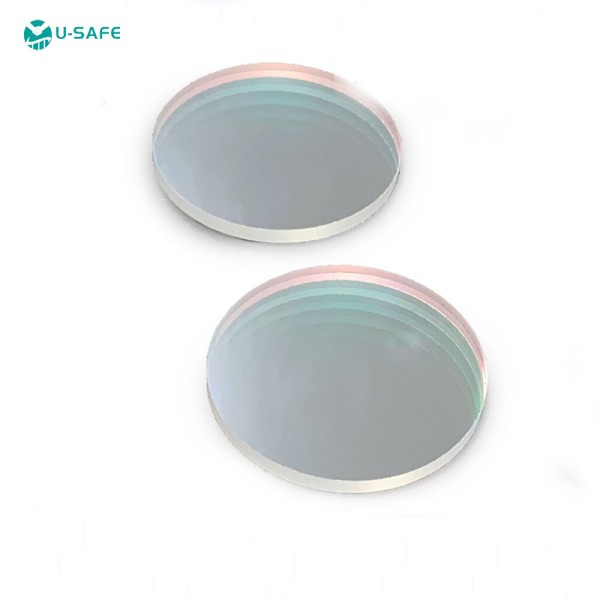

Product Gallery
High Transmittance Performance Optical Elements Precision Dichroic Mirror With IAD Multilayer Dielectric Coating High Transmittance Performance Optical Elements Precision Dichroic Mirror With IAD Multilayer Dielectric Coating High Transmittance Performance Optical Elements Precision Dichroic Mirror With IAD Multilayer Dielectric Coating

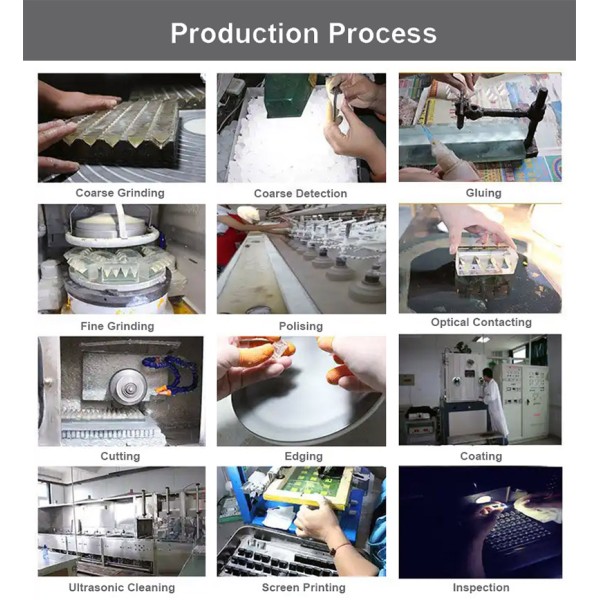

Manufacturing Process
High Transmittance Performance Optical Elements Precision Dichroic Mirror With IAD Multilayer Dielectric Coating
Company Profile

U-safe Technology Co., Limited (hereinafter shorted as U-SAFE) is legally registered in Hong Kong, which is a B2B trading company trying to build the bridge of business between Chinese factories and all overseas importers, helps you to get the correct products / solution safely, easier and faster. Office is located in IC Park Shenzhen China for the convenience of closer coordination with factories.

Welcome Inquiry!
High Transmittance Performance Optical Elements Precision Dichroic Mirror With IAD Multilayer Dielectric Coating

Any questions, welcome to talk with our sales, you will be replied in 24 hours at the latest!

We Support:
  • R&D / OEM Services
  • Production Process Follow-up
  • Customizing Package Solutions
  • Inspection Before Delivery
  • Shipping with Various Terms: EXW, FOB, FCA, CNF, CIF, Door to Door by sea, by air, by express, by post
