UL2919 25P×28AWG Semiconductor Cable Tinned Copper Stranded With SR-PVC Insulation / PVC Jacket
UL2919 25P×28AWG Semiconductor Cable Tinned Copper Stranded With SR-PVC Insulation / PVC Jacket
UL2919 25P×28AWG Semiconductor Cable Tinned Copper Stranded With SR-PVC Insulation / PVC Jacket
UL2919 25P×28AWG Semiconductor Cable Tinned Copper Stranded With SR-PVC Insulation / PVC Jacket
Specifications
Certification :
RoHS Reach
Insulation :
SR-PVC
Packing :
Packed in rolls or reels
Place of Origin :
China
Application :
Semiconductor fabrication, testing, and research laboratories
Model Number :
UL2919
MOQ :
1000m
Price :
To be negotiated
SP :
1300332
Conductor :
Tinned Copper Stranded
Supply Ability :
100km per day
Payment Terms :
T/T,L/C,Western Union
Voltage :
30V
Brand Name :
Shineplus
Temperature :
80℃
Name :
Semiconductor Cable
Jacket :
PVC
Delivery Time :
3-4 Weeks
Packaging Details :
Packed in rolls or reels
Description

UL2919 25P×28AWG Semiconductor Cable Tinned Copper Stranded with SR-PVC Insulation and PVC Jacket

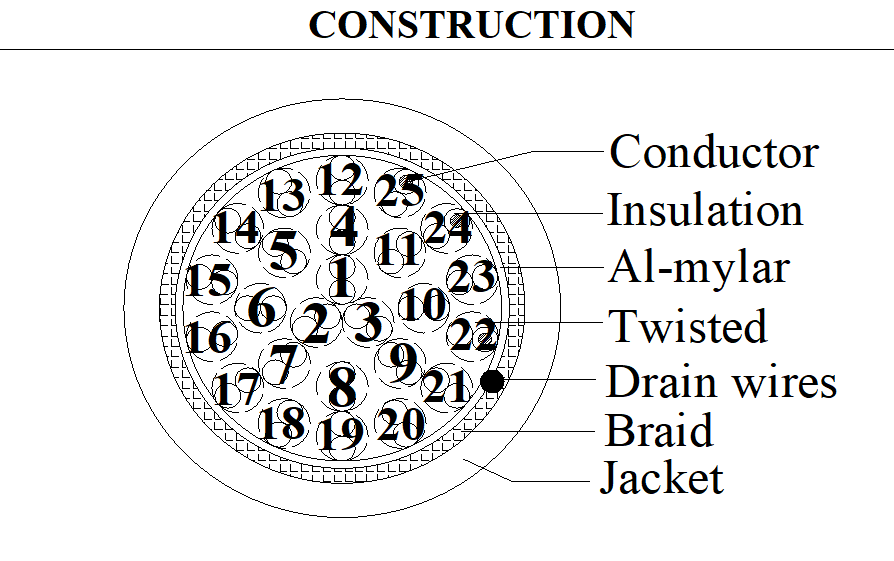

ITEM 25P×28AWG(7/0.127T)
CONDUCTOR Material Tinned copper stranded
Size 7/0.127±0.008mm
O.D.(Ref) 0.38mm
INSULATION Material SR-PVC
Min.average thickness 0.23mm
Min.thickness at any point 0.16mm
O.D. 0.85±0.05mm
TWISTED O.D. 1.70mm
CABLING Material Al-mylar(face out)
Assembly 25P×28AWG(7/0.127T)
DRAIN WIRE Material Tinned copper stranded
Size 7/0.16±0.008mm
BRAID Material Tinned copper
Size 24/10/0.12mm(85%)
JACKET Material PVC
Min.average thickness 0.76mm
Min.thickness at any point 0.61mm
O.D. 10.70±0.25mm

Application:Semiconductor fabrication, testing, and research laboratories

ELECTRICAL CHARACTERISTICS

Rated voltage:30V

Rated temperature:80℃

Max. DC conductor resistance(20℃):239Ω/km

Dielectric Strength AC: 1.5kV/1min

Insulation Resistance(20℃): Min.5MΩ*km

PHYSICAL PROPERTIES

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:113±1℃×168h

Percent of original tensile strength:≥70%

Percent of original elongation:≥65%

UL2919 25P×28AWG Semiconductor Cable Tinned Copper Stranded With SR-PVC Insulation / PVC Jacket
