UL20276 25P×24AWG Solid Bare Copper Cable With PE Insulation / PVC Jacket
UL20276 25P×24AWG Solid Bare Copper Cable With PE Insulation / PVC Jacket
UL20276 25P×24AWG Solid Bare Copper Cable With PE Insulation / PVC Jacket
UL20276 25P×24AWG Solid Bare Copper Cable With PE Insulation / PVC Jacket
Specifications
Temperature :
80℃
Name :
Bare Copper Cable
Certification :
RoHS Reach
Jacket :
PVC
Payment Terms :
T/T,L/C,Western Union
Insulation :
PE
Price :
To be negotiated
Delivery Time :
3-4 Weeks
Packing :
Packed in rolls or reels
Application :
Semiconductor fabrication, testing, and research laboratories
SP :
1400068
Brand Name :
Shineplus
Model Number :
UL20276
Conductor :
Solid Bare Copper
MOQ :
1000m
Place of Origin :
China
Supply Ability :
100km per day
Packaging Details :
Packed in rolls or reels
Voltage :
30V
Description

UL20276 25P×24AWG Solid Bared Copper Semiconductor Cable with PE Insulation and PVC Jacket

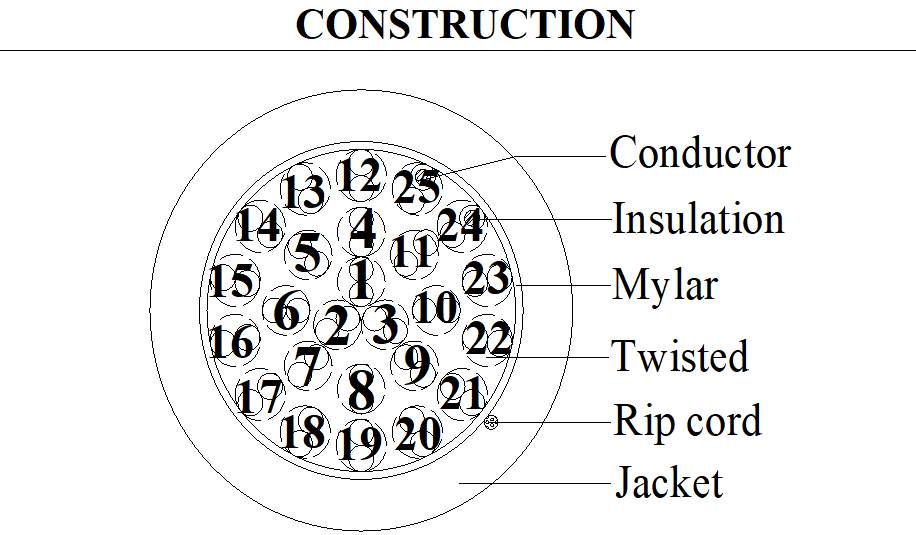

ITEM 25P×24AWG(1/0.50B)
CONDUCTOR Material Solid bared copper
Size 1/0.50±0.015mm
O.D.(Ref) 0.50mm
INSULATION Material PE
Min.average thickness 0.20mm
Min.thickness at any point 0.15mm
O.D. 0.94±0.08mm
TWISTED O.D.(Ref) 1.88mm
CABLING Material Mylar
Assembly 25P×24AWG(1/0.50B)
JACKET Rip cord Nylon
Material PVC
Min.average thickness 0.70mm
Min.thickness at any point 0.56mm
O.D. 10.70±0.30mm

Application:Semiconductor fabrication, testing, and research laboratories

ELECTRICAL CHARACTERISTICS

Rated voltage:30V

Rated temperature:80℃

Max. DC conductor resistance(20℃):93.8Ω/km

Dielectric Strength AC: 0.7kV/1min

Nom. impedance(D): 100±15Ω(1~16MHz)

Insulation Resistance(at 20℃):5000MΩ*km Min

Mutual capacitance: 6.6nF/100m Nom. @ 1KHz

PHYSICAL PROPERTIES

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:113±1℃×168h

Percent of original tensile strength:≥70%

Percent of original elongation:≥65%
