11P×20AWG Tinned Copper Stranded Cable , Semiconductor Wire 400V
11P×20AWG Tinned Copper Stranded Cable , Semiconductor Wire 400V
11P×20AWG Tinned Copper Stranded Cable , Semiconductor Wire 400V
11P×20AWG Tinned Copper Stranded Cable , Semiconductor Wire 400V
Specifications
Certification :
RoHS Reach
Model Number :
NOUL
Conductor :
Tinned Copper Stranded
Application :
Semiconductor fabrication, testing, and research laboratories
Temperature :
105℃
Place of Origin :
China
Packing :
Packed in rolls or reels
Name :
Copper Stranded Cable
Supply Ability :
100km per day
Packaging Details :
Packed in rolls or reels
Voltage :
400V
SP :
2202872
MOQ :
1000m
Price :
To be negotiated
Payment Terms :
T/T,L/C,Western Union
Insulation :
ETFE / FEP
Delivery Time :
3-4 Weeks
Brand Name :
Shineplus
Jacket :
PVC / FEP
Description

(4C×16AWG+3C×24AWG)+(4C×24AWG)×4+(1P×28AWG)×7+11P×20AWG Tinned Copper Stranded Semiconductor Cable

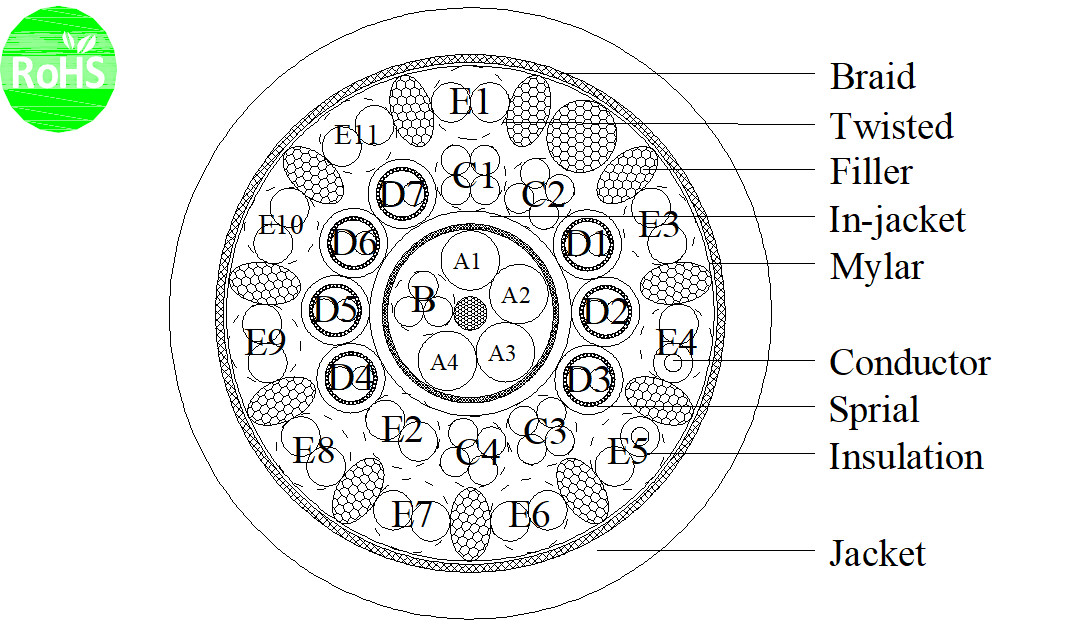

Construction
Conductor Tinned copper stranded
Cross section A:4C×16AWG B:3C×24AWG C:(4C×24AWG)×4 D:(1P×28AWG+S+In-jacket)×7 E:11P×20AWG
Construction 54/0.18mm 7/0.20mm 7/0.20mm 7/0.127mm 7/0.32mm
Strand Dia. 1.57mm 0.60mm 0.60mm 0.38mm 0.96mm
Insulation ETFE ETFE ETFE FEP ETFE
Nom.Thickness 0.13mm 0.13mm 0.13mm 0.13mm 0.10mm
Insulation Dia. 1.90±0.10mm 0.90±0.05mm 0.90±0.05mm 0.80±0.05mm 1.30±0.10mm
Insulation colour color code
Twisted / 3C×24AWG 4C×24AWG 1P×28AWG 11P×20AWG
Filler Cotton / / /
Drain /
Materail /
Shield Braid:Tinned copper Sprial:Tinned copper
Size 24/11/0.08mm,Min.90% 54±2/0.08mm,Min.90%
Jacket PVC FEP
Nom.Thickness 0.30mm 0.15mm
Outer Dia. 6.20±0.25mm 2.20±0.15mm
Colour Black Matt Gray
Assembly-1 (4C×16AWG+(3C×24AWG)+B+In-jacket
Assembly-2 Assembly-1+(4C×24AWG)×4+(1P×28AWG+DP+In-jacket)×7+E2
Filler Cotton
Materail Mylar
Assembly-3 Assembly-1+Assembly-2+10P×20AWG+F+M
Braid Tinned copper
Size 36/11/0.16mm,Min.90%
Tape /
Jacket PVC
Nom.Thickness 1.00mm
Min.Thickness 0.80mm
Outer Dia. 18.50±0.80mm
Colour Black Matt

Application:Semiconductor fabrication, testing, and research laboratories

ELECTRICAL CHARACTERISTICS

Rated voltage:400V

Rated temperature:105℃

Max. DC conductor resistance(20℃):A:14.6Ω/km,B&C:94.2Ω/km,D:239Ω/km,E:36.7Ω/km

Dielectric Strength AC: 1.50kV/1min

Nom. impedance(D): 80Ω

PHYSICAL PROPERTIES

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:113±1℃×168h

Percent of original tensile strength:≥70%

Percent of original elongation:≥65%
