25P×24AWG Tinned Copper Stranded Semiconductor Wire UL2464 With SR-PVC Insulation / PVC Jacket
25P×24AWG Tinned Copper Stranded Semiconductor Wire UL2464 With SR-PVC Insulation / PVC Jacket
25P×24AWG Tinned Copper Stranded Semiconductor Wire UL2464 With SR-PVC Insulation / PVC Jacket
25P×24AWG Tinned Copper Stranded Semiconductor Wire UL2464 With SR-PVC Insulation / PVC Jacket
Specifications
Temperature :
-30～80℃
Name :
Semiconductor Wire
Supply Ability :
100km per day
Certification :
RoHS Reach
MOQ :
1000m
Jacket :
PVC
Model Number :
UL2464
Insulation :
SR-PVC
Delivery Time :
3-4 Weeks
Packing :
Packed in rolls or reels
Application :
Semiconductor fabrication, testing, and research laboratories
SP :
1502518
Brand Name :
Shineplus
Payment Terms :
T/T,L/C,Western Union
Price :
To be negotiated
Conductor :
Tinned Copper Stranded
Place of Origin :
China
Packaging Details :
Packed in rolls or reels
Voltage :
300V
Description

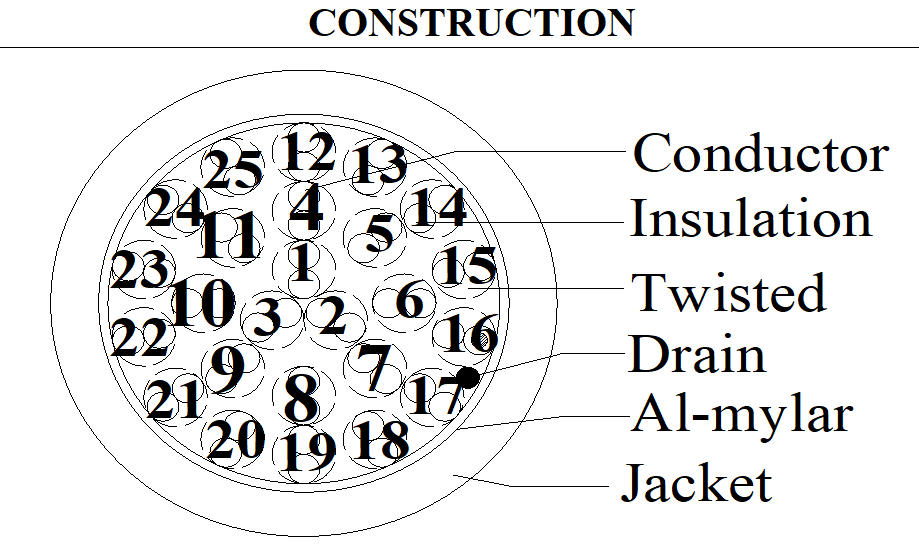

UL2464 25P×24AWG Tinned Copper Stranded Semiconductor Cable With SR-PVC Insulation And PVC Jacket

ITEM 25P×24AWG(7/0.20T)
CONDUCTOR Material Tinned copper stranded
Size 7/0.20±0.008mm
O.D.(Ref) 0.60mm
INSULATION Material SR-PVC
Min.average thickness 0.23mm
Min.thickness at any point 0.18mm
O.D. 1.10±0.05mm
TWISTED O.D.(Ref) 2.20mm
Pitch(Max.) 25mm
CABLING Material AL-mylar(foil facing in)
Size 25P×24AWG(7/0.20T)
DRAIN Material Tinned copper stranded
Size 7/0.20±0.008mm
JACKET Material PVC
Min.average thickness 0.76mm
Min.thickness at any point 0.61mm
O.D. 12.80±0.40mm

Application:Semiconductor fabrication, testing, and research laboratories

ELECTRICAL CHARACTERISTICS

Rated voltage:300V

Rated temperature:-30～80℃

Max. DC conductor resistance(20℃):94.2Ω/km

Dielectric Strength AC: 2.0kV/1min

PHYSICAL PROPERTIES

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:113±1℃×168h

Percent of original tensile strength:≥70%

Percent of original elongation:≥65%
