UL2464 39P×28AWG Tinned Copper Stranded Cable 300V With SR-PVC Insulation / PVC Jacket
UL2464 39P×28AWG Tinned Copper Stranded Cable 300V With SR-PVC Insulation / PVC Jacket
UL2464 39P×28AWG Tinned Copper Stranded Cable 300V With SR-PVC Insulation / PVC Jacket
UL2464 39P×28AWG Tinned Copper Stranded Cable 300V With SR-PVC Insulation / PVC Jacket
Specifications
Model Number :
UL2464
Insulation :
SR-PVC
Price :
To be negotiated
Application :
Semiconductor fabrication, testing, and research laboratories
Supply Ability :
100km per day
SP :
1502518
Brand Name :
Shineplus
Conductor :
Tinned Copper Stranded
Payment Terms :
T/T,L/C,Western Union
Packing :
Packed in rolls or reels
MOQ :
1000m
Delivery Time :
3-4 Weeks
Temperature :
-30～80℃
Name :
Copper Stranded Cable
Certification :
RoHS Reach
Jacket :
PVC
Place of Origin :
China
Voltage :
300V
Packaging Details :
Packed in rolls or reels
Description

UL2464 39P×28AWG Tinned Copper Stranded Semiconductor Cable with SR-PVC Insulation and PVC Jacket 300V

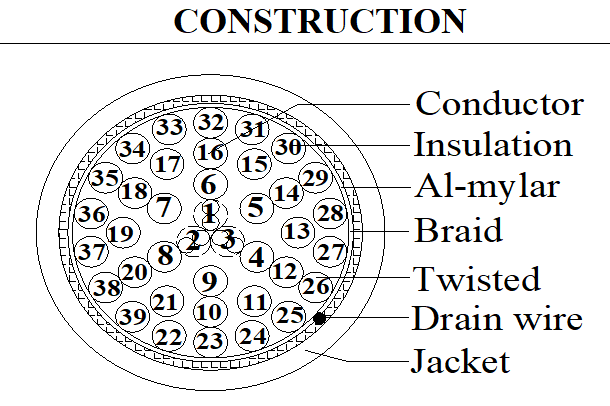

ITEM 39P×28AWG(7/0.127T)
CONDUCTOR Material Tinned copper stranded
Size 7/0.127mm
O.D.(Ref) 0.38mm
INSULATION Material SR-PVC
Nom.thickness 0.21mm
O.D.(Ref) 0.80±0.05mm
TWISTED O.D.(Ref) 1.60mm
CABLING Material Al-mylar
O.D.(Ref) 9.60mm
DRAIN WIRES Material Tinned copper stranded
Size 7/0.16mm
BRAID Material Tinned copper
Size 24/14/0.10mm
JACKET Material PVC
Nom.thickness 0.76mm
O.D.(Ref) 12.50±0.30mm

Application:Semiconductor fabrication, testing, and research laboratories

Semiconductor shielding prevents partial discharges between insulation and jacket.

ELECTRICAL CHARACTERISTICS

Rated voltage:300V

Rated temperature:80℃

Max. DC conductor resistance(20℃):239Ω/km

Dielectric Strength AC: 2.0kV/1min

PHYSICAL PROPERTIES

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:113±1℃×168h

Percent of original tensile strength:≥70%

Percent of original elongation:≥65%
