Features& Applications

• 1. Supports connection of up to 4 strain-gauge load cells or transducers simultaneously.

  2. Encased in stainless steel housing with IP66 protection for durability.

  3. High-speed AD acquisition at 120 times/second with strong anti-interference capability.

  4. Offers RS232 and RS485 communication interfaces, supporting Modbus RTU protocol (up to 127 node addresses).

  5. Includes standard calibration software with optional management functions.

  6. Ideal for various static, high-precision, and multi-node weighing control systems.

  7. Suitable for digital platform scales, mixing station weighing display control systems, and non-explosion-proof chemical/pharmaceutical reactor weighing control.

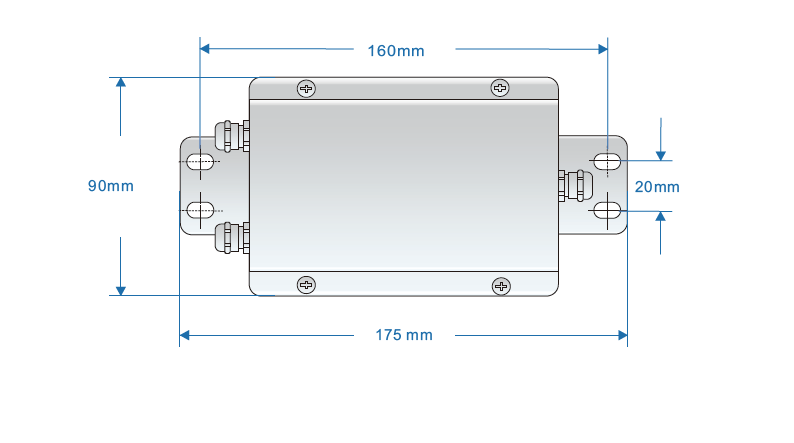

  Dimensions:
