Features& Applications

• • Panel-mounted design for convenient operation.

  • Supports weight-free calibration.

  • Compatible with both 6-wire and 4-wire load cell connections.

  • Operated via 4 touch buttons for simple setup and adjustment.

  • Analog outputs: ±10V and 4–20mA.

  • Communication interfaces: RS232 and RS485, supporting Modbus RTU protocol.

  • LED display shows real-time weight, peak values, and other data.

  • Power supply and signal isolation enhances anti-interference and ensures stable data acquisition/output.

  • Ideal for process weighing systems.

  • Suitable for process automation and control applications.

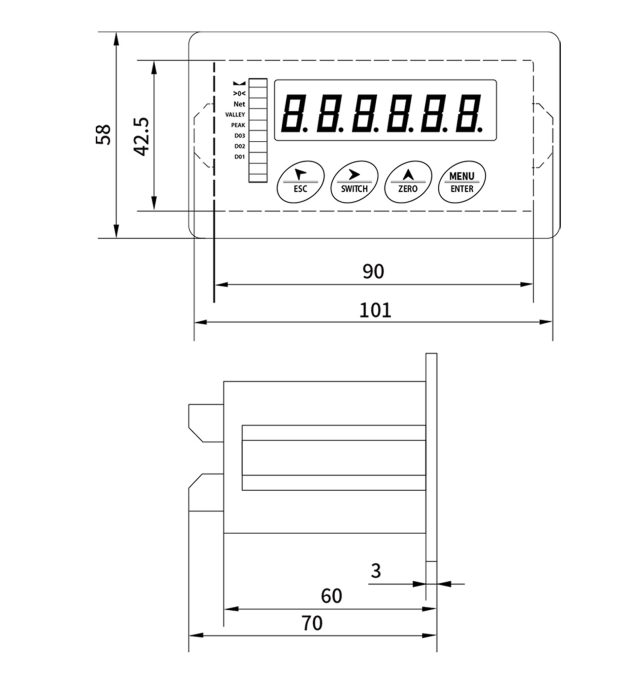

Dimensions (mm)

Wiring Code

Shipping & Packaging

To ensure the safe delivery of your instrument, we will implement the following packaging measures:

1. The instrument will be securely placed inside a dedicated cardboard box to prevent collisions and compression during transit.
2. High-density foam will fill all interior corners and gaps to prevent movement of the instrument within the box.
3. The instrument itself will be sealed in an anti-static bag for moisture and dust protection, accompanied by desiccant packets.
4. An additional layer of bubble wrap will be wrapped around the exterior for enhanced cushioning and protection.
5. The carton will be securely sealed with strong adhesive tape to prevent accidental opening during transit.
6. A shipping label containing your address and product information will be prominently affixed to the outer carton.
7. We will arrange shipment through a reputable logistics service provider.

After shipment, you will receive a tracking number to monitor the delivery status at any time. We recommend arranging for someone to be available to receive the package during the estimated delivery window to ensure successful delivery.
