Features& Applications

• • Thin and lightweight design with standard 35mm DIN-rail installation.

  • Equipped with a display screen and 4 touch buttons for easy operation and configuration.

  • Offers multiple analog outputs: 0–10V, ±10V, 4–20mA, 0–20mA, 0–10mA.

  • Communication interfaces: RS232 and RS485, supporting Modbus RTU protocol.

  • Includes 2 inputs and 2 outputs for alarm or control functions (e.g., valves, gates).

  • Powered by DC24V for stable and secure performance.

  • High precision, reliable stability, and strong anti-interference capability.

  • Primarily used in applications requiring conversion of force measurement signals into digital communication signals or standard analog outputs.

  • Suitable for simple force measurement control and monitoring tasks.

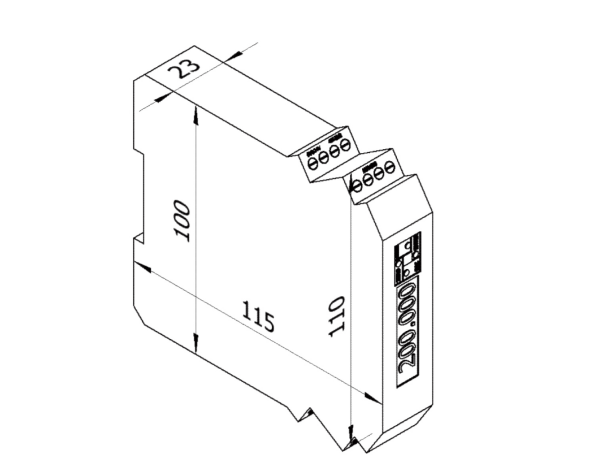

Dimensions (mm)

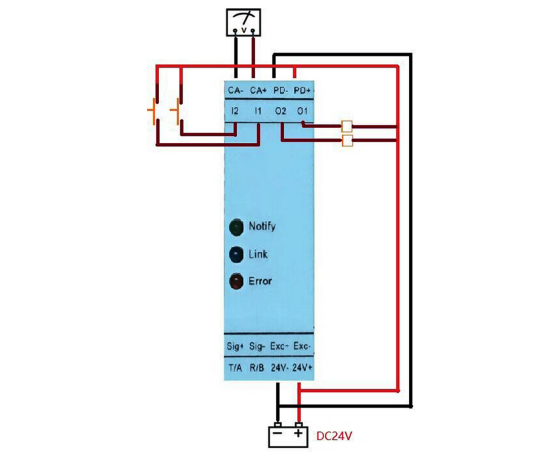

Wiring Code
