Features& Applications

• • Suitable for various static weighing control systems, such as in mixing plants and non-explosion-proof chemical/pharmaceutical reactor weighing.

  • Ideal for low-speed force measurement systems, including static presses and process force control in automotive and industrial applications.

    • Compact design with standard 35mm DIN-rail installation for easy setup.

    • Supports RS485 communication interface with Modbus RTU protocol (output protocol customizable).

    • Offers a variety of analog signal outputs: 0–5V, 0–10V, ±5V, ±10V, 0–20mA, 4–20mA, and 0–24mA.

    • High-speed AD acquisition at 120 times/second with strong anti-interference performance.

    • Optional LED or OLED display with Chinese/English menu and user-friendly interface.

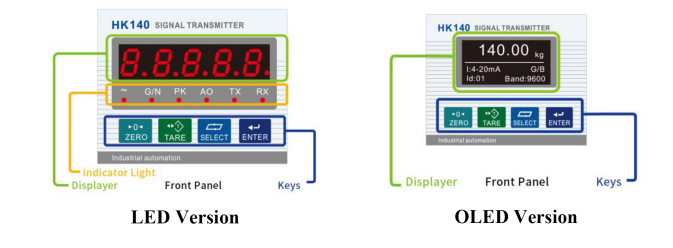

Sereen & Keyboard

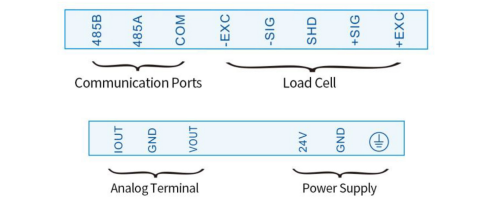

Interface

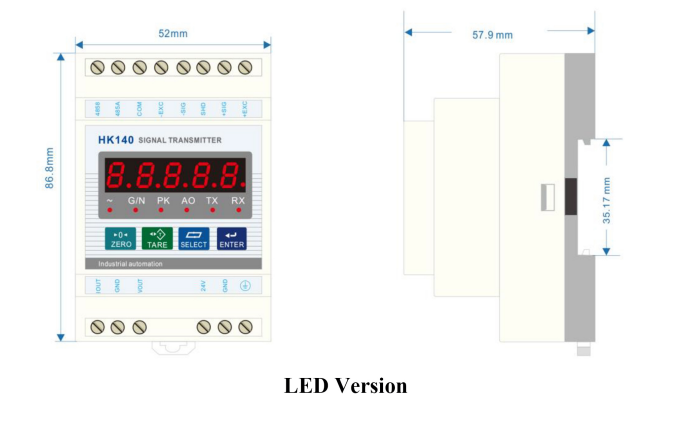

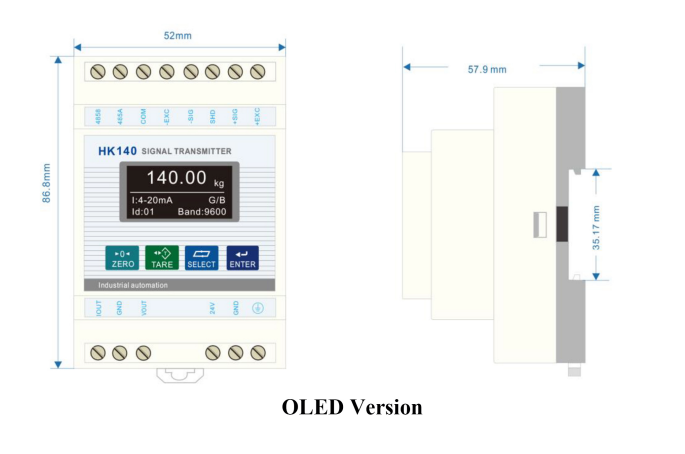

Dimensions (mm)

Shipping & Packaging

To ensure the safe delivery of your instrument, we will implement the following packaging measures:

1. The instrument will be securely placed inside a dedicated cardboard box to prevent collisions and compression during transit.
2. High-density foam will fill all interior corners and gaps to prevent movement of the instrument within the box.
3. The instrument itself will be sealed in an anti-static bag for moisture and dust protection, accompanied by desiccant packets.
4. An additional layer of bubble wrap will be wrapped around the exterior for enhanced cushioning and protection.
5. The carton will be securely sealed with strong adhesive tape to prevent accidental opening during transit.
6. A shipping label containing your address and product information will be prominently affixed to the outer carton.
7. We will arrange shipment through a reputable logistics service provider.

After shipment, you will receive a tracking number to monitor the delivery status at any time. We recommend arranging for someone to be available to receive the package during the estimated delivery window to ensure successful delivery.
