Features& Applications

• • DIN-rail mounting; OLED display with Chinese menu for user-friendly interface.

  • Ultra-high-speed AD acquisition at 3960 times/sec with strong anti-interference, effectively overcoming interference from on-site intercom calibration and servo systems up to 10KW.

  • Communication interfaces: RS232 and RS485, supporting Modbus RTU protocol.

  • Wide range of analog outputs: 0–5V, 0–10V, ±5V, ±10V, 0–20mA, 4–20mA, and 0–24mA.

  • Ideal for high-speed weight sorting systems.

  • Suited for various high-speed force measurement control systems, such as life cycle testing of accelerator/brake pedals in the automotive industry and destructive force testing in the testing machine industry. When connected to high-speed acquisition boards (over 3000Hz), it delivers highly accurate real‑time values or curves.

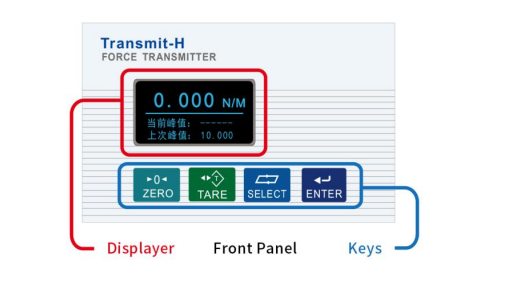

Sereen & Keyboard

Interface

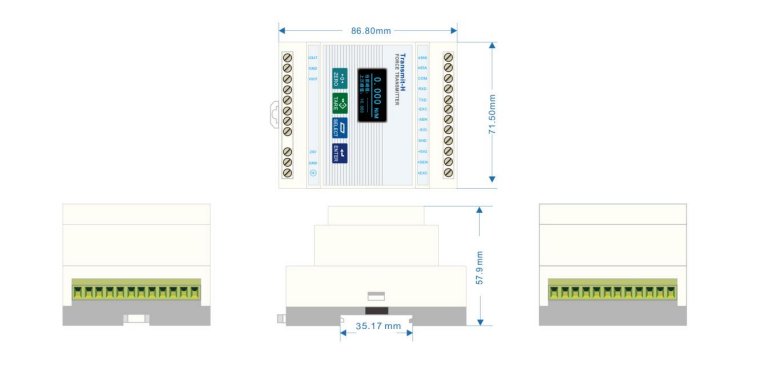

Dimensions (mm)

Shipping & Packaging

To ensure the safe delivery of your instrument, we will implement the following packaging measures:

1. The instrument will be securely placed inside a dedicated cardboard box to prevent collisions and compression during transit.
2. High-density foam will fill all interior corners and gaps to prevent movement of the instrument within the box.
3. The instrument itself will be sealed in an anti-static bag for moisture and dust protection, accompanied by desiccant packets.
4. An additional layer of bubble wrap will be wrapped around the exterior for enhanced cushioning and protection.
5. The carton will be securely sealed with strong adhesive tape to prevent accidental opening during transit.
6. A shipping label containing your address and product information will be prominently affixed to the outer carton.
7. We will arrange shipment through a reputable logistics service provider.

After shipment, you will receive a tracking number to monitor the delivery status at any time. We recommend arranging for someone to be available to receive the package during the estimated delivery window to ensure successful delivery.
