Features& Applications

• 1. Constructed with SUS304 stainless steel housing and high-performance components for durability.

  2. Equipped with 4 independent AD channels to support individual or combined use of load cells/force sensors.

  3. Features 4-channel independent error diagnosis for real-time sensor status monitoring and simplified maintenance.

  4. Provides strong anti-interference capability against electrical noise from motors, inverters, and servo controllers.

  5. Converts analog signals to RS232/RS485 digital output (Modbus RTU), optionally offers analog output.

  6. Supports Modbus RTU protocol, enabling simultaneous upload of 4 data sets to improve transmission efficiency.

  7. Ideal for automatic force measurement control and remote weighing applications, such as dispensing machines and digital platform scales.

  8. Used in weight-restricted scenarios like cranes, gantry cranes, tower cranes, as well as track weighing and center of gravity detection for subways and high-speed rail.

  9. Suitable for automated agricultural and livestock weighing and batching, including quantitative feeding systems.

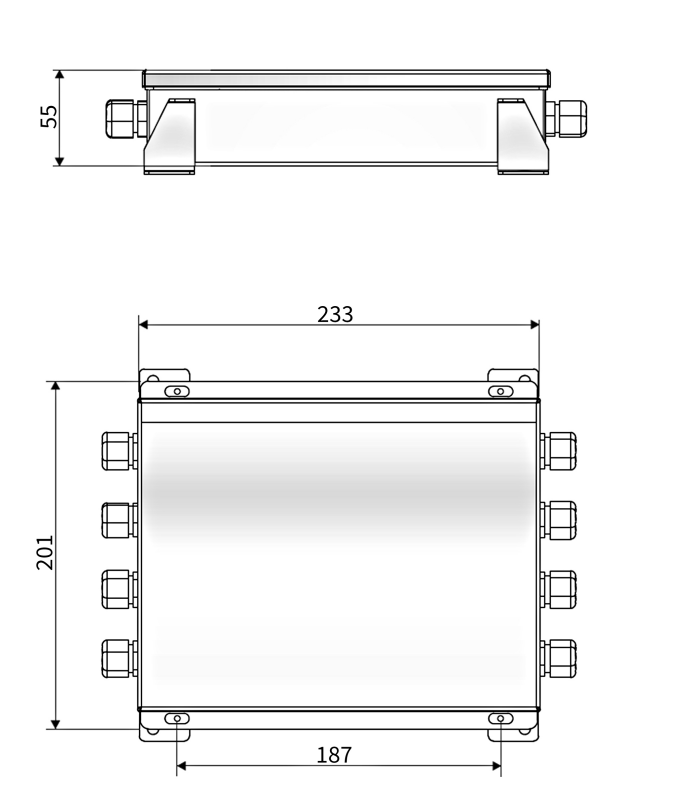

Dimensions (mm)

Shipping & Packaging

To ensure the safe delivery of your instrument, we will implement the following packaging measures:

1. The instrument will be securely placed inside a dedicated cardboard box to prevent collisions and compression during transit.
2. High-density foam will fill all interior corners and gaps to prevent movement of the instrument within the box.
3. The instrument itself will be sealed in an anti-static bag for moisture and dust protection, accompanied by desiccant packets.
4. An additional layer of bubble wrap will be wrapped around the exterior for enhanced cushioning and protection.
5. The carton will be securely sealed with strong adhesive tape to prevent accidental opening during transit.
6. A shipping label containing your address and product information will be prominently affixed to the outer carton.
7. We will arrange shipment through a reputable logistics service provider.

After shipment, you will receive a tracking number to monitor the delivery status at any time. We recommend arranging for someone to be available to receive the package during the estimated delivery window to ensure successful delivery.
