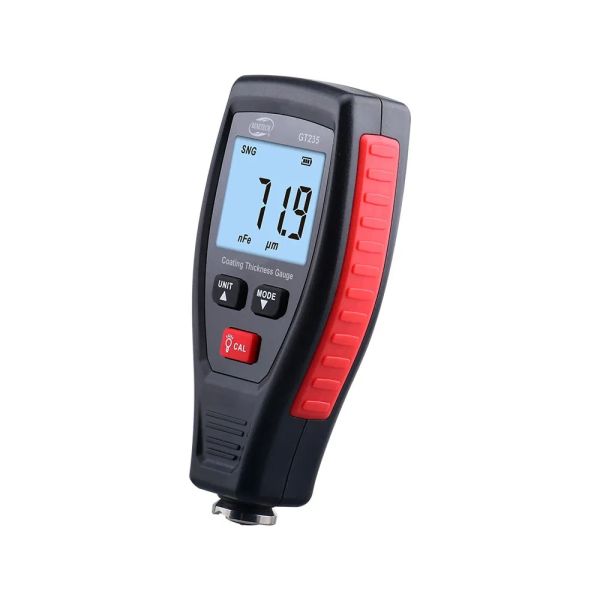

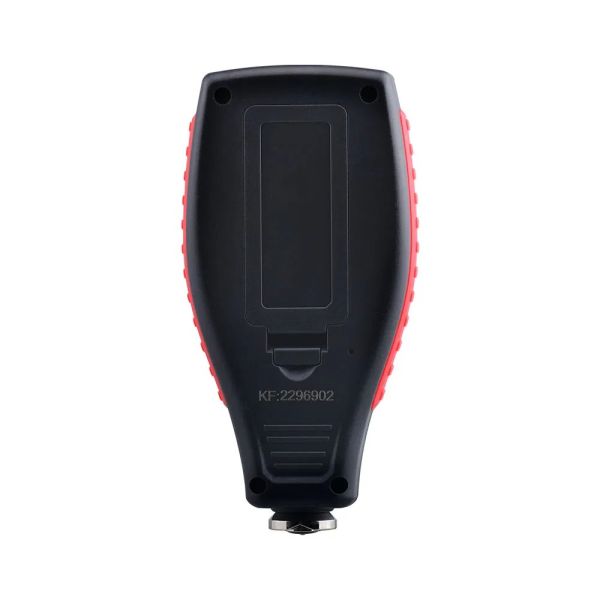

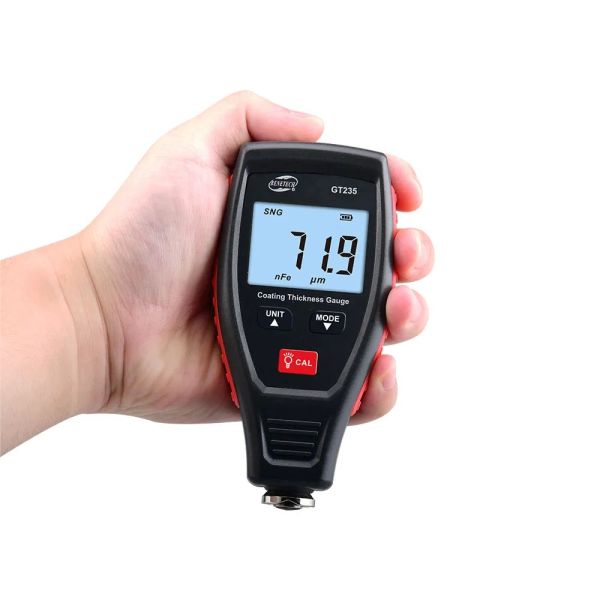

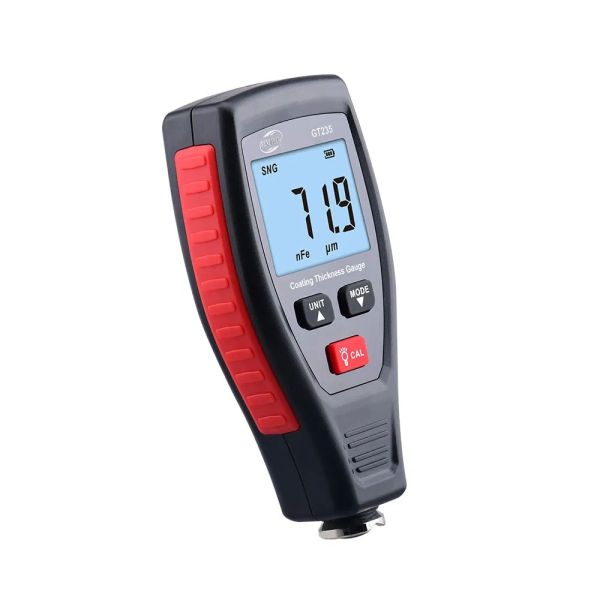

GT233,GT235 Coating Thickness Gauge with 0~1800um Measurement Range, Automatic Substrate Identification, and Portable Design
GT233,GT235 Coating Thickness Gauge with 0~1800um Measurement Range, Automatic Substrate Identification, and Portable Design
GT233,GT235 Coating Thickness Gauge with 0~1800um Measurement Range, Automatic Substrate Identification, and Portable Design
GT233,GT235 Coating Thickness Gauge with 0~1800um Measurement Range, Automatic Substrate Identification, and Portable Design
GT233,GT235 Coating Thickness Gauge with 0~1800um Measurement Range, Automatic Substrate Identification, and Portable Design
GT233,GT235 Coating Thickness Gauge with 0~1800um Measurement Range, Automatic Substrate Identification, and Portable Design
GT233,GT235 Coating Thickness Gauge with 0~1800um Measurement Range, Automatic Substrate Identification, and Portable Design
GT233,GT235 Coating Thickness Gauge with 0~1800um Measurement Range, Automatic Substrate Identification, and Portable Design
GT233,GT235 Coating Thickness Gauge with 0~1800um Measurement Range, Automatic Substrate Identification, and Portable Design
GT233,GT235 Coating Thickness Gauge with 0~1800um Measurement Range, Automatic Substrate Identification, and Portable Design
Specifications
MOQ :
40
Price :
EXW US$26~US$36
Brand Name :
Benetech,Bestone
Model Number :
GT233,GT235
Certification :
CE,ROHS
Place of Origin :
CHINA
Payment Terms :
T/T,Western Union
Supply Ability :
more than 500pcs per month
Delivery Time :
3-5 working days
Packaging Details :
cloth bag and color paper box
Model NO. :
GT233, GT235
Paint Film Property :
Heat-Resisting Paint
Formation Mechanism :
Conversion Type
CAS No. :
During The Warranty Period, Free Repair
Color :
Black and Red
Appearance :
Portable
Main Raw Material :
Plastic
Substrate :
Iron and Aluminum
Measurement Range :
0~1800um/70.8mil/1.8mm
Resolution :
0.1 Um(Less Than 100um)
Measurement Error :
Greater Than 150 Um, +/-(3%H+1pm)
Transport Package :
Box and Carrying Bag
Specification :
CE, ROHS
Trademark :
BESTONE, BENETECH
Origin :
China
HS Code :
9031809090
Description
Applications:

This product is a portable coating thickness gauge with a color screen and high. Definition display. It can quickly, non-destructively, and accurately measure the thickness of non-magnetic coatings on magnetic metal substrates and non-metal coatings on non-magnetic metal substrates. It can automatically identify magnetic and non-magnetic metal substrates and is widely used in manufacturing, metal processing, chemical industries, and quality inspection fields.

Features:
  1. Thickness measurement of non-magnetic coating on the surface of magnetic metal substrate.
  2. Thickness measurement of the non-metallic coating on the surface of the non-magnetic metal substrate.
  3. Automatic identification function of magnetic metal substrate and non-magnetic metal substrate.
  4. Three measurement methods: single continuous, and difference.
  5. With zero point, offset, and basic three calibration functions.
  6. Metric and imperial unit selection.
  7. LCD backlight function.
  8. Automatic shutdown function.

GT233,GT235 Coating Thickness Gauge with 0~1800um Measurement Range, Automatic Substrate Identification, and Portable Design

Specification:
Model GT233 GT235
Measurement range 0~1500μm/59mil/1.5mm 0~1800μm/70.8mil/1.8mm
Resolution (0.1μm (<100μm); 1μm(≥100μm)/0.1mil/0.001mm
Measurement error ≤150μm:±5μm;
>150μm: ±(3%H+1μm)
Minimum diameter of magnetic metal substrate 12mm
Minimum thickness of magnetic metal substrate 0.5mm
Minimum radius of curvature of magnetic convex substrate 2mm
Minimum radius of curvature of magnetic concave substrate 11mm
Minimum diameter of non-magnetic metal substrate 50mm
Minimum thickness of non-magnetic metal substrate 0.5mm
Power supply 1.5V AAA battery x 2pcs
Operating temperature -20~+40℃
Operating humidity 10~95%RH
Product dimensions 62*27*121.5mm
Weight 105.03g
The contents included in the shipment:
  • Coating Thickness Gauge (with built-in 2 in 1 split NFE and FE probe):1pc
  • Magnetic metal substrate:1pc
  • Non-magnetic metal substrate:1pc
  • Standard films: 6 pieces
  • 1.5V AAA battery x 2pcs (International shipping not included)
  • English Instruction Manual:1pc
  • Paper color box: 1pc
  • Cloth bag:1pc

GT233,GT235 Coating Thickness Gauge with 0~1800um Measurement Range, Automatic Substrate Identification, and Portable Design
