Specifications
MOQ :
1
Price :
US$175 ~ US$245
Brand Name :
Bestone
Model Number :
TM-8818,TM-8816,TM-8816C
Certification :
CE,ROHS
Place of Origin :
CHINA
Payment Terms :
T/T,Western Union
Supply Ability :
more than 500pcs per month
Delivery Time :
3-5 working days
Packaging Details :
plastic carrying case and white paper box
Model NO. :
TM-8818,TM-8816,TM-8816C
Operating Principle :
Ultrasonic
Sound Velocity :
500~9,990 M/S
Case Material :
Aluminum Alloy
Lower Limit Steel Pipes :
Φ20 X 3.0 mm
Transport Package :
Box and Carrying Bag
Specification :
CE, ROHS
Trademark :
BESTONE
Origin :
China
HS Code :
9031809090
Description
Ultrasonic Thickness Meter
TM-8818 (Enhanced Type, Wide Range) | TM-8816 (Functional Type)
Used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, and other industrial equipment in petroleum, shipbuilding, power station, and machine manufacturing industries. Applicable to measure the thickness of various materials including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, and nodular cast iron.
Material Selection
Code Material
CD01 Steel
CD02 Cast Iron
CD03 Aluminum
CD04 Red Copper
CD05 Brass
CD06 Zinc
CD07 Quartz Glass
CD08 Polyethylene
CD09 PVC
CD10 Gray Cast Iron
CD11 Nodular Cast Iron
XXXX Sound Velocity
Key Features
  • High power emission and broad band receiving sensitivity enables compatibility with different frequency probes
  • Capable of measuring rough surfaces, including cast iron
  • TM-8818 model features bidirectional measurements: measure thickness with known velocity or measure velocity with known thickness
  • Automatic memory for material code and sound velocity values
  • Coupling symbol indication during measurement
  • Manual or automatic power off functionality
  • USB, RS-232, and Bluetooth data output capabilities
Technical Specifications
Model TM-8818 TM-8816 TM-8816C
Housing Material Aluminum Alloy Strong, Light Weight ABS-Plastic
Display Large Screen LCD 4 Digit, 10 mm LCD
Measuring Range 0.75~400 mm (45# steel, Depend on Probe) 1.0~200 mm / 0.04~8 inch
Resolution 0.01 mm / 0.1 mm / 0.001 inch 0.1 mm 0.01 mm
Accuracy ± (0.5%n + 0.05)
Sound Velocity 500~9,990 m/s
Lower Limit of Pipes Φ15 x 2.0 mm Φ20 x 3.0 mm (Determined by Transducer)
Operating Conditions Temperature: 0~40°C; Humidity: < 85%RH
Power Supply 2x1.5V AA (UM-3) Battery 4x1.5V AAA (UM-4) Battery
Dimensions 130x76x32mm 135x65x27mm
Weight 340g (Not Including Batteries) 120g (Not Including Batteries)
Standard Accessories
TM-8818: Main Unit, Probe: 5MФ8 Standard Probe, Coupling Agent, Carrying Case, Operation Manual
TM-8816/TM-8816C: Main Unit, Probe: Built-in Probe, Coupling Agent, Carrying Case, Operation Manual
Optional Accessories
TM-8818: Other Special-purpose Probes, RS-232C Data Cable with Software, Bluetooth Data Adapter with Software
TM-8816/TM-8816C: RS-232C Data Cable with Software, Bluetooth Data Adapter with Software

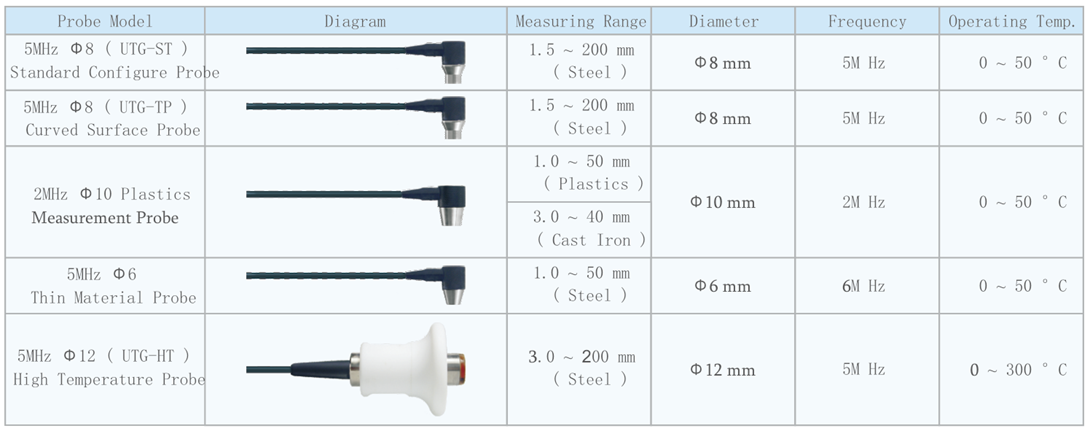

Probe Technical Parameters
