Specifications
MOQ :
1
Price :
US$115~US$179
Brand Name :
Bestone
Model Number :
TM-8812,TM-8812C,TM-8811,TM-8810
Certification :
CE,ROHS
Place of Origin :
CHINA
Payment Terms :
T/T,Western Union
Supply Ability :
More than 500pcs per month
Delivery Time :
3-5 working days
Packaging Details :
plastic carrying case and white paper box
Model NO. :
TM-8812/TM-8812C/TM-8811/TM-8810
Measuring Range :
1.0~200 mm / 0.04~8 Inch
Display :
4 Digit LCD
Operating Principle :
Ultrasonic
Sound Velocity :
500~9,990 M/S
Lower Limit Steel Pipes :
Φ15 X 2.0 mm Φ20 X 3.0 mm
Transport Package :
Box and Carrying Bag
Specification :
CE, ROHS
Trademark :
BESTONE
Origin :
China
HS Code :
9031809090
Description
Ultrasonic Thickness Meter Series
Available Models
TM-8812/TM-8812C (Functional Type) • TM-8811 (Basic Type) • TM-8810 (Affordable Type)
Product Overview
Professional ultrasonic thickness meters designed for measuring material thickness and corrosion assessment in industrial applications. Ideal for pressure vessels, chemical equipment, boilers, oil storage tanks, and various manufacturing equipment across petroleum, shipbuilding, power generation, and machinery industries.
Compatible Materials
Steel, Cast iron, Aluminum, Red copper, Brass, Zinc, Quartz glass, Polyethylene, PVC, Gray cast iron, Nodular cast iron
Key Features
  • High emission power and broad receiving sensitivity bandwidth for compatibility with various frequency probes
  • Excellent performance on rough surfaces, including cast iron applications
  • Automatic memory for material codes and sound velocity values
  • Coupling symbol indication during measurement
  • Manual or automatic power off functionality
  • TM-8812 models feature USB, RS-232, and Bluetooth data output
Technical Specifications
Model TM-8812C TM-8812 TM-8811 TM-8810
Display LCD
Sensor Ultrasonic Probe
Measuring Range 1.2~200 mm / 0.05~8 inch 1.2~200 mm / 0.05~8 inch 1.5~200 mm / 0.06~8 inch 1.5~200 mm / 0.06~8 inch
Resolution MPE:(0.01+H/200) mm MPE: +(0.1+H/100) mm MPE: +(0.1+H/100) mm MPE: +(0.1+H/100) mm
Accuracy ± (0.5%n + 0.1) ± (0.5%n + 0.1) ± (0.5%n + 0.2) ± (0.5%n + 0.2)
Sound Velocity 500~9,990 m/s 500~9,990 m/s 1000~9,000 m/s No
Lower Limit of Pipes Φ15 x 2.0 mm Φ20 x 3.0 mm (Determined by Transducer)
Operating Conditions Temperature: 0~40°C, Humidity: < 85%RH
Power Supply 4x1.5V AAA (UM-4) Battery 4x1.5V AAA (UM-4) Battery 4x1.5V AA (UM-3) Battery 4x1.5V AA (UM-3) Battery
Dimensions 120x62x30mm 120x62x30mm 160x68x32mm 160x68x32mm
Weight 164g (Not Including Batteries) 164g (Not Including Batteries) 208g (Not Including Batteries) 208g (Not Including Batteries)
Material Selection Codes
Code Material
CD01 Steel
CD02 Cast Iron
CD03 Aluminum
CD04 Red Copper
CD05 Brass
CD06 Zinc
CD07 Quartz Glass
CD08 Polyethylene
CD09 PVC
CD10 Gray Cast Iron
CD11 Nodular Cast Iron
XXXX Sound Velocity

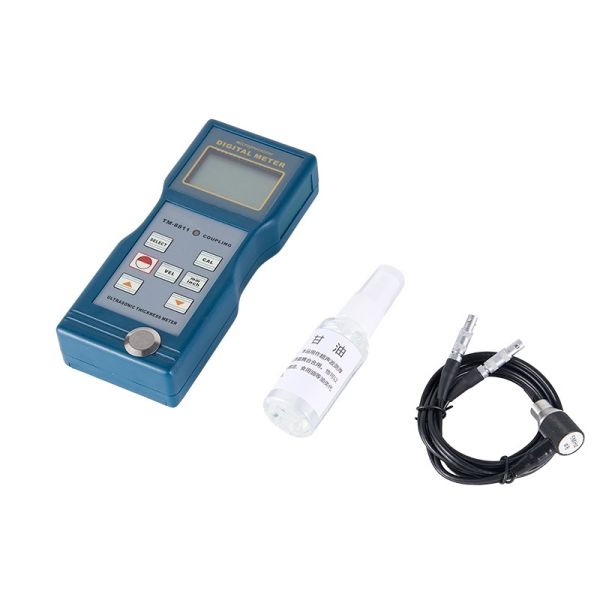

Standard Accessories

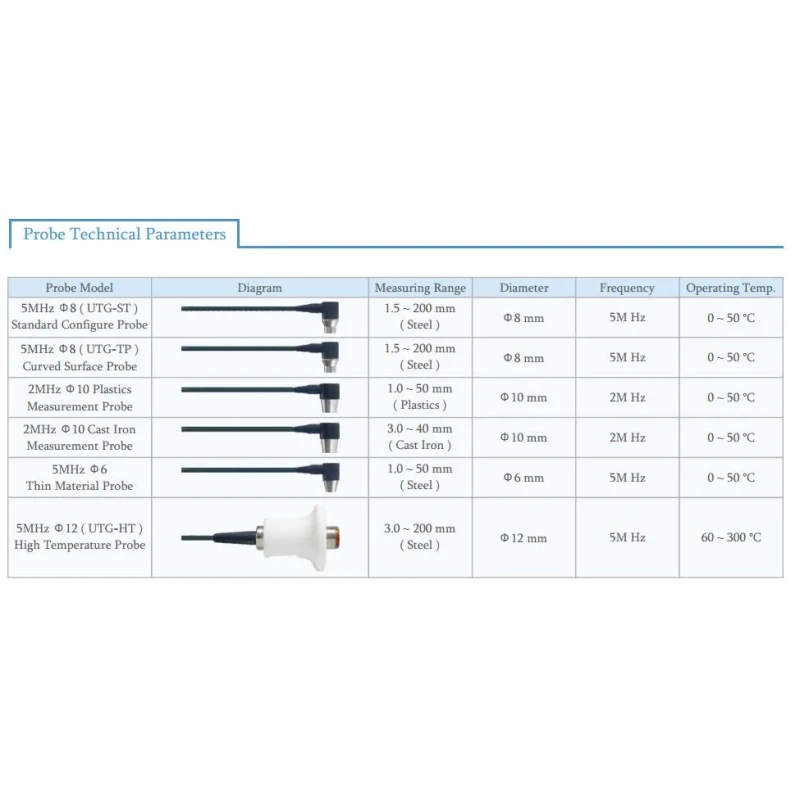

Main Unit • Probe (5MФ8 Standard Probe) • Coupling Agent • Carrying Case • Operation Manual
Optional Accessories
TM-8812 Series: Other special-purpose probes, RS-232C data cable with software, Bluetooth data adapter with software
TM-8811/TM-8810: Other special-purpose probes
