High Accuracy Side Pressure Tensimeter for Rope Tension Testing SPT-204-500K 1T 2T 5T 10T
High Accuracy Side Pressure Tensimeter for Rope Tension Testing SPT-204-500K 1T 2T 5T 10T
High Accuracy Side Pressure Tensimeter for Rope Tension Testing SPT-204-500K 1T 2T 5T 10T
High Accuracy Side Pressure Tensimeter for Rope Tension Testing SPT-204-500K 1T 2T 5T 10T
High Accuracy Side Pressure Tensimeter for Rope Tension Testing SPT-204-500K 1T 2T 5T 10T
High Accuracy Side Pressure Tensimeter for Rope Tension Testing SPT-204-500K 1T 2T 5T 10T
High Accuracy Side Pressure Tensimeter for Rope Tension Testing SPT-204-500K 1T 2T 5T 10T
High Accuracy Side Pressure Tensimeter for Rope Tension Testing SPT-204-500K 1T 2T 5T 10T
High Accuracy Side Pressure Tensimeter for Rope Tension Testing SPT-204-500K 1T 2T 5T 10T
High Accuracy Side Pressure Tensimeter for Rope Tension Testing SPT-204-500K 1T 2T 5T 10T
Specifications
Brand Name :
Bestone
Model Number :
SPT-204-500K,1T,2T,5T,10T
Certification :
CE
Place of Origin :
CHINA
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
more than 100pcs per month
Delivery Time :
5-8 working days
Packaging Details :
plastic blue color carrying case and white box
MOQ :
2
Price :
negotiable
Material :
Plastic and stainless steel
color :
black color
name :
Side pressure tension tester
used for :
a special instrument for measuring wind tower, signal transmission tower, power transmission system, and other rope tension. It is easy to operate and carry. More with a variety of testing modes, convenient for testers to use.
Force Range :
±500kgf to ±1000kgf,±4900N to ±98000N,±1100Lbf to ±22000Lbf
Accuracy :
±0.5%FS ± 1Digit
Unit :
kgf,N,Lbf
Display :
2 Reversed 4 Digit LCD
Surrounding :
No Vibration Source or Corrosive Medium
Description

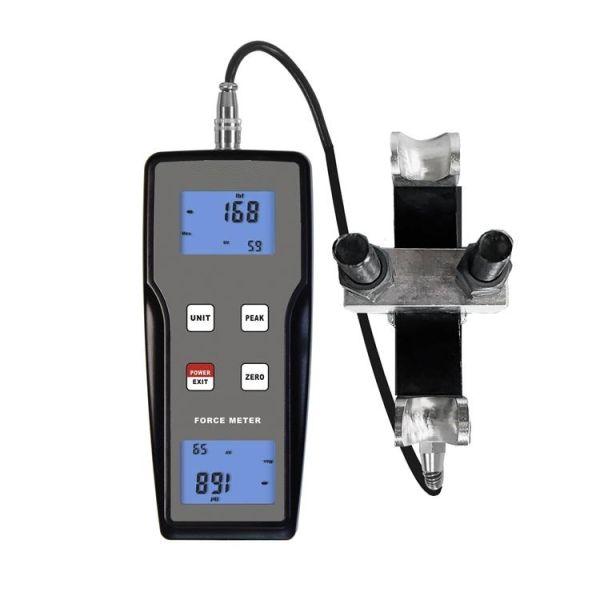

Side Pressure Tensimeter SPT-204 Series
Models: SPT-204-500K, SPT-204-1T, SPT-204-2T, SPT-204-5T, SPT-204-10T
Applications
The Side Pressure Tensimeter is a specialized instrument designed for measuring rope tension in wind towers, signal transmission towers, power transmission systems, and similar applications. Engineered for portability and ease of operation, it features multiple testing modes to accommodate various measurement requirements.
Key Features
  • High accuracy and resolution for precise measurements
  • Digital display eliminates guesswork and reading errors
  • Four selectable measurement units: N, kg, lb
  • Peak value hold function for maximum force recording
  • Dual power options: alkaline batteries or 5V DC power supply
High Accuracy Side Pressure Tensimeter for Rope Tension Testing SPT-204-500K 1T 2T 5T 10T

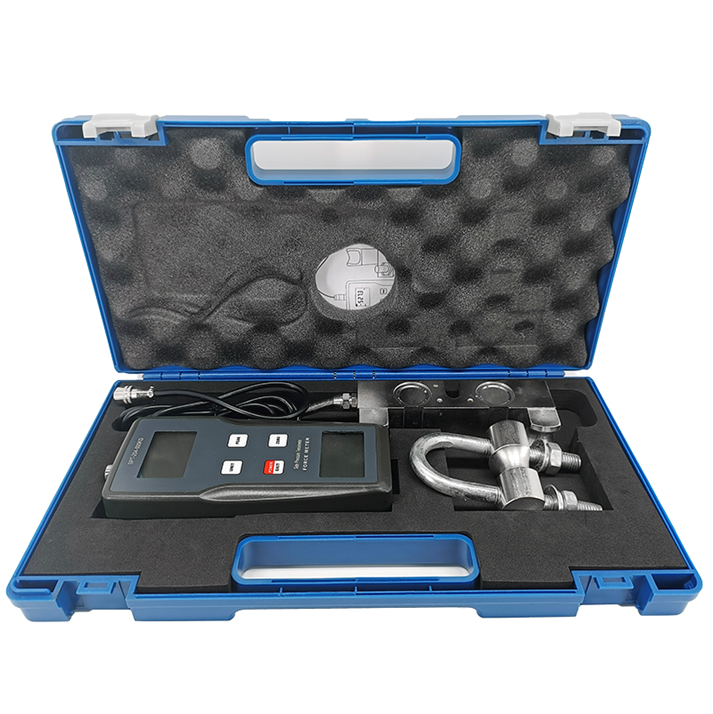

Standard Accessories
Standard Accessories Digital Force Gauge
User manual Carrying case
Optional Accessories
Power adapter
High Accuracy Side Pressure Tensimeter for Rope Tension Testing SPT-204-500K 1T 2T 5T 10T High Accuracy Side Pressure Tensimeter for Rope Tension Testing SPT-204-500K 1T 2T 5T 10T
Technical Specifications
Model SPT-204-500K SPT-204-1T SPT-204-2T SPT-204-5T SPT-204-10T
Force Range ±500kgf
±4900N
±1100Lbf		 ±1000kgf
±9800N
±2200Lbf		 ±2000kgf
±16900N
±4400Lbf		 ±5000kgf
±49000N
±11000Lbf		 ±1000kgf
±98000N
±22000Lbf
Resolution 0.01kgf (<100kgf)
0.1kgf (≥100kgf)
0.1N (<1000N)
1N (≥1000N)
0.1Lbf (<1000Lbf)
1Lbf (≥1000Lbf)		 0.01kgf (<100kgf)
0.1kgf (≥100kgf)
0.1N (<1000N)
1N (≥1000N)
0.1Lbf (<1000Lbf)
1Lbf (≥1000Lbf)		 0.01kgf (<100kgf)
0.1kgf (≥100kgf)
0.1N (<1000N)
1N (≥1000N)
0.1Lbf (<1000Lbf)
1Lbf (≥1000Lbf)		 0.01kgf (<100kgf)
0.1kgf (≥100kgf)
0.1N (<1000N)
1N (≥1000N)
0.1Lbf (<1000Lbf)
1Lbf (≥1000Lbf)		 0.01kgf (<100kgf)
0.1kgf (≥100kgf)
0.1N (<1000N)
1N (≥1000N)
0.1Lbf (<1000Lbf)
1Lbf (≥1000Lbf)
Accuracy ±0.5%FS ± 1 Digit
Unit kgf, N, Lbf
Measurement State Peak Value, Real Time Measurement
Display 2 Reversed 4 Digit LCD
Power Off 10 Minutes Auto Power Off, Manual Power Off
Backlight Blue Backlight
Safe Load 150%FS (Buzzer Alarm Over 110%FS)
Power Supply 2x1.5 AA(UM-3) Battery or 5VDC Power
Operating Conditions Temperature: 0°C~40°C
Humidity: <80%
Surrounding No Vibration Source or Corrosive Medium
Weight 1165g
Case Size 175mm x 80mm x 36mm

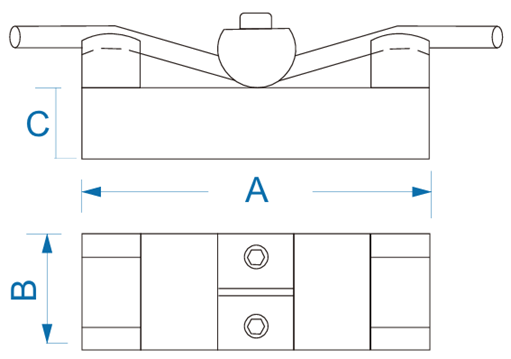

Sensor Size 140mm x 65mm x 105mm
Packaging
High Accuracy Side Pressure Tensimeter for Rope Tension Testing SPT-204-500K 1T 2T 5T 10T
