Specifications
Brand Name :
Bestone
Model Number :
TM-204-1N.m 5N.m 20N.m
Certification :
CE
Place of Origin :
CHINA
MOQ :
2
Price :
negotiable
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
more than 500pcs per month
Delivery Time :
5-8 working days
Packaging Details :
plastic box and white box
Material :
plastic and stainless steel
color :
black
TM-204-1N.m :
±0.1kgf.m,±100gf.m,±1N.m,±0.2Lbf.m
TM-204-5N.m :
±0.5kgf.m,±500gf.m,±5N.m,±1.1Lbf.m
TM-204-20N.m :
±2kgf.m,±2000gf.m,±20N.m,±4.4Lbf.m
Standard three-jaw chuck size :
0.6mm-6mm,1.5mm-13mm,3mm-16mm
Accuracy :
± 0.5%FS ± 1Digit
Unit :
kgf, gf, N, Lbf
Size :
Main Unit: 211x80x36mm
The host weight :
390g
Description

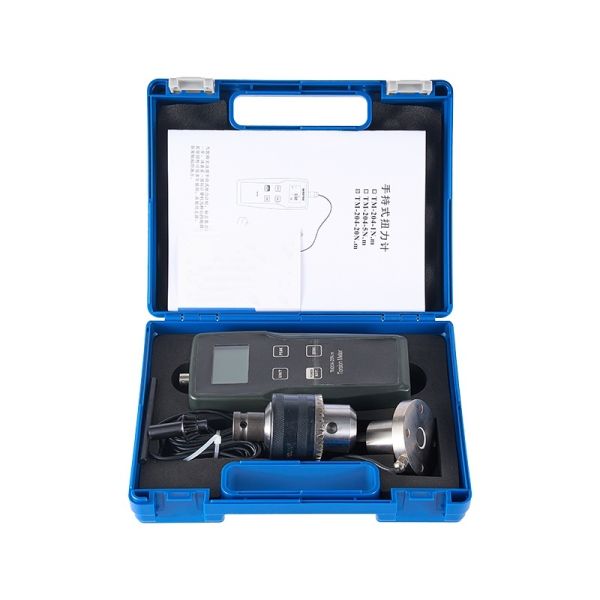

Hand-held Torsion Meter TM-204 Series (1N.m, 5N.m, 20N.m)
Applications

The digital display hand-held torque meter is a compact, versatile, and high-precision torque testing instrument. Widely used across multiple industries including electronic appliances, building hardware, light industry textiles, automotive components, ignition devices, fire fighting equipment, writing instruments, lock manufacturing, fishing tackle, chemical processing, power machinery, and scientific research institutions.

Key Features
  • High accuracy and resolution for precise measurements
  • Multiple measurement units with automatic conversion capability
  • Peak value hold function for maximum torque recording
  • Dual power options: alkaline battery or external DC power supply
Technical Specifications
Parameter TM-204-1N.m TM-204-5N.m TM-204-20N.m
Force Range ±0.1kgf.m
±100gf.m
±1N.m
±0.2Lbf.m		 ±0.5kgf.m
±500gf.m
±5N.m
±1.1Lbf.m		 ±2kgf.m
±2000gf.m
±20N.m
±4.4Lbf.m
Resolution 0.001kgf.m
1gf.m
0.01N.m
0.001Lbf.m		 0.001kgf.m
1gf.m
0.01N.m
0.001Lbf.m		 0.001kgf.m
1gf.m
0.01N.m
0.001Lbf.m

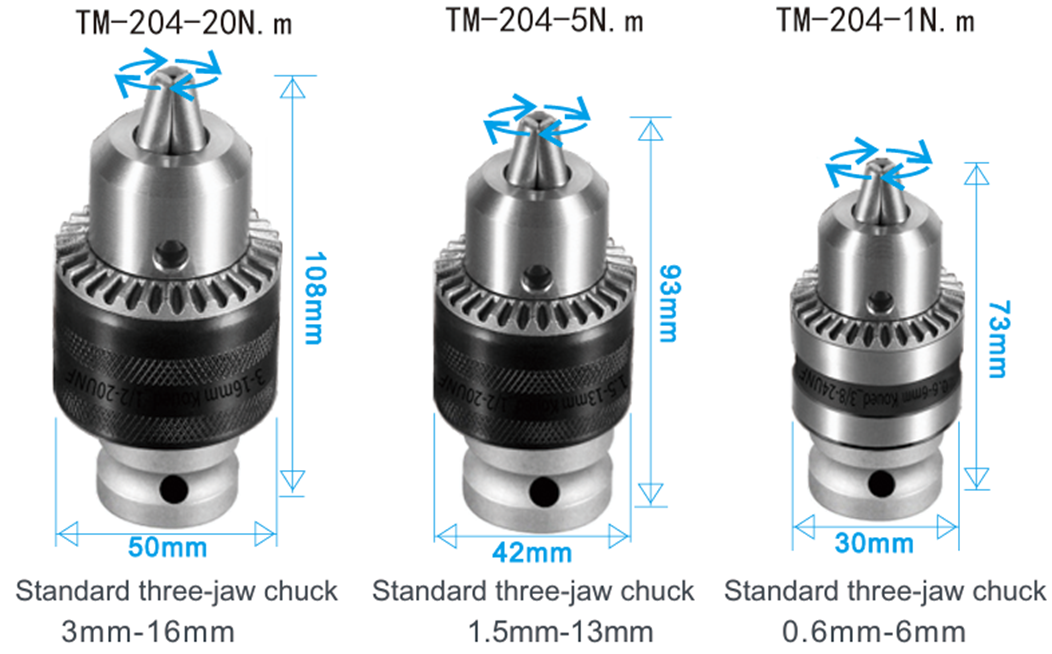

Standard Chuck Size 0.6mm-6mm 1.5mm-13mm 3mm-16mm

Accuracy: ±0.5%FS ±1 Digit

Measurement Units: kgf, gf, N, Lbf

Measurement Modes: Peak Value Measurement, Real Time Measurement

Display: Four large LCD, large screen display

Power Management: 10 Minutes Auto Power Off, Manual Power Off

Backlight: Blue Backlight

Safe Load: 150%FS (Buzzer Alarm Over 110%FS)

Power Supply: 2x1.5 AA(UM-3) Battery or 5V DC Power Supply

Operating Conditions: Temperature: 0~40°C, Humidity: <80%

Environmental Requirements: No vibration source or corrosive medium around

Dimensions: Main Unit: 211x80x36mm

Weight: 390g

Multi-purpose development:
