Digital Force Gauge FM-207-100K with ±0.2% Accuracy for Peak Value Measurement and USB Bluetooth Data Output
Digital Force Gauge FM-207-100K with ±0.2% Accuracy for Peak Value Measurement and USB Bluetooth Data Output
Digital Force Gauge FM-207-100K with ±0.2% Accuracy for Peak Value Measurement and USB Bluetooth Data Output
Digital Force Gauge FM-207-100K with ±0.2% Accuracy for Peak Value Measurement and USB Bluetooth Data Output
Digital Force Gauge FM-207-100K with ±0.2% Accuracy for Peak Value Measurement and USB Bluetooth Data Output
Digital Force Gauge FM-207-100K with ±0.2% Accuracy for Peak Value Measurement and USB Bluetooth Data Output
Digital Force Gauge FM-207-100K with ±0.2% Accuracy for Peak Value Measurement and USB Bluetooth Data Output
Digital Force Gauge FM-207-100K with ±0.2% Accuracy for Peak Value Measurement and USB Bluetooth Data Output
Digital Force Gauge FM-207-100K with ±0.2% Accuracy for Peak Value Measurement and USB Bluetooth Data Output
Digital Force Gauge FM-207-100K with ±0.2% Accuracy for Peak Value Measurement and USB Bluetooth Data Output
Digital Force Gauge FM-207-100K with ±0.2% Accuracy for Peak Value Measurement and USB Bluetooth Data Output
Digital Force Gauge FM-207-100K with ±0.2% Accuracy for Peak Value Measurement and USB Bluetooth Data Output
Specifications
MOQ :
2
Price :
negotiable
Brand Name :
Bestone
Model Number :
FM-207-100K
Certification :
CE
Place of Origin :
CHINA
Payment Terms :
T/T,Western Union
Supply Ability :
more than 200pcs per month
Delivery Time :
5-8 working days
Packaging Details :
plastic carrying case and white paper box
Model NO. :
FM-207-100K
Accuracy :
±0.2% Fs ±1 Digit
Unit :
Kgf, GF, N, Lbf
Measurement State :
Peak Value Measurement, Real Time Measurement
LCD Display :
2 Reversed 4 Digit LCD
Power off :
10 Minutes Auto Power off, Manual Power off
Backlight :
Blue Backlight
Safe Load :
150% Fs ( Buzzer Alarm Over 110% Fs )
Data Output :
USB, Bluetooth
Transport Package :
Box and Carrying Case
Description

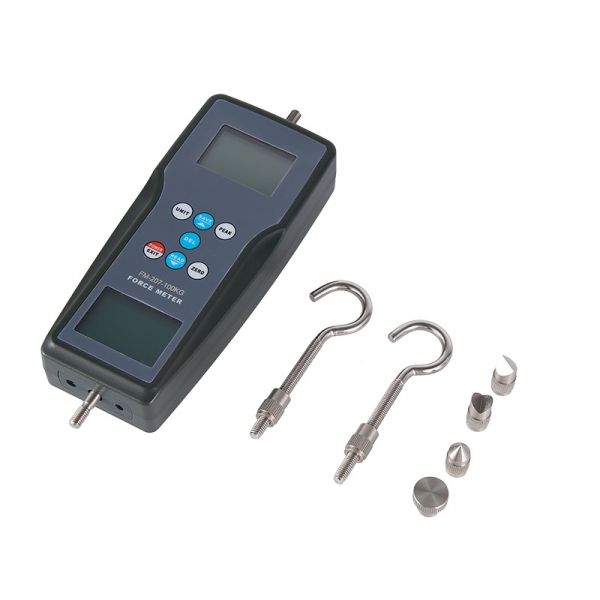

Digital Force Gauge FM-207-100K
The Digital Force Gauge FM-207-100K is a versatile, high-precision instrument designed for accurate push and pull force testing. This multi-functional device is widely utilized across various industries including electronics, building hardware, and manufacturing applications.
Key Features
  • High accuracy and resolution for precise measurements
  • Digital display eliminates guesswork and reading errors
  • Four selectable measurement units: N, kg, lb, g with easy conversion
  • Peak value hold function for maximum force recording
  • Data memory capability storing up to 99 measurement groups
  • 10-minute auto power off with manual override option
  • Dual power supply: alkaline batteries or 5V DC power
  • USB/RS-232 data output for PC connectivity
  • Optional Bluetooth data output capability
Technical Specifications
Force Range ±100 kgf, ±980 N, ±220 Lbf
Resolution 0.01 kgf, 0.1 N, 0.1 Lbf
Accuracy ±0.2% FS ±1 Digit
Measurement Units Kgf, gf, N, Lbf
Measurement States Peak Value Measurement, Real Time Measurement
Display 2 Reversed 4 Digit LCD
Power Management 10 Minutes Auto Power Off, Manual Power Off
Backlight Blue Backlight
Safe Load 150% FS (Buzzer Alarm Over 110% FS)
Data Output USB, Bluetooth
Power Supply 2 x 1.5 AA (UM-3) Battery or 5VDC Power Supply
Operating Conditions Temperature: 0 ~ 40°C, Humidity: <80%
Environment No Vibration Source or Corrosive Medium Around
Weight 390 g
Dimensions 211mm x 80mm x 36mm
Standard Accessories
  • Digital Force Gauge
  • Pulling Hook
  • Flat Tip
  • Cone Tip
  • V-shaped Groove Tip
  • V-shaped Wedge Tip
  • Manual and Carrying Case
Optional Accessories
  • Power adapter
  • CD and USB data cable
  • Bluetooth adapter
  • Force Gauge Stand
Product Images
