FM-204-200K,500K,1000K Digital Force Gauge with ±0.5% Accuracy, Peak Value Measurement, and for Precise Force Testing
FM-204-200K,500K,1000K Digital Force Gauge with ±0.5% Accuracy, Peak Value Measurement, and for Precise Force Testing
FM-204-200K,500K,1000K Digital Force Gauge with ±0.5% Accuracy, Peak Value Measurement, and for Precise Force Testing
FM-204-200K,500K,1000K Digital Force Gauge with ±0.5% Accuracy, Peak Value Measurement, and for Precise Force Testing
FM-204-200K,500K,1000K Digital Force Gauge with ±0.5% Accuracy, Peak Value Measurement, and for Precise Force Testing
FM-204-200K,500K,1000K Digital Force Gauge with ±0.5% Accuracy, Peak Value Measurement, and for Precise Force Testing
FM-204-200K,500K,1000K Digital Force Gauge with ±0.5% Accuracy, Peak Value Measurement, and for Precise Force Testing
FM-204-200K,500K,1000K Digital Force Gauge with ±0.5% Accuracy, Peak Value Measurement, and for Precise Force Testing
FM-204-200K,500K,1000K Digital Force Gauge with ±0.5% Accuracy, Peak Value Measurement, and for Precise Force Testing
FM-204-200K,500K,1000K Digital Force Gauge with ±0.5% Accuracy, Peak Value Measurement, and for Precise Force Testing
FM-204-200K,500K,1000K Digital Force Gauge with ±0.5% Accuracy, Peak Value Measurement, and for Precise Force Testing
FM-204-200K,500K,1000K Digital Force Gauge with ±0.5% Accuracy, Peak Value Measurement, and for Precise Force Testing
FM-204-200K,500K,1000K Digital Force Gauge with ±0.5% Accuracy, Peak Value Measurement, and for Precise Force Testing
FM-204-200K,500K,1000K Digital Force Gauge with ±0.5% Accuracy, Peak Value Measurement, and for Precise Force Testing
Specifications
MOQ :
2
Price :
negotiable
Brand Name :
Bestone
Model Number :
FM-204-200K,FM-204-500K,FM-204-1000K
Certification :
CE
Place of Origin :
CHINA
Payment Terms :
T/T,Western Union
Supply Ability :
more than 200pcs per month
Delivery Time :
5-8 working days
Packaging Details :
plastic carrying case and white paper box
Accuracy :
±0.5% Fs ±1 Digit
Unit :
Kgf, N, Lbf
Measurement State :
Peak Value Measurement, Real Time Measurement
LCD Display :
2 Reversed 4 Digit LCD
Power off :
10 Minutes Auto Power off, Manual Power off
Backlight :
Blue Backlight
Safe Load :
150% Fs ( Buzzer Alarm Over 110% Fs )
Transport Package :
Box and Carrying Case
Description
Digital Force Gauge FM-204-200K, FM-204-500K, FM-204-1000K

The digital force gauge is a simple and convenient functional instrument designed for high-accuracy push and pull force testing. It is widely used across multiple industries including electronics, building hardware, textiles, auto parts, ignition devices, fire fighting equipment, pen manufacturing, lock manufacturing, fishing gear, chemicals, power machinery, and scientific research institutions.

Key Features
  • High accuracy and resolution for precise measurements
  • Digital display eliminates guessing and reading errors
  • Three measurement units available: N, kg, lb with easy conversion
  • Peak value hold function for maximum force recording
  • 10-minute auto power off with manual power off option
  • Dual power options: alkaline batteries or 5V DC power
Technical Specifications
Model FM-204-200K FM-204-500K FM-204-1000K
Force Range ±200kgf / ±1960N / ±440Lbf ±500kgf / ±4900N / ±1100Lbf ±100kgf / ±9800N / ±2200Lbf
Resolution 0.01kgf (<100kgf), 0.1kgf (≥100kgf)
0.1N (<1000N), 1N (≥1000N)
0.1Lbf		 0.01kgf (<100kgf), 0.1kgf (≥100kgf)
0.1N (<1000N), 1N (≥1000N)
0.1Lbf (<1000Lbf), 1Lbf (≥1000Lbf)		 0.01kgf (<100kgf), 0.1kgf (≥100kgf)
0.1N (<1000N), 1N (≥1000N)
0.1Lbf (<1000Lbf), 1Lbf (≥1000Lbf)
Accuracy ±0.5%FS ± 1 Digit
Measurement Units kgf, N, Lbf
Measurement States Peak Value, Real Time Measurement
Display 2 Reversed 4 Digit LCD
Power Management 10 Minutes Auto Power Off, Manual Power Off
Backlight Blue Backlight
Safe Load 150%FS (Buzzer Alarm Over 110%FS)
Power Supply 2x1.5 AA(UM-3) Battery or 5VDC Power
Operating Conditions Temperature: 0°C~40°C, Humidity: <80%
Environment No Vibration Source or Corrosive Medium
Weight 1165g
Case Size 175mm x 80mm x 36mm
Sensor Size 181mm x 54mm x 30mm

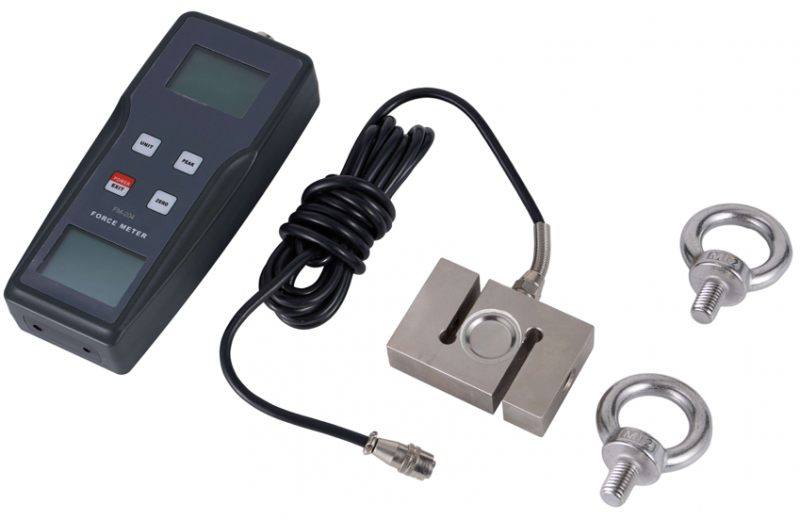

Included Accessories
Standard Accessories Digital Force Gauge
Sensor (M12 Screw Hole)
2 Suspension Links
Manual
Carrying Case
Optional Accessories Power Adapter
