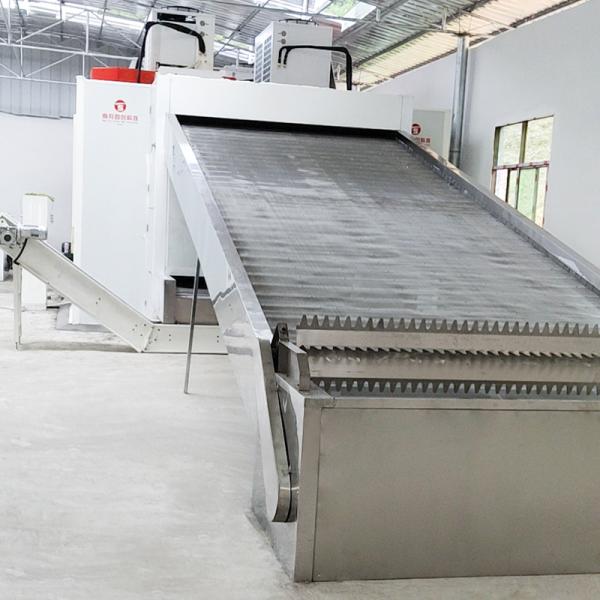

Self Controlled Food Continuous Belt Dryer Equipment 1100W 20×8×3.2m ODM
Self Controlled Food Continuous Belt Dryer Equipment 1100W 20×8×3.2m ODM
Self Controlled Food Continuous Belt Dryer Equipment 1100W 20×8×3.2m ODM
Self Controlled Food Continuous Belt Dryer Equipment 1100W 20×8×3.2m ODM
Self Controlled Food Continuous Belt Dryer Equipment 1100W 20×8×3.2m ODM
Self Controlled Food Continuous Belt Dryer Equipment 1100W 20×8×3.2m ODM
Self Controlled Food Continuous Belt Dryer Equipment 1100W 20×8×3.2m ODM
Self Controlled Food Continuous Belt Dryer Equipment 1100W 20×8×3.2m ODM
Specifications
Brand Name :
HengShou
Certification :
ISO SGS
Place of Origin :
Sichuan
MOQ :
1
Price :
$19900-39900 Sets
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Sets Years
Delivery Time :
10 Work Days
Product name :
Cycle Continuous Belt Dryer
Product Features :
High efficiency and fast drying
Customized service :
Yes
Type :
Drying Equipment
Description

Self-Controlled Constant Temperature Scientific Use Of Thermal Energy Cycle Continuous Belt Dryer

Description:

  1. Cycle Continuous Belt Dryer structure of the belt dryer is not complicated, the installation is convenient, and it can run for a long time. When a fault occurs, it can enter the inside of the box for maintenance, which is convenient for maintenance.
  2. Air volume, heating temperature, material residence time, and feeding speed can be adjusted to achieve the best drying effect.
  3. Cycle Continuous Belt Dryer equipment configuration is flexible, and the mesh belt washing system and material cooling system can be used.
  4. Most of the air is recycled, highly energy saving.
Self Controlled Food Continuous Belt Dryer Equipment 1100W 20×8×3.2m ODM

Specifications:

Model DW2×6m DW2×8m DW2×10m DW2×12m DW2×14m DW2×16m
Area of dry 3 layers 29㎡ 40㎡ 51㎡ 62㎡ 73㎡ 83㎡
4 layers 39㎡ 53㎡ 68㎡ 83㎡ 97㎡ 110㎡
5 layers 48㎡ 66㎡ 85㎡ 103㎡ 121㎡ 138㎡
6layers 57㎡ 79㎡ 102㎡ 124㎡ 145㎡ 165㎡
Thickness of the material 50---150mm
Operation temperature 40---120℃
Drying time 0.5——5 hour or 3——15 hour
Motor power 1.1kw 1.5kw 1.5kw 1.5kw 2.2kw 3kw
Evaporation,capacity 200-400kg/h 300-600kg/h 400-700kg/h 500-800kg/h 600-1000kg/h 700-1200kg/h
Size of hot blast stove 1.2×2.5×1.7 1.2×2.7×1.9 1.3×3×2 1.3×3×3 1.6×3.5×2.2 1.6×3.7×2.2
Fan 8C-15kw 10C-15kw 10C-22kw 10C-37kw 12C-30kw 12C-45kw
Output conveyor 1.1kw
Total power 18kw 18.4kw 26kw 41kw 35.1kw 46.7kw

MATERIAL APPLICATION

Self Controlled Food Continuous Belt Dryer Equipment 1100W 20×8×3.2m ODM

COMPANY PROFILE

Self Controlled Food Continuous Belt Dryer Equipment 1100W 20×8×3.2m ODM

PATENT CERTIFICATE

Self Controlled Food Continuous Belt Dryer Equipment 1100W 20×8×3.2m ODM

SHIPMENT AND PACKGAGE

Packaging And Delivery Details:

1. Standard import and export wooden case

2. According to customer requirements, the packaging method can be negotiated.

Self Controlled Food Continuous Belt Dryer Equipment 1100W 20×8×3.2m ODM
