SGS Continuous Belt Dryer Machine Dehumidification
SGS Continuous Belt Dryer Machine Dehumidification
SGS Continuous Belt Dryer Machine Dehumidification
SGS Continuous Belt Dryer Machine Dehumidification
SGS Continuous Belt Dryer Machine Dehumidification
SGS Continuous Belt Dryer Machine Dehumidification
SGS Continuous Belt Dryer Machine Dehumidification
SGS Continuous Belt Dryer Machine Dehumidification
Specifications
Brand Name :
HengShou
Certification :
ISO
Place of Origin :
Sichuan
MOQ :
1
Price :
$19900-39900 Sets
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Sets Years
Delivery Time :
10 Work Days
Product name :
Red Pepper Continuous Belt Dryer
Type :
Drying Equipment
Power(w) :
11.4-36.8kw
Weight :
1500kg
Application :
Food Processing,Medicine Processing,Chemicals Processing,Plastics Processing
Description

Mass Production Continuous Belt Dryer Fast Drying Rate Mechanical Dehumidification

Description:

1. Automatic feeding: The feeding machine is equipped with an equalizing device, the thickness of the material layer can be adjusted, and the material can be laid flat on the conveyor, the material is spread evenly, labor is saved, and the drying quality is guaranteed.
2. Stainless steel mesh belt: 304 food grade stainless steel mesh belt is used, which can be used with confidence.
3. High-strength skeleton: It can support the drying of large quantities of materials.
4. Material The box is made of paint, color steel, and steel, which is beautiful and elegant, resistant to moisture, corrosion, high strength and no rust.
5. The multi-layer mesh belt box adopts a multi-layer mesh belt structure. The upper layer is turned over and naturally falls to the lower layer. Continuous turnover makes the baked goods evenly heated, which makes the material dry more fully, and overcomes the deformation of the goods caused by manual stirring. Manpower is saved.

SGS Continuous Belt Dryer Machine Dehumidification

Specifications:

Model DW2×6m DW2×8m DW2×10m DW2×12m DW2×14m DW2×16m
Area of dry 3 layers 29㎡ 40㎡ 51㎡ 62㎡ 73㎡ 83㎡
4 layers 39㎡ 53㎡ 68㎡ 83㎡ 97㎡ 110㎡
5 layers 48㎡ 66㎡ 85㎡ 103㎡ 121㎡ 138㎡
6layers 57㎡ 79㎡ 102㎡ 124㎡ 145㎡ 165㎡
Thickness of the material 50---150mm
Operation temperature 40---120℃
Drying time 0.5——5 hour or 3——15 hour
Motor power 1.1kw 1.5kw 1.5kw 1.5kw 2.2kw 3kw
Evaporation,capacity 200-400kg/h 300-600kg/h 400-700kg/h 500-800kg/h 600-1000kg/h 700-1200kg/h
Size of hot blast stove 1.2×2.5×1.7 1.2×2.7×1.9 1.3×3×2 1.3×3×3 1.6×3.5×2.2 1.6×3.7×2.2
Fan 8C-15kw 10C-15kw 10C-22kw 10C-37kw 12C-30kw 12C-45kw
Output conveyor 1.1kw
Total power 18kw 18.4kw 26kw 41kw 35.1kw 46.7kw

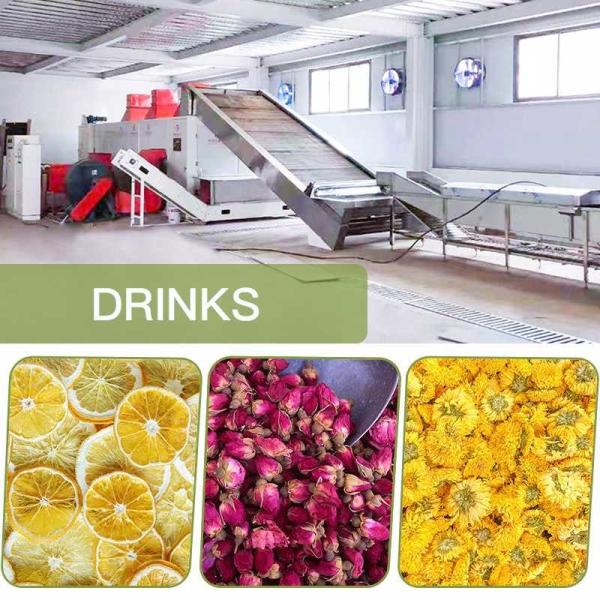

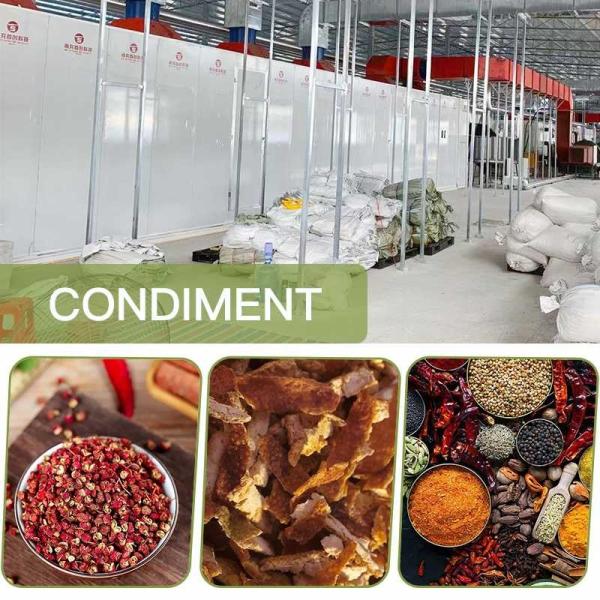

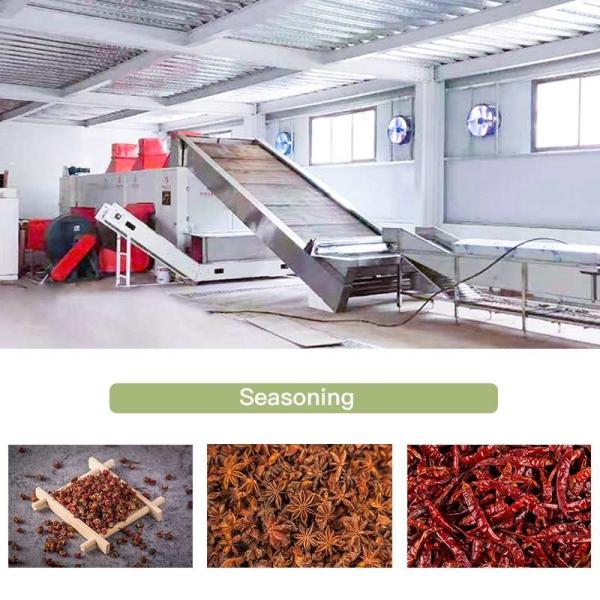

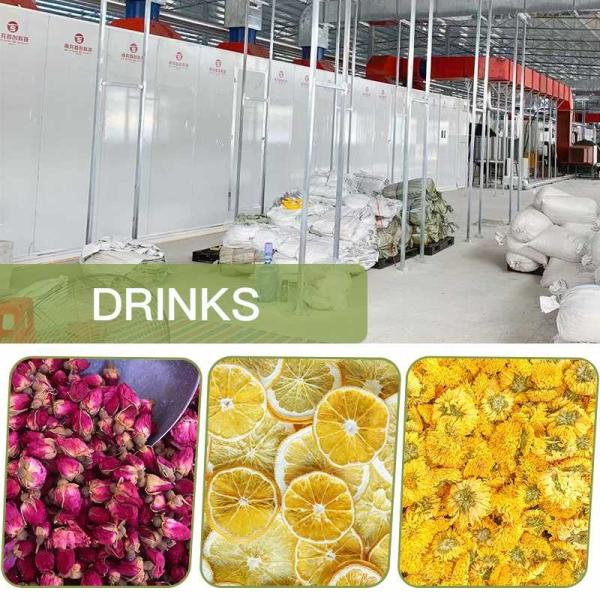

MATERIAL APPLICATION

SGS Continuous Belt Dryer Machine Dehumidification

COMPANY PROFILE

SGS Continuous Belt Dryer Machine Dehumidification

PATENT CERTIFICATE

SGS Continuous Belt Dryer Machine Dehumidification

SHIPMENT AND PACKGAGE

Packaging And Delivery Details:

1. Standard import and export wooden case

2. According to customer requirements, the packaging method can be negotiated.

SGS Continuous Belt Dryer Machine Dehumidification
