Konjac Red Chilli Dryer Machine ISO SGS
Konjac Red Chilli Dryer Machine ISO SGS
Konjac Red Chilli Dryer Machine ISO SGS
Konjac Red Chilli Dryer Machine ISO SGS
Konjac Red Chilli Dryer Machine ISO SGS
Konjac Red Chilli Dryer Machine ISO SGS
Konjac Red Chilli Dryer Machine ISO SGS
Konjac Red Chilli Dryer Machine ISO SGS
Specifications
Brand Name :
HengShou
Certification :
ISO
Place of Origin :
Sichuan
MOQ :
1
Price :
$19900-39900 Sets
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Sets Years
Delivery Time :
10 Work Days
Product name :
Red Pepper Continuous Belt Dryer
Type :
Drying Equipment
Power(w) :
11.4-36.8kw
Weight :
1500kg
Application :
Food Processing,Medicine Processing,Chemicals Processing,Plastics Processing
Description

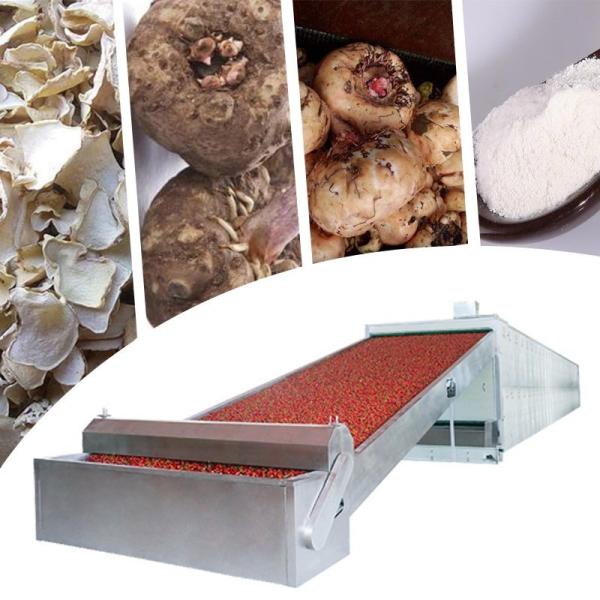

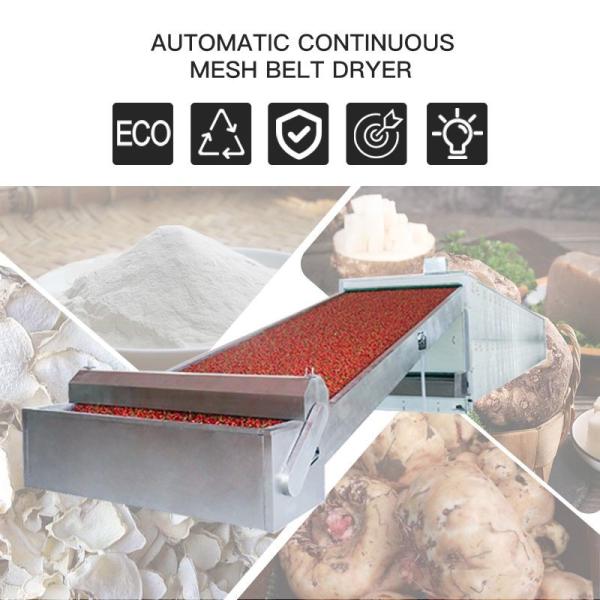

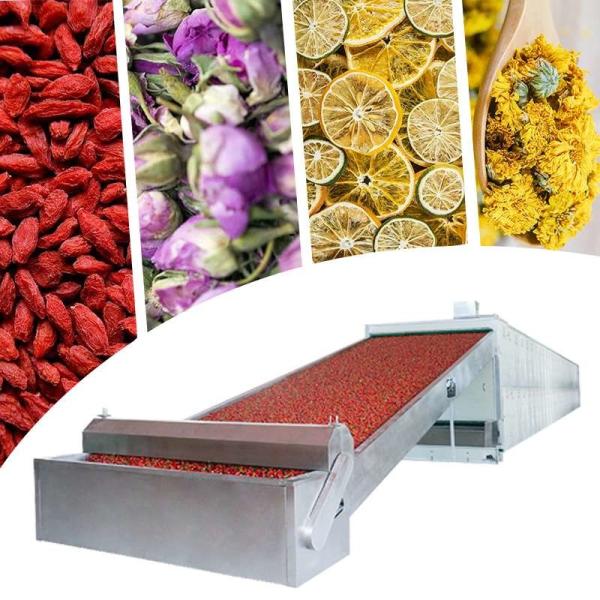

Red Pepper Food Drying Processing Continuous Belt Dryer Agricultural Equipment

Description:

The mesh belt dryer scientifically combines heat and air to effectively utilize heat energy. The hot air flows through the mesh belt and the material layer above it from bottom to top. Good ideal for the cost. The mesh belt of the mesh belt dryer for spreading the processed materials adopts multi-layer moving stainless steel mesh belts. The materials are dried and processed in a closed box, and the materials are automatically fed in and out. It is also equipped with a cooling layer and a vibrating feeding device. The drying cycle only takes 0.5-5 hours to meet the requirements of batch drying and processing of materials and ensure product quality.

Konjac Red Chilli Dryer Machine ISO SGS

Specifications:

Model DW2×6m DW2×8m DW2×10m DW2×12m DW2×14m DW2×16m
Area of dry 3 layers 29㎡ 40㎡ 51㎡ 62㎡ 73㎡ 83㎡
4 layers 39㎡ 53㎡ 68㎡ 83㎡ 97㎡ 110㎡
5 layers 48㎡ 66㎡ 85㎡ 103㎡ 121㎡ 138㎡
6layers 57㎡ 79㎡ 102㎡ 124㎡ 145㎡ 165㎡
Thickness of the material 50---150mm
Operation temperature 40---120℃
Drying time 0.5——5 hour or 3——15 hour
Motor power 1.1kw 1.5kw 1.5kw 1.5kw 2.2kw 3kw
Evaporation,capacity 200-400kg/h 300-600kg/h 400-700kg/h 500-800kg/h 600-1000kg/h 700-1200kg/h
Size of hot blast stove 1.2×2.5×1.7 1.2×2.7×1.9 1.3×3×2 1.3×3×3 1.6×3.5×2.2 1.6×3.7×2.2
Fan 8C-15kw 10C-15kw 10C-22kw 10C-37kw 12C-30kw 12C-45kw
Output conveyor 1.1kw
Total power 18kw 18.4kw 26kw 41kw 35.1kw 46.7kw

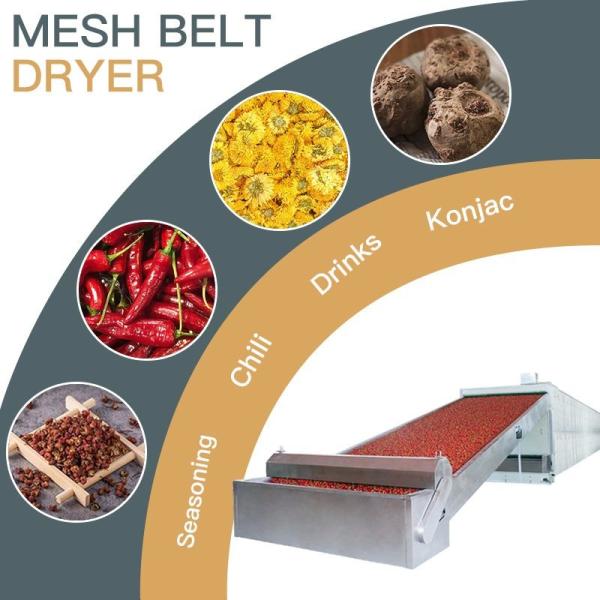

MATERIAL APPLICATION

Konjac Red Chilli Dryer Machine ISO SGS

COMPANY PROFILE

Konjac Red Chilli Dryer Machine ISO SGS

PATENT CERTIFICATE

Konjac Red Chilli Dryer Machine ISO SGS

SHIPMENT AND PACKGAGE

Packaging And Delivery Details:

1. Standard import and export wooden case

2. According to customer requirements, the packaging method can be negotiated.

Konjac Red Chilli Dryer Machine ISO SGS
