Mushroom Honeysuckle Multi Layer Belt Dryer Equipment 50C To 100C Electric Heating
Mushroom Honeysuckle Multi Layer Belt Dryer Equipment 50C To 100C Electric Heating
Mushroom Honeysuckle Multi Layer Belt Dryer Equipment 50C To 100C Electric Heating
Mushroom Honeysuckle Multi Layer Belt Dryer Equipment 50C To 100C Electric Heating
Mushroom Honeysuckle Multi Layer Belt Dryer Equipment 50C To 100C Electric Heating
Mushroom Honeysuckle Multi Layer Belt Dryer Equipment 50C To 100C Electric Heating
Mushroom Honeysuckle Multi Layer Belt Dryer Equipment 50C To 100C Electric Heating
Mushroom Honeysuckle Multi Layer Belt Dryer Equipment 50C To 100C Electric Heating
Specifications
Brand Name :
HengShou
Certification :
ISO SGS
Place of Origin :
Sichuan
MOQ :
1
Price :
$19900-39900 Sets
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Sets Years
Delivery Time :
10 Work Days
Product name :
Honeysuckle Continuous Belt Dryer
Available materials :
Honeysuckle herbal medicine
Operation method :
Intelligent control
Temperature :
30-75°
Rotating speed :
Customized speed
Heat transfer area :
35 square meters
Description

Temperature Range 50-100℃ Electric Heating Mushroom Honeysuckle Continuous Belt Dryer

Description:

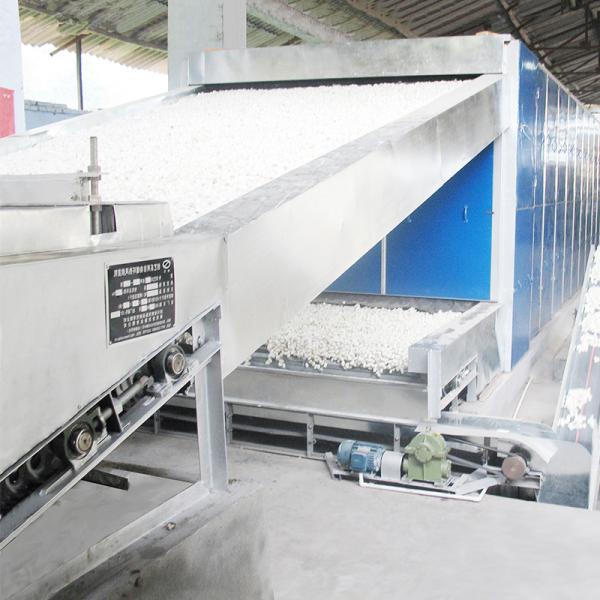

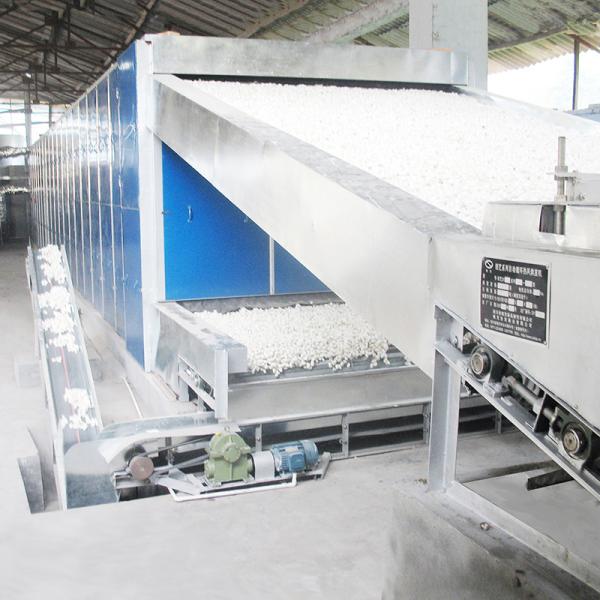

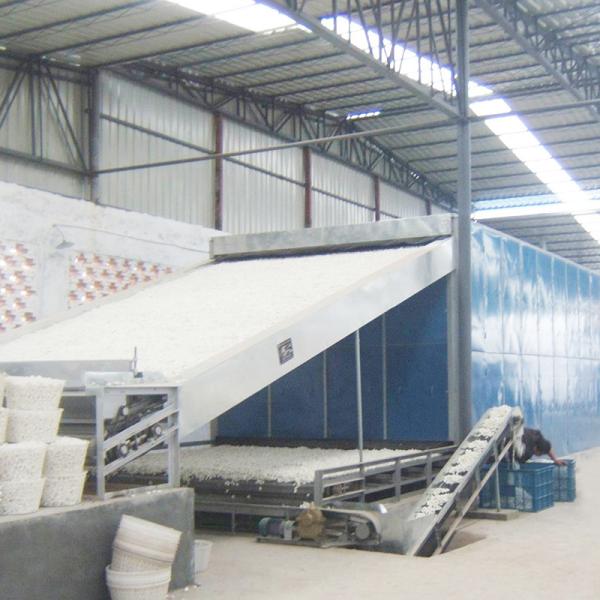

Honeysuckle Continuous Belt Dryer material is evenly spread on the mesh belt by the feeder, and the mesh belt is generally made of 12-60 mesh stainless steel wire mesh, which is dragged by the transmission device to move in the dryer. The dryer consists of several units, each unit circulates the hot air independently, part of the exhaust gas is discharged by a special dehumidification fan, and the exhaust gas is controlled by a regulating valve. The process of mass transfer takes away the moisture of the material.

Mushroom Honeysuckle Multi Layer Belt Dryer Equipment 50C To 100C Electric Heating

Specifications:

Model DW2×6m DW2×8m DW2×10m DW2×12m DW2×14m DW2×16m
Area of dry 3 layers 29㎡ 40㎡ 51㎡ 62㎡ 73㎡ 83㎡
4 layers 39㎡ 53㎡ 68㎡ 83㎡ 97㎡ 110㎡
5 layers 48㎡ 66㎡ 85㎡ 103㎡ 121㎡ 138㎡
6layers 57㎡ 79㎡ 102㎡ 124㎡ 145㎡ 165㎡
Thickness of the material 50---150mm
Operation temperature 40---120℃
Drying time 0.5——5 hour or 3——15 hour
Motor power 1.1kw 1.5kw 1.5kw 1.5kw 2.2kw 3kw
Evaporation,capacity 200-400kg/h 300-600kg/h 400-700kg/h 500-800kg/h 600-1000kg/h 700-1200kg/h
Size of hot blast stove 1.2×2.5×1.7 1.2×2.7×1.9 1.3×3×2 1.3×3×3 1.6×3.5×2.2 1.6×3.7×2.2
Fan 8C-15kw 10C-15kw 10C-22kw 10C-37kw 12C-30kw 12C-45kw
Output conveyor 1.1kw
Total power 18kw 18.4kw 26kw 41kw 35.1kw 46.7kw

MATERIAL APPLICATION

Mushroom Honeysuckle Multi Layer Belt Dryer Equipment 50C To 100C Electric Heating

COMPANY PROFILE

Mushroom Honeysuckle Multi Layer Belt Dryer Equipment 50C To 100C Electric Heating

PATENT CERTIFICATE

Mushroom Honeysuckle Multi Layer Belt Dryer Equipment 50C To 100C Electric Heating

SHIPMENT AND PACKGAGE

Packaging And Delivery Details:

1. Standard import and export wooden case

2. According to customer requirements, the packaging method can be negotiated.

Mushroom Honeysuckle Multi Layer Belt Dryer Equipment 50C To 100C Electric Heating
