Fungus Mushroom Grain Continuous Belt Dryer Multilayer Large Scale
Fungus Mushroom Grain Continuous Belt Dryer Multilayer Large Scale
Fungus Mushroom Grain Continuous Belt Dryer Multilayer Large Scale
Fungus Mushroom Grain Continuous Belt Dryer Multilayer Large Scale
Fungus Mushroom Grain Continuous Belt Dryer Multilayer Large Scale
Fungus Mushroom Grain Continuous Belt Dryer Multilayer Large Scale
Fungus Mushroom Grain Continuous Belt Dryer Multilayer Large Scale
Fungus Mushroom Grain Continuous Belt Dryer Multilayer Large Scale
Specifications
Brand Name :
HengShou
Certification :
ISO SGS
Place of Origin :
Sichuan
MOQ :
1
Price :
$19900-39900 Sets
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Sets Years
Delivery Time :
10 Work Days
Product name :
Fungus Grain Continuous Belt Dryer
Temperature :
75°c（Customized）
Work time :
24 hours
Product Usage :
Fruits and vegetables etc.
Mesh belt layers :
4-12 layers
Type of action :
Flake, strip, block material
Description

Fungus Drying Grain Drying Temperature Uniform Continuous Belt Dryer

Description:

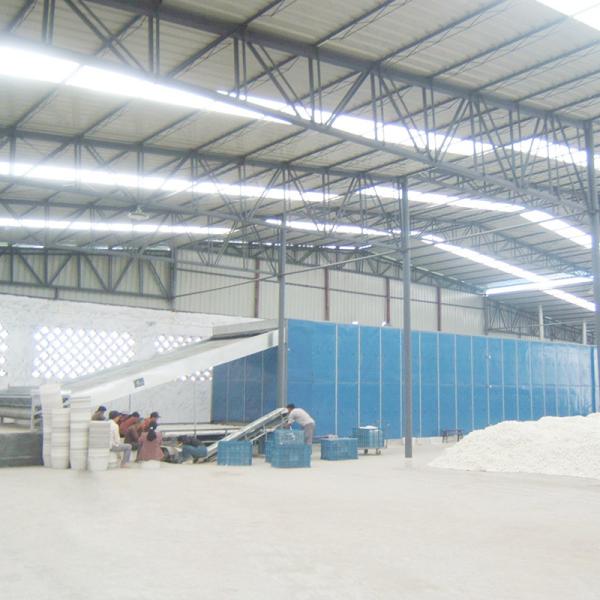

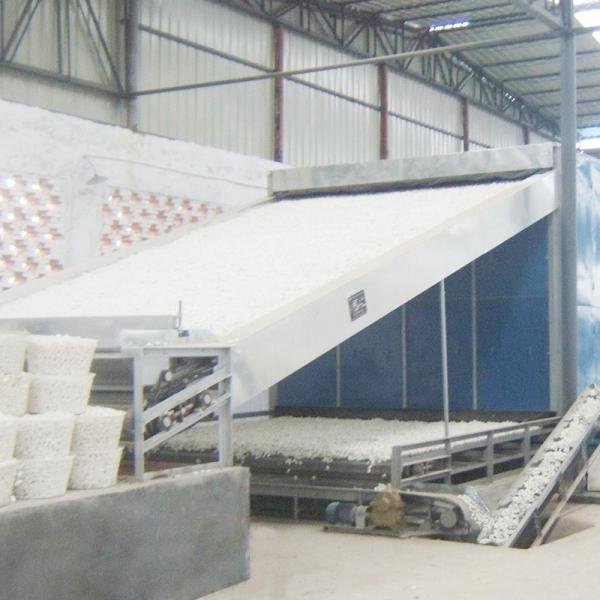

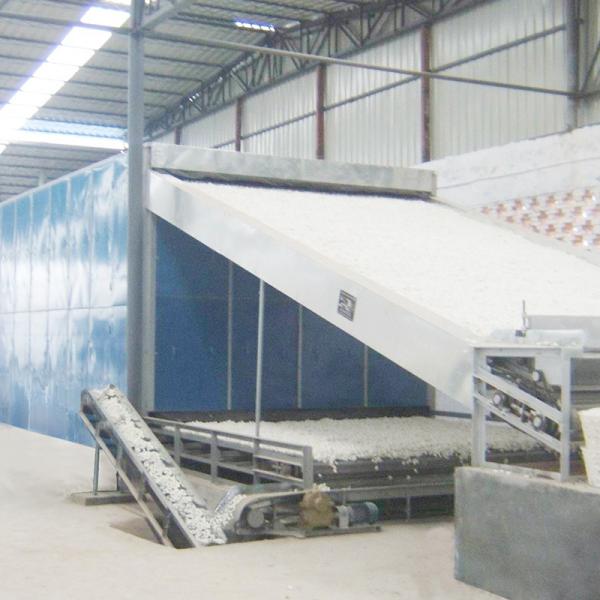

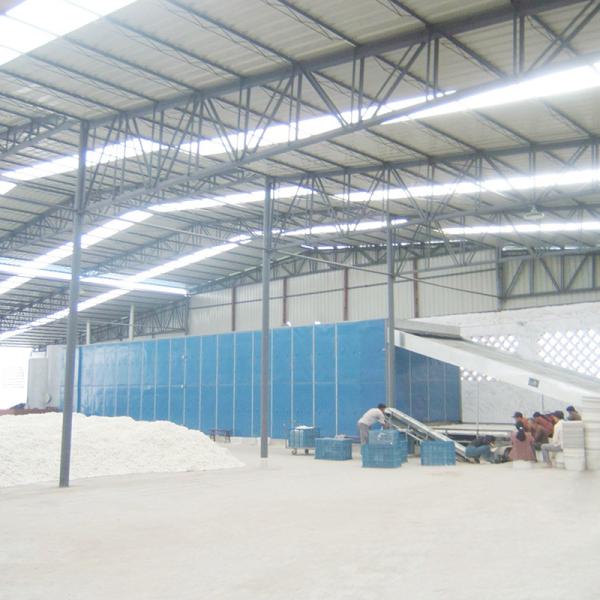

Fungus Grain Continuous Belt Dryer is a large-scale continuous hot air drying equipment using a multi-layer mesh belt structure. Turn over, the hot air is sent to the dryer through the induced draft fan to dry the material layer by layer, and the dried material is output from the discharge port.

Scope of application: Chinese medicinal materials: honeysuckle, skullcap, salvia, ni fang, Schisandra, ginseng, sheng di, study, language, even wings, wolfberry, etc.

Fungus Mushroom Grain Continuous Belt Dryer Multilayer Large Scale

Specifications:

Model DW2×6m DW2×8m DW2×10m DW2×12m DW2×14m DW2×16m
Area of dry 3 layers 29㎡ 40㎡ 51㎡ 62㎡ 73㎡ 83㎡
4 layers 39㎡ 53㎡ 68㎡ 83㎡ 97㎡ 110㎡
5 layers 48㎡ 66㎡ 85㎡ 103㎡ 121㎡ 138㎡
6layers 57㎡ 79㎡ 102㎡ 124㎡ 145㎡ 165㎡
Thickness of the material 50---150mm
Operation temperature 40---120℃
Drying time 0.5——5 hour or 3——15 hour
Motor power 1.1kw 1.5kw 1.5kw 1.5kw 2.2kw 3kw
Evaporation,capacity 200-400kg/h 300-600kg/h 400-700kg/h 500-800kg/h 600-1000kg/h 700-1200kg/h
Size of hot blast stove 1.2×2.5×1.7 1.2×2.7×1.9 1.3×3×2 1.3×3×3 1.6×3.5×2.2 1.6×3.7×2.2
Fan 8C-15kw 10C-15kw 10C-22kw 10C-37kw 12C-30kw 12C-45kw
Output conveyor 1.1kw
Total power 18kw 18.4kw 26kw 41kw 35.1kw 46.7kw

MATERIAL APPLICATION

Fungus Mushroom Grain Continuous Belt Dryer Multilayer Large Scale

COMPANY PROFILE

Fungus Mushroom Grain Continuous Belt Dryer Multilayer Large Scale

PATENT CERTIFICATE

Fungus Mushroom Grain Continuous Belt Dryer Multilayer Large Scale

SHIPMENT AND PACKGAGE

Packaging And Delivery Details:

1. Standard import and export wooden case

2. According to customer requirements, the packaging method can be negotiated.

Fungus Mushroom Grain Continuous Belt Dryer Multilayer Large Scale
