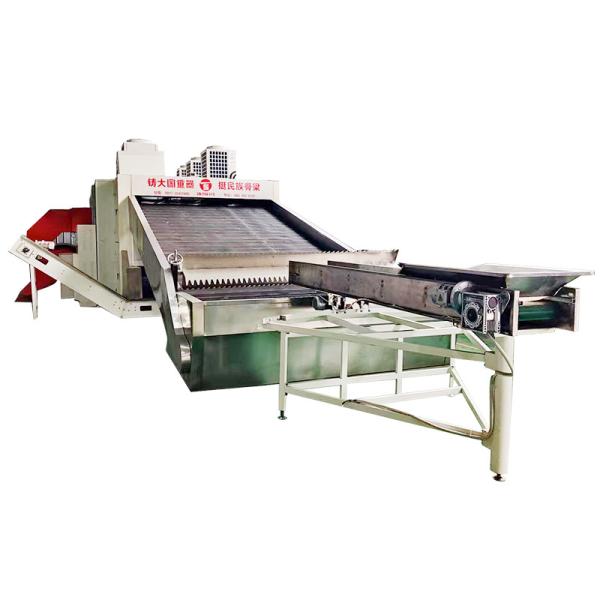

High Efficiency Chili Continuous Belt Dryer Large Scale Production
High Efficiency Chili Continuous Belt Dryer Large Scale Production
High Efficiency Chili Continuous Belt Dryer Large Scale Production
High Efficiency Chili Continuous Belt Dryer Large Scale Production
High Efficiency Chili Continuous Belt Dryer Large Scale Production
High Efficiency Chili Continuous Belt Dryer Large Scale Production
High Efficiency Chili Continuous Belt Dryer Large Scale Production
High Efficiency Chili Continuous Belt Dryer Large Scale Production
High Efficiency Chili Continuous Belt Dryer Large Scale Production
High Efficiency Chili Continuous Belt Dryer Large Scale Production
High Efficiency Chili Continuous Belt Dryer Large Scale Production
High Efficiency Chili Continuous Belt Dryer Large Scale Production
Specifications
Brand Name :
ShouKe
Certification :
ISO SGS
Place of Origin :
Sichuan
MOQ :
1
Price :
$19900-39900 Sets
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Sets Years
Delivery Time :
10 Work Days
Temperature range :
50-120℃
Humidity range :
10% to 90% RH
Conveyor speed :
0.2 to 2.0m/min
Control system :
PLC and touch screen
Heating source :
Electric/gas/steam
Air velocity :
2.0-10.0m/s
Description

High Efficiency Chili Continuous Belt Dryer Large Scale Production

Description:

Innovative Continuous Belt Dryer for Chili:

Our advanced continuous belt dryer is engineered to provide unparalleled performance for chili processing applications. Equipped with state-of-the-art airflow technology and precise temperature control, this drying solution ensures optimal drying results for a wide range of chili varieties.

High Efficiency Chili Continuous Belt Dryer Large Scale Production

Specifications:

Model DW2×6m DW2×8m DW2×10m DW2×12m DW2×14m DW2×16m
Area of dry 3 layers 29㎡ 40㎡ 51㎡ 62㎡ 73㎡ 83㎡
4 layers 39㎡ 53㎡ 68㎡ 83㎡ 97㎡ 110㎡
5 layers 48㎡ 66㎡ 85㎡ 103㎡ 121㎡ 138㎡
6layers 57㎡ 79㎡ 102㎡ 124㎡ 145㎡ 165㎡
The thickness of the material 50---150mm
Operation temperature 40---120℃
Drying time 0.5——5 hour or 3——15 hour
Motor power 1.1kw 1.5kw 1.5kw 1.5kw 2.2kw 3kw
Evaporation, capacity 200-400kg/h 300-600kg/h 400-700kg/h 500-800kg/h 600-1000kg/h 700-1200kg/h
Fan 8C-15kw 10C-15kw 10C-22kw 10C-37kw 12C-30kw 12C-45kw
Output conveyor 1.1kw
Total power 18kw 18.4kw 26kw 41kw 35.1kw 46.7kw

MATERIAL APPLICATION

High Efficiency Chili Continuous Belt Dryer Large Scale Production

COMPANY PROFILE

High Efficiency Chili Continuous Belt Dryer Large Scale Production

PATENT CERTIFICATE

High Efficiency Chili Continuous Belt Dryer Large Scale Production

SHIPMENT AND PACKGAGE

Packaging And Delivery Details:

1. Standard import and export wooden case

2. According to customer requirements, the packaging method can be negotiated.

High Efficiency Chili Continuous Belt Dryer Large Scale Production
