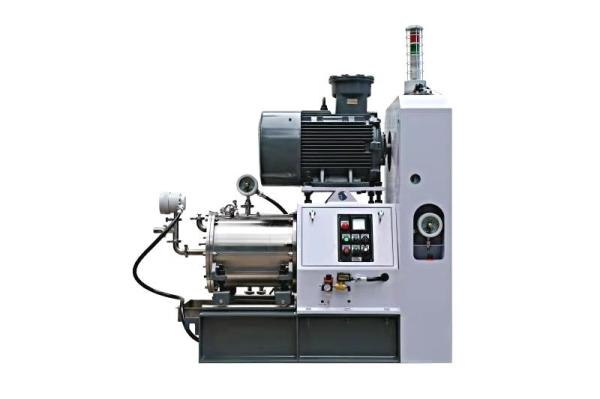

37kw 20L Horizontal Bead Mill Wet Grinding Mill With Ceramics Material
37kw 20L Horizontal Bead Mill Wet Grinding Mill With Ceramics Material
37kw 20L Horizontal Bead Mill Wet Grinding Mill With Ceramics Material
37kw 20L Horizontal Bead Mill Wet Grinding Mill With Ceramics Material
Specifications
Brand Name :
AllWin
Model Number :
AS20 AS30
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
USD36000--USD50000/set
Payment Terms :
T/T, MoneyGram, Western Union
Supply Ability :
30sets /month
Delivery Time :
30-40 Working Days
Packaging Details :
Wooden boxes
Power :
37 KW 45kW
Voltage :
380V and Customized
litre :
20L 30L
Inner chamber material :
SIC inner chamber
Application :
Digital ink, UV ink print ink
Type :
Pin type structure
Size of grinding medium :
0.3-0.5 mm
Description

37kw 20L Horizontal Bead Mill Wet Grinding Mill With Ceramics Material

These ceramics nano grinding mills are pins type ,which is better than normal mills because the silicon carbide ceramics has greater heat rejection performance, and wear-resisting property, The grinding efficiency is higher 15-30% than traditional mill machines; the combined disperser can rapidly increase dispersing efficiency.

The main feactures of Horizontal sand mill:

1.greater heat rejection performance and wear-resisting property of silicon carbide ceramics

2. better temperature control and longer work life

3. fineness can reach to less than 5um, much successfully experience to reach to 400-500 nanometers

4. higher production efficiency with lower energy cost and labor cost.

The Technical Data ot Wet Milling Equipment

Nomain parametersAS20Note
1 Explosion-proof motor kW37kW ( Ex)
2

Effective volume of

grinding chamber (L)

20
3Water pressure (MPa)0.3
4Cooling water consumption (L/min)2.5 -3m3/hAdvise offer the Cooling water less 10°C
5Dimensions:L*W*H (mm)1940*900*1940
6Weight (kg)1800

The Configuration instructions

NoMain partsAS20 Explosion-proofNotes
1Outter chamber304 stainless steel
2Inner chamberSilicon Carbide Ceramics
3Dispersing shaft40Cr with hard chromium plating
4Dispersing diskwear resistant steel, ceramics, or others
5Feeding and discharging end covers on the cylinder304 stainless steel
6Turbine centrifugal separator and pegs304 stainless steel and YG6 pges
7Static discharge screen ringWire Wound screen ring with 304.Gaps: 0.5mm.calculate according to your viscosity or grinding medium
8Mechanical seal

Intelligent double mechanical

seal with mandatory

lubricating-cooling system
9Feeding pump1” ARO diaphragm pump;

10

Appliance configurationExplosion-proof machine. Explosion-proof parts: operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves.
11Fasteners and connecting parts

Stainless steel clamp-type

connecting parts

Quick and convenient

The Application filed:
LFP Lithium battery industry;
Skin care industry;
Cosmetics industriy;
Pharmaceutical industry
MLCC


The package and shipping: Be covered with anti-abrasion film and then packed in wooden boxes, then seashipping by FCLor LCL.

37kw 20L Horizontal Bead Mill Wet Grinding Mill With Ceramics Material

If need more detailed information and Price, please don't hesitate contact us, Also Warmly welcome to visit us.
