Energy Saving 50L 100L Wearable Steel Wet Grinding Horizontal Bead Mill For Paint Coating Pesticide SC Food Processing​

The main introduction:

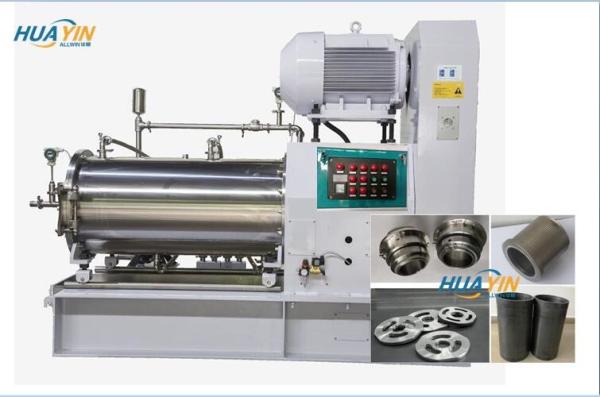

This bead mills are main consists of chamber and disc dispersing system. The double end mechanical sealing with indepent technology could resistant to more than 1600 kinds of solvents. The series have great flow rate and super fine discharging, the finally fineness can be reach 1um for D90 .The cooling efficiency is better than normal mills because the sectional double spiral water course is more beneficial to heat exchange. The grinding efficiency is higher 15-30% than traditional mill machines; the combined disperser can rapidly increase dispersing efficiency.All the materials of contact parts could be chose from wearable steel, stainless steel, PU and ceramics for meeting different requirements.

The main introduction of Bead Mill Machine

1. The structure is compact and stable: the motor is placed on the upper part, the grinding chamber is placed on the lower part, and the total height of the equipment is low. More than 20L large model mills with chamber slide rail for easy maintenance.

2. Double mechanical seal: It has 2 patented technologies, with forced coolant, sealing ring resistant to 1600 kinds of solvents, coolant is compatible with materials, no pollutants, and reliable operation.

3. Discharge separation system: Large flow, no blocked: dynamic hollow rotor-super large area slot separator uses dynamic centrifugal force separation principle. Use of extremely small grinding beads (0.3 to 3 mm).No export blockage occurs under high flow conditions. Good heat dissipation, narrowest particle size distribution.

4. Classic disc dispersing: 3 side discs, 4 side discs, curved discs, lumbar discs and eccentric discs, different materials can be selected, such as stainless steel, alloy steel, ceramic, hard alloy &PU etc.

5. Grinding inner chamber: It has two patented technologies: chamber cooling and disassembly. The chamber volume is from 0.6-300L. The materials are stainless steel, alloy steel, ceramic, hard alloy & PU, etc.

6. Electrical display and control: basic column of operation column, more integrated higher control system and PLC Allwin data acquisition hardware and software system, and more process control and process optimization system.

The main parameter

1. Explosion proof motor: 55kW 380V 50HZ

2. Effective volume of grinding chamber: 20L

3. Water pressure(Mpa): 0.3

4. Cooling water consumption: 2.5 -3m³/h

5. Dimension (L*W*H): 2000*900*2000mm

6. Weight: 2200Kg

No	Main parts	SP200 Explosion-proof	Notes
1	External vessel	304 stainless steel
2	Inner grinding vessel	Wearable steel
3	Dispersing shaft	40Cr with hard chromium plating
4	Dispersing disk (agitator disk)	PU coated 304 stainless steel,
5	Feeding and discharging end covers on the cylinder	304 stainless steel
6	Static discharge screen ring	Wire Wound screen ring with 304.Gaps: 0.5mm.
7	Mechanical seal	Intelligent double mechanical seal with mandatory lubricating-cooling system

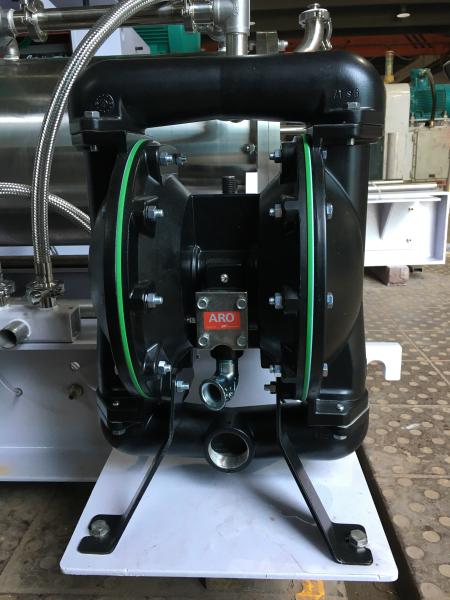

8	Feeding pump	1” ARO diaphragm pump;
9	Appliance configuration	Explosion-proof machine, suitable for water base materials, motor 15kW. Explosion-proof parts: operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves with NO ex electrical contacts., Control system (button type)
10	Fasteners and connecting parts	Stainless steel clamp-type connecting parts	Quick and convenient

The Detailed Production show

The Packing and Shipping

( The machine will be covered with anti-abrasion film and then packed in plywood cases. then sea shipping by FCL or LCL.)

After sales service:

1. Video instructions for installation and running test, if need, we will arrange engineer to your factory.

2. 12-24H feedback any customers questions, firstly offer the video help you solving, if need arrange maintenance engineer for you.

The Related production (Dispersing machine and Tank)
