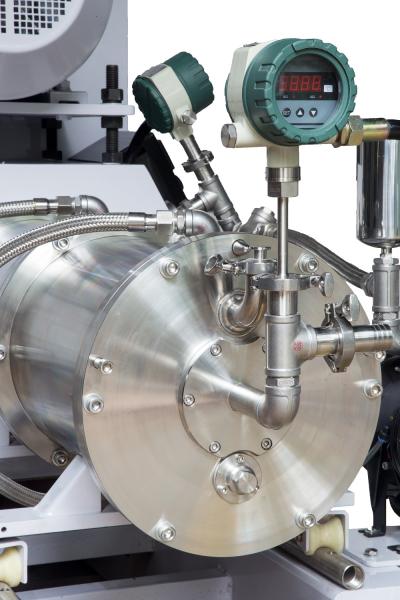

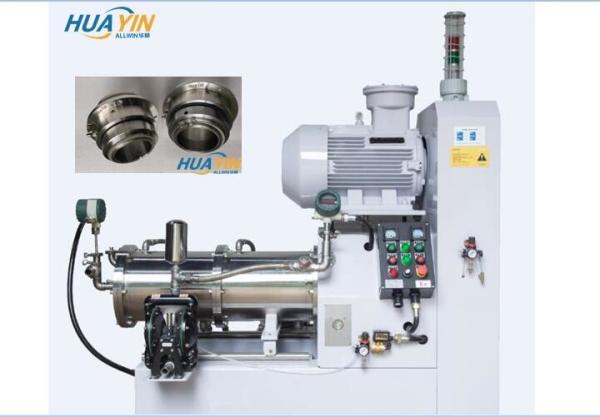

10um Bead Grinding Machine 50L Sand Mill For Paint
10um Bead Grinding Machine 50L Sand Mill For Paint
10um Bead Grinding Machine 50L Sand Mill For Paint
10um Bead Grinding Machine 50L Sand Mill For Paint
Specifications
Brand Name :
AllWin
Model Number :
SP30 SP50
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
USD4000--USD21800/set
Payment Terms :
T/T, MoneyGram, Western Union
Supply Ability :
50sets /month
Delivery Time :
20-30 Working Days
Packaging Details :
Wooden boxes
Power :
30kW 37kW
Voltage :
380
litre :
30L 50L
Inner chamber material :
Silicon Carbide Ceramics
Warranty :
1 year
Production capacity :
700-1200kg/h
Color :
White or you need
Experience :
28years
Description

5-10um High Performance Silicon Carbide Ceramics 30L Horzontal Bead Mill With 1" Feed Pump

The main feactures:

1.Different materials could meeting different needs:

Adopted high abrasive-resisting materials: silicon carbide ceramics, like hard alloy, 9Cr18Mo alloy steel, SUS 304 stainless steel, to guarantee strengthen working life of bead mill machine. Meanwhile we suggest the suitable grinding beads to match with the inner chamber materials.

2. Decrease the temperature:

Applied self-owned double spiral cooling technology to enhance the space of heat rejection, with superior material with good thermal conductivity and lower the temperature before cooling come in pipe. Also temperature is lower if choose the inner chamber of Silicon carbide ceramics.

3. Strengthen the fineness:

The different fineness after grinding can be reached for your different demands, the smallest grinding media of 0.1mm with 200-300nm.

4. Enhance the efficiency:

High efficiency with energy saving, have grinding and dispersing technology, normally the efficiency is higher 10-30% than traditional machines. Also it's more better if choose the temperature is better.

5. Reduce the workforce with indicator light

One worker could easily operate and manage 5-10 sets mill machines if mills add the indicator light, decrease the cost of human. The mill machines will add more if need central control system. It will be automation and intelligence and saving more labor cost.

The Technical Data

No main parameters SP30 Note
1 Non Explosion-proof motor kW 30kW (Non Ex)
2

Effective volume of

grinding chamber (L)

 30
3 Water pressure (MPa) 0.3
4 Cooling water consumption (L/min) 2.5 -3m3/h Advise offer the Cooling water less 10°C
5 Dimensions:L*W*H (mm) 1940*900*2000
6 Weight (kg) 1400

The Configuration instructions

No Main parts SP 30 Non Explosion-proof Notes
1 Outter chamber 304 stainless steel
2 Inner chamber Silicon Carbide Ceramics
3 Dispersing shaft 40Cr with hard chromium plating
4 Dispersing disk wear resistant steel
5 Feeding and discharging end covers on the cylinder 304 stainless steel
6 Turbine centrifugal separator and pegs 304 stainless steel and YG6 pges
7 Static discharge screen ring Wire Wound screen ring with 304.Gaps: 0.5mm.
8 Mechanical seal

Intelligent double mechanical

seal with mandatory

lubricating-cooling system
9 Feeding pump 1.5” ARO diaphragm pump;

10

 Appliance configuration Non Explosion-proof machine, suitable for water base materials, motor 55kW. Non Explosion-proof parts: operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves with NO ex electrical contacts., Control system (button type)
11 Fasteners and connecting parts

Stainless steel clamp-type

connecting parts

 Quick and convenient

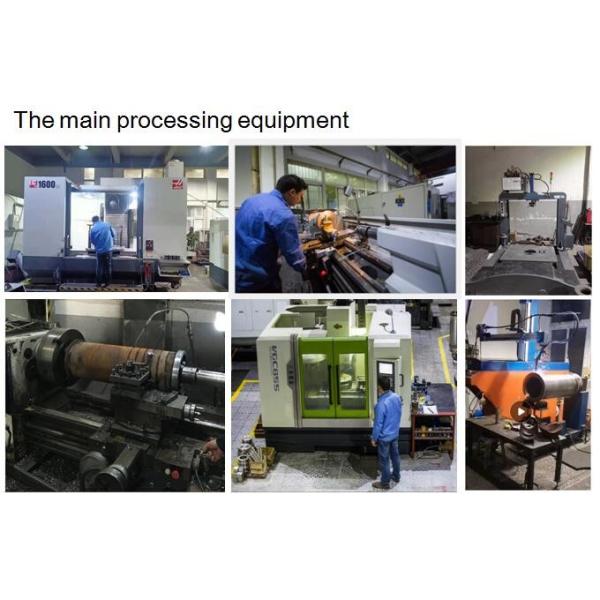

The Detailed Production show
10um Bead Grinding Machine 50L Sand Mill For Paint
10um Bead Grinding Machine 50L Sand Mill For Paint

The Application filed: Paint and Coating,Pigment and dyestuffs,Printing inks/ Digital inkjet ink,Gravure inks,Medicine and Cosmetics,Pesticide and Agrochemical industry,Food and food processing,Non-metallic minerals,HI-Tech nanometer products,Paper and Paper making chemical.

The After sales service:

1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.

2. 12-24H feedback any customers questions, firstly offer the video help you solving, if need arrange maintenance engineer for you.

The package and shipping: Be covered with anti-abrasion film and then packed in wooden boxes, then seashipping by FCLor LCL.

Also offered the related products: Dispersing machine & the Zirconical beads, This 2 products are much important for the Bead mills, this materials is pre-dispersing well, It's better for grinding with bead mill after pre-dispesing well. Also the zirconia beads (grinding beads with different size for meeting different finally fineness.

If need more detailed information and Price, please don't hesitate contact us, Also Warmly welcome to visit us.
