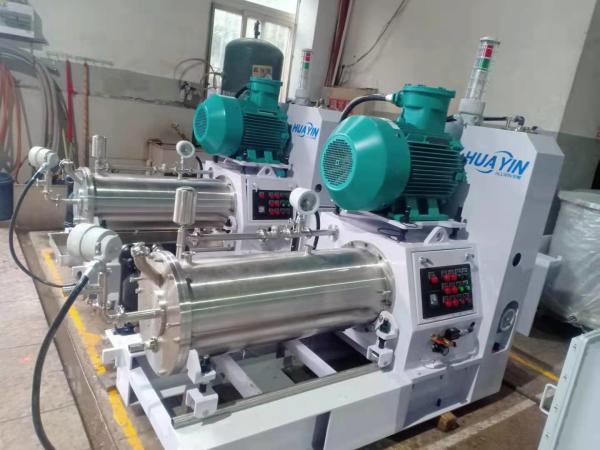

Disk 30L Horizontal Bead Mill 37kW Paint Grinding Machine
Disk 30L Horizontal Bead Mill 37kW Paint Grinding Machine
Disk 30L Horizontal Bead Mill 37kW Paint Grinding Machine
Disk 30L Horizontal Bead Mill 37kW Paint Grinding Machine
Disk 30L Horizontal Bead Mill 37kW Paint Grinding Machine
Disk 30L Horizontal Bead Mill 37kW Paint Grinding Machine
Specifications
Brand Name :
AllWin
Model Number :
SP30 SP50 SP100
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
USD13000--USD50000/set
Payment Terms :
T/T, MoneyGram, Western Union, L/C,
Supply Ability :
30sets /month
Delivery Time :
20-30 Working Days
Packaging Details :
Wooden boxes
Power :
30kW 37kW 55kW
Litre :
30L 50L 100L
Inner chamber material :
304 stainless steel or you need
Warranty :
1 year
Color :
White or you need
Experience :
28years
Explosion :
Non explosion or explosion
Application :
Coat, paint, ink, dye, pesticide SC,titanium dioxide, food and addictive
Related Products :
Zirconium bead, dispersing mixer
Description

Non Explosion Durable Disk Disc Universal Grinder Horizontal Bead Mill Machine​

The main introduction:

This sand/bead mill machines mainly consists of 6 systems:

  • driving system
  • input system
  • grinding system
  • cooling system
  • barrel and output system
  • lubrication system

The double end mechanical sealing with independent technology could resist more than 1600 kinds of solvents.

The series have great flow rate and super fine discharging, the finally fineness can be reach 1um for D90 .

The cooling efficiency is better because of highly effective heat rejection for sectional double spiral water course

The grinding efficiency is higher 15-30% than traditional mill machines; the combined disperser can rapidly increase dispersing efficiency. The materials of contact parts could be choosen from wearable steel, stainless steel, PU and ceramics for meeting different requirements.

The Technical Data:

No main parameters SUPER Series Note
1 Motor Power kW 30 /37 /55 (Non Ex) explosion for choice
2

Effective volume of

grinding chamber (L)

 30/ 50/ 100 Other volumes can be customized
3 Water pressure (MPa) 0.3
4 Cooling water consumption (L/min) 2.5 -3m3/h Advise offer the Cooling water less 10°C
5 Dimensions:L*W*H (mm) ---- different for materials and volumes
6 Weight (kg) 1200---18000

The Configuration instructions:

No Main parts SP series non explosion-proof Notes
1 Material of External vessel SUS 304 stainless steel
2 Material of Inner grinding vessel 9Cr18Mo Alloy Steel, SUS 304 stainless steel
3 Material of Dispersing shaft 40Cr with hard chromium plating Brand: NSK
4

Material of Dispersing disk

(agitator disk)

 SUS 304 stainless steel, PU coated with SUS 304 stainless steel choosen according to different applications
5 Feeding and discharging end covers on the cylinder SUS 304 stainless steel
6 Static discharge screen ring Wire Wound screen ring with 304.Gaps: 0.5mm.
7 Mechanical seal

Intelligent double mechanical seal with mandatory

screwing-cooling system
8 Feeding pump 1” / 1.5"ARO diaphragm pump IngersoII Rand

9

 Appliance configuration

non explosion-proof motor, motor power 30 / 37 / 55kW.

other non explosion-proof parts: operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves with NO ex electrical contacts.
10 Control system

button type column or PLC

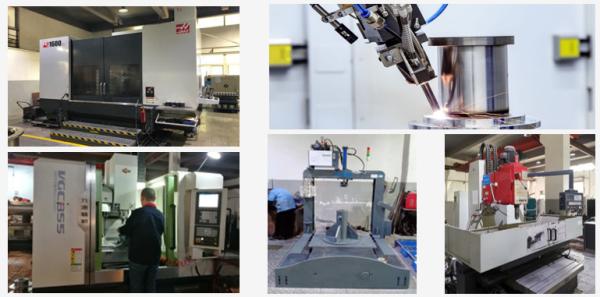

The Production show :
Disk 30L Horizontal Bead Mill 37kW Paint Grinding Machine

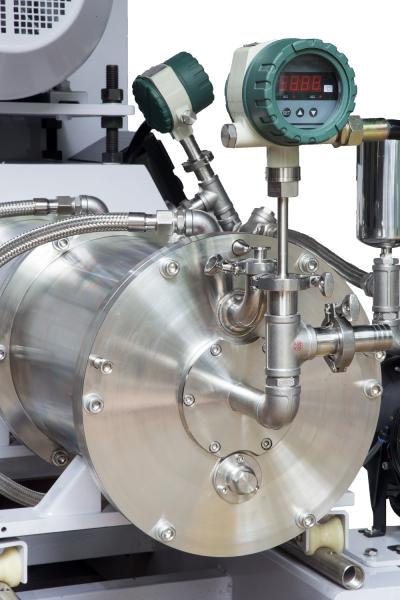

Different grinding structures and materials
Disk 30L Horizontal Bead Mill 37kW Paint Grinding Machine

The packing (firstly anti-abrasion film and then packed in wooden boxes)

Disk 30L Horizontal Bead Mill 37kW Paint Grinding Machine

The related products:

The zirconia bead from 0.3-3.0mm

Disk 30L Horizontal Bead Mill 37kW Paint Grinding Machine

FAQ:

Q1: Are you a trading company or manufacturer?

A1: We are the manufacturer.

Q2: Where is your company and factory located? How can I visit you?

A2: Our company is located in Tongxing industrial zone in Caijia Town, Beibei, Chognqing, China. Post code: 400709. It takes about 0.5 hours from Airport to our coampny by car. All our clients, from home or abroad, are warmly welcome to visit us!

Q3: Do you have own R&D team?

A3: Yes, we have 12 engineers, and our products could be customized for your requirements.

Q4: What is your after-sale service?

A4: we offer 100% guarantee on our product and agree 1:1 replace defective products. Firstly we offer the video instruction for maintenance for you ,if need ,we will arrange engineer for you.

If need more detailed information, please don't hesitate contact us, Also Warmly welcome to visit us.
