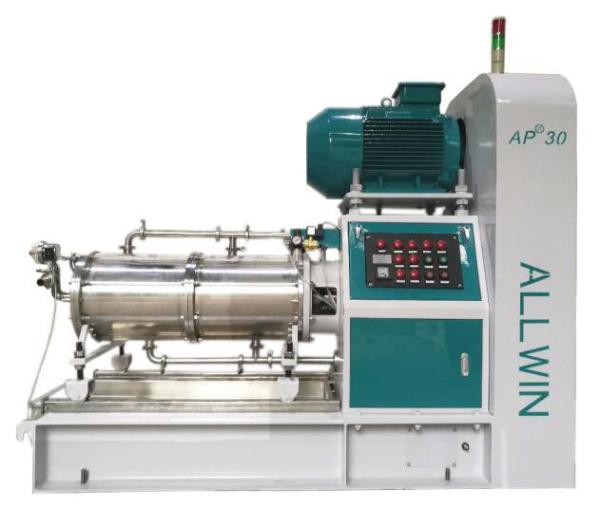

Ap50 Pigment Grinding Machine Paint 37kw Disk Mill Machine
Ap50 Pigment Grinding Machine Paint 37kw Disk Mill Machine
Ap50 Pigment Grinding Machine Paint 37kw Disk Mill Machine
Ap50 Pigment Grinding Machine Paint 37kw Disk Mill Machine
Specifications
Brand Name :
AllWin
Model Number :
AP50 AP100
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
USD4000--USD23500/set
Payment Terms :
T/T, Western Union, MoneyGram
Delivery Time :
20-30 working days
Packaging Details :
wooden boxes
Material of inner chamber :
Silicon Carbide Ceramics
Power :
37kW
fineness :
5-10um
Explosion :
Non EX-proof
Color :
blue and white
Electric :
ABB or delixi
Capacity :
500-800kG
Weight :
1500kg
Warranty :
1 years, Video Technical support，online support
Description

37kW AP50 Disc Type Paint Production Line Horizontal Bead Mill

The main introduction:

This bead mills are main consists of chamber and disc dispersing system. The double end mechanical sealing with indepent technology could resistant to more than 1600 kinds of solvents. The series have great flow rate and super fine discharging, the finally fineness can be reach 1um for D90 .The cooling efficiency is better than normal mills because the sectional double spiral water course is more beneficial to heat exchange. The grinding efficiency is higher 15-30% than traditional mill machines; the combined disperser can rapidly increase dispersing efficiency.All the materials of contact parts could be chose from wearable steel, stainless steel, PU and ceramics for meeting different requirements.

The grinding media is extremely from 0.3-3.0mm are suitable for this series mills. We recommend the 95% zirconium beads. The discharging is great flow with bigger screen rings which can be easily cleaned and removed.

The main parameter:

NO. Main parameter AP50 Note
1 Main motor power(kW) 37 3phase,380V 50Hz
2

Effective Volume

(L)

 50
4 Water presure Mpa 0.3
5

Cooling water consumption

(L/min)

2.5 -3m3/h

The lower limit can be

selected for the water consumption, in case that the cooling water temperature is lower than 10℃.
6 Overall dimension (mm) 2000*820*1900
7 Weight (kg) 1500

The Configuration instructions

NO. Main parts AP 50 Bead Mill Notes
1 Outer chamber 304 stainless steel
2 Inter chamber silicon carbide ceramics
3 Dispersing shaft 40Cr with hard chromium plating
4 Dispersing disk 304 Stainless steel
5 Mechanical seal Double Mechanical seal with Pressure of 0.45 Mpa
5 Feeding and discharging end covers on the cylinder 304 stainless steel
6 Turbine centrifugal separator and pegs 304 stainless steel and YG6 pges
7 Static discharge screen ring 304 stainless steel screen ring with 304.Gaps: 0.5mm.
8 Mechanical seal

Intelligent double mechanical

seal with mandatory

lubricating-cooling system
9 Feeding pump without pump,with appliance parts
10 Oil box Non-Vision the inner box
11 Appliance configuration Non Explosion-proof machine, suitable for water base materials, explosion-proof motor 30kW. Non Explosion-proof parts: operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves with Non EX-proof electrical contacts.
12 Fasteners and connecting parts

Stainless steel clamp-type

connecting parts

 Quick and convenient

The Detailed parts show:

Ap50 Pigment Grinding Machine Paint 37kw Disk Mill Machine

Ap50 Pigment Grinding Machine Paint 37kw Disk Mill Machine

Note:
1.We will recommend the suitable bead mills according to your information and demand, such as industry, fineness, temperature, viscosity,production capacity etcs.
2.The Materials of inner chamber and Dispersing disks can be chosed according to your different grinding materials and industries.
3.The control system will matching of different demand, such as PLC or traditional Button type.
If need more detailed information and price , please don't hesitate contact us, Also Warmly welcome to visit us.
