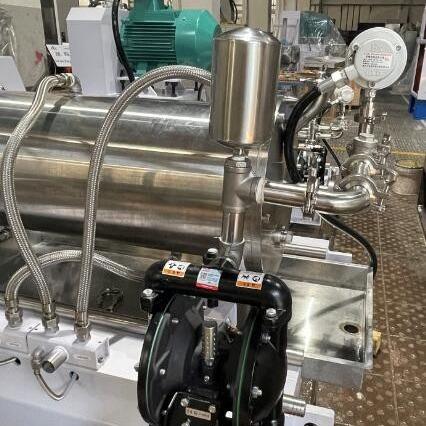

50L Horizontal Bead Mill For Pesticide SC 9Cr18MoV Steel Double Mechanical Seal
50L Horizontal Bead Mill For Pesticide SC 9Cr18MoV Steel Double Mechanical Seal
50L Horizontal Bead Mill For Pesticide SC 9Cr18MoV Steel Double Mechanical Seal
50L Horizontal Bead Mill For Pesticide SC 9Cr18MoV Steel Double Mechanical Seal
50L Horizontal Bead Mill For Pesticide SC 9Cr18MoV Steel Double Mechanical Seal
50L Horizontal Bead Mill For Pesticide SC 9Cr18MoV Steel Double Mechanical Seal
50L Horizontal Bead Mill For Pesticide SC 9Cr18MoV Steel Double Mechanical Seal
50L Horizontal Bead Mill For Pesticide SC 9Cr18MoV Steel Double Mechanical Seal
50L Horizontal Bead Mill For Pesticide SC 9Cr18MoV Steel Double Mechanical Seal
50L Horizontal Bead Mill For Pesticide SC 9Cr18MoV Steel Double Mechanical Seal
50L Horizontal Bead Mill For Pesticide SC 9Cr18MoV Steel Double Mechanical Seal
50L Horizontal Bead Mill For Pesticide SC 9Cr18MoV Steel Double Mechanical Seal
Specifications
Brand Name :
AllWin
Model Number :
SP50 SP100
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
USD20000--USD41500/set
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
30-40sets /month
Delivery Time :
30 working days
Packaging Details :
Wooden box
Materials :
9Cr18Mov Wearable Steel
Power :
37/55kW
Volume :
50-100litre
Fineness :
10-20Micron
Mechanical seal :
Double mechanical seal
Application :
ZnO Pesticide SC Paint and Coating
Explosion performance :
NON EX-proof
Weight :
1300-2500kg
Grinding structure :
Disk type
Feed pump :
1/ 1.5"ARO
Description

50L Horizontal Bead Mill For ZnO Pesticide SC 9Cr18MoV Steel Stable Double Mechanical Seal

SP50 100 Horizontal bead mill machine for is disk type with new shape , could reach 10-20micron and have higher 30% productin pacacity than traditinanl bead mill.

This type bead mill widely used in ZnO Pesticide SC Paint and Coating,could reach to 10-20um, with save more enegy and have higher production capacity.

Horizontal bead mill machines are one of the most important equipments in processing flow, and you can have many types of bead mill for option. While disk type is the most widely used, and ceramics cylinder chamber is the best for its great wear resistance and heat dissippation,especially for those which have tough requirement of grinding temperature and white color.


The main parameters of Bead Mill Machine:

No main parameters SP100 Note
1 Proof motor kW 55 kW (Non Ex-proof) Brand :Shanghai pinxingor Wannan
2

Effective volume of

Grindingchamber (L)

100
3 Water pressure (MPa) 0.3
4 Cooling water consumption (L/min)

.5 -3m3/h

 Advise offer the Cooling water less 10°C
5 Dimensions:L*W*H (mm) 2000*1200*1750
6 Weight (kg) 2000

The main instructions:

NO Items SP100 Bead mill Note
1 Core technologies Mechanical sealing

Third Intelligent double mechanical

seal with mandatory

withself-lubricating-cooling system(Better Cooling efficiency)
Inner Chamber SS316 Stainless steel
Grinding disk 304Stainless steel cover PU Disk type:8 pcs
Static discharge screen ring 304 stainless steel Dynamic turbine separator and screen ring with carbon steel ,Gap:0.3mm
2 Feeding and discharging end covers on the Chamber SUS304 Stainless steel
3 Bearing NSK Bearing
4 Feed pump G1.5 ”Pneumatic diaphragm pump ARO with Buffer tank Better than Gear pump
5 Outer chamber 304 stainless steel Easy clean
6 Dispersing shaft

40Cr with hard chromium plating

Dia:80mm
7 Electrical Appliances Motor 55kW Non Ex-proof Brand:Pinxing or Wannan
VDF without
Safety protection system Material temperature, chamber pressure, sealing liquid level, sealing liquid pressure
Electrical components Electrical box, pressure gauge, thermometer, solenoid valve, winding pipe with Non EX-proof
Electrical brand Delixi Brand
8 Cooling water pipeline Hose+ Hard tube
9 Trace slide 1sets for free

The Other related machines


50L Horizontal Bead Mill For Pesticide SC 9Cr18MoV Steel Double Mechanical Seal

The After sales service:

1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.

2. 12-24H feedback any customers questions, firstly offer the video help you solving, if need, arrange maintenance engineer for you.

The package and shipping: Be covered with anti-abrasion film and then packed in wooden boxes, then seashipping by FCLor LCL.

If any detailed information and price ,pls contact me, also warmly welcom to visit us.
