10000A Double Sided Automatic Battery Pack Spot Welder Machine For 18650 21700 32700 32140
10000A Double Sided Automatic Battery Pack Spot Welder Machine For 18650 21700 32700 32140
10000A Double Sided Automatic Battery Pack Spot Welder Machine For 18650 21700 32700 32140
10000A Double Sided Automatic Battery Pack Spot Welder Machine For 18650 21700 32700 32140
10000A Double Sided Automatic Battery Pack Spot Welder Machine For 18650 21700 32700 32140
10000A Double Sided Automatic Battery Pack Spot Welder Machine For 18650 21700 32700 32140
Specifications
Brand Name :
ACEY
Model Number :
ACEY-D300B
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 2160~15900/Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Delivery Time :
7~35 Days
Packaging Details :
Plywood Case
Warranty :
1 Year Warranty with Lifetime Support
After-sales Service :
24/7 Technical Support
Y-axis Travel :
500mm
Z-axis Travel :
400mm
Welding Power Supply :
10000A Transistor
Welding Head Drive Type :
Electric
Machine Weight :
350kg
Machine Dimensions :
L1020mm*W910mm*H1770mm
Description

10000A Transistor Electric Double-sided Automatic Battery Pack Spot Welder For 18650 21700 32700 32140

Product Description

ACEY-D300B automatic double-sided spot welding machine is built on an industrial-grade modular intelligent control platform. The system integrates an industrial PC, motion controller, high-precision servo motors, and precision linear modules to deliver high accuracy, strong flexibility, and fast response. Compared with traditional PLC and touchscreen control systems, it provides greater efficiency in production report generation, equipment communication and online integration, product model changeover, and process parameter adjustment. The machine is compatible with a wide range of cylindrical lithium cells, including 14500, 18650, 21700, 26650, 32700, and 33140, making it suitable for flexible and high-efficiency battery pack manufacturing.

Features

  • Supports seamless AutoCAD data import for welding program generation;
  • Automatically compensates for minor electrode position deviations;
  • Automatically monitors and records production data;
  • Automatically detects spatter, false welds, weak welds, and missed welds, with alarm and automatic machine stop;
  • Supports single-point, double-point, and three-point welding modes, with adjustable spacing for double- and three-point welding.

Main Technical Parameter

Applicable Cell Types Cylindrical lithium cells: 14500 / 18650 / 21700 / 26650 / 32700 / 33140
Compatible Module Size X: 0–500 mm / Y: 0–400 mm / Z: 50–140 mm
Control Method Motion controller
Operation & Functions Easy operation; weld point tracking; spatter, false weld, weak weld, and missing weld monitoring, recording, and alarm.
Welding Current 10000A
Welding Type Transistor
Cooling Method Forced air cooling
Operating Temperature -30°C to 50°C
Operating Humidity ≤ 90% RH
Air Supply Pressure 0.4–0.6 MPa
Power Supply AC 220V, 50Hz / 60Hz
Floor Load Capacity ≤ 200 kg/m²
Grounding Type Direct grounding
Site Requirements Clean environment, no strong electromagnetic interference
Installation Conditions Flat surface, no vibration or impact
Noise Level ≤ 80 dB
Machine Dimensions (L×W×H) Approx. 1150 × 900 × 1720 mm (subject to actual machine)
Machine Weight Approx. 360 kg
Machine Color Computer white (customizable)
Total Power Consumption ≤ 1.5 kW

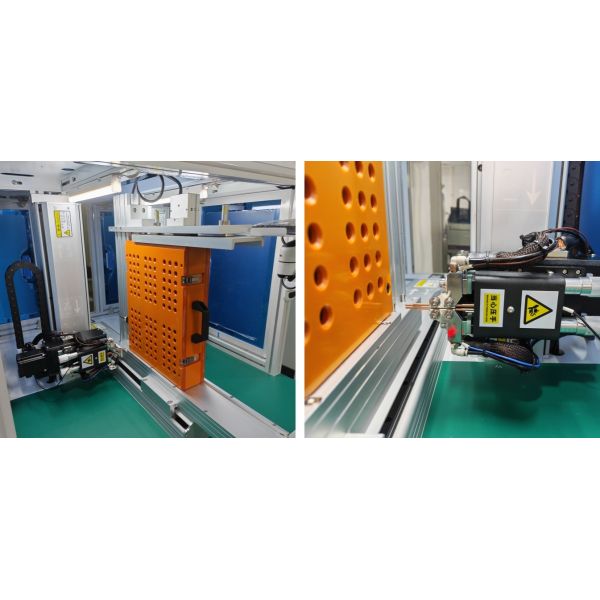

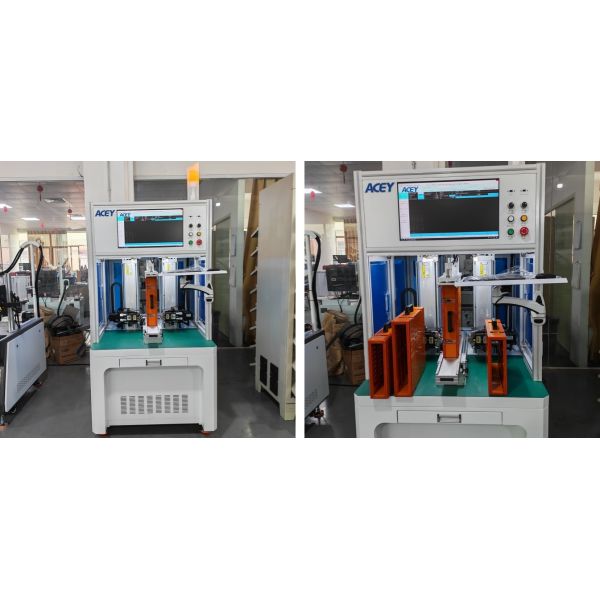

Product Display

10000A Double Sided Automatic Battery Pack Spot Welder Machine For 18650 21700 32700 32140

10000A Double Sided Automatic Battery Pack Spot Welder Machine For 18650 21700 32700 32140
