Specifications
Brand Name :
ACEY
Model Number :
ACEY-8000T
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 2160~3340/Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Delivery Time :
7~35 Days
Packaging Details :
Plywood Case
Warranty :
1 Year Warranty with Lifetime Support
After-sales Service :
24/7 Technical Support
Welding Power Supply :
8000A Transistor
Welding Head Drive Type :
Pneumatic
Max Thickness of Parallel Welding :
0.08 ~ 0.25mm
Input Power Supply :
AC220V±10% 50/60Hz
Machine Weight :
62kg
Machine Dimensions :
L810mm*W610mm*H1220mm
Description

8000A Transistor Pneumatic Pedal Manual Spot Welding Machine For Battery Pack



Product Description

ACEY-8000T is a compact spot welding machine for cylindrical battery pack assembly. Equipped with an 8000A transistor welding power supply, it supports cells such as 18650, 21700, 26650, 32700 and 33140, and is suitable for welding nickel and nickel-plated steel strips. With intelligent weld monitoring, foot pedal operation, and optional pneumatic or electric welding heads, it is ideal for small-batch battery packs used in e-bikes, scooters, and similar applications.


Features

  • Industrial-grade modular intelligent control platform
  • Automatic detection of spatter, false welds, weak welds, and missed welds
  • Real-time monitoring with alarm and record functions
  • Improved weld consistency and overall product quality
  • Higher production efficiency with reduced rework
  • Ideal for small-batch and flexible welding applications


Main Technical Parameter

Max output power of transformer 35 KVA
Output max short circuit current 8000A
Floating voltage 10V
Control mode constant current control
Cooling mode forced air cooling
Setting data group 99goups
Use electronic parts, battery nickel plate, enameled wire, sensor wire, halogen lamp, etc
Max thickness of parallel welding 0.08-0.25mm
Max thickness of upper and lower butt welding 0.15-0.3mm
Machine weight 62kg
External dimension L810mm*W610mm*H1220mm
Input power AC220V±10% 50/60Hz
Transistor welding power supply
Communication interface RS485
Independent external touch screen interface: optional external 7-inch touch screen
(DMT80480T070-18WT), the communication mode is RS485
External control function: It can be controlled by an external industrial computer/PLC control, and cooperate with the automatic production of the machine
Dimensions L430MM*W185MM*H400MM
Weight: 25KG
Working voltage Single phase AC220V±10% 50Hz
Output voltage 1-6V DC
Output current Maximum short-circuit current 8000A
Cooling method forced air cooling
Valve power supply DC 24V±10% current <150mA
Environment temperature -10℃~55℃
Relative humidity below 80%

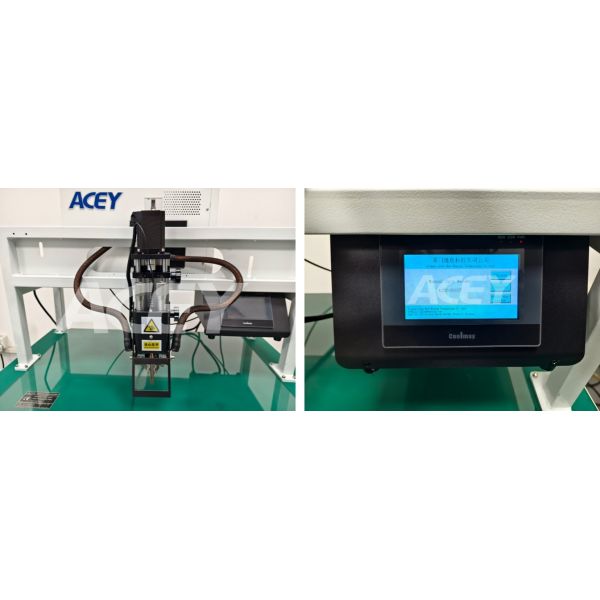

Product Display

8000A Transistor Pneumatic Pedal Manual Spot Welding Machine For Battery Pack


8000A Transistor Pneumatic Pedal Manual Spot Welding Machine For Battery Pack
