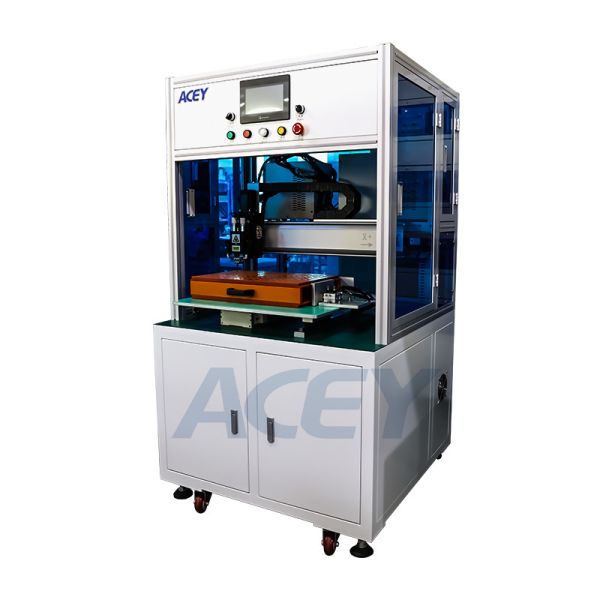

5000A DC Pneumatic Single Sided Automatic Spot Welding Machine For Battery Pack
5000A DC Pneumatic Single Sided Automatic Spot Welding Machine For Battery Pack
5000A DC Pneumatic Single Sided Automatic Spot Welding Machine For Battery Pack
5000A DC Pneumatic Single Sided Automatic Spot Welding Machine For Battery Pack
5000A DC Pneumatic Single Sided Automatic Spot Welding Machine For Battery Pack
5000A DC Pneumatic Single Sided Automatic Spot Welding Machine For Battery Pack
Specifications
Brand Name :
ACEY
Model Number :
ACEY-S200A
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 2160~7645/Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Delivery Time :
7~35 Days
Packaging Details :
Plywood Case
Warranty :
1 Year Warranty with Lifetime Support
After-sales Service :
24/7 Technical Support
Y-axis Travel :
500mm
Z-axis Travel :
400mm
Welding Power Supply :
5000A DC Inverter
Welding Head Drive Type :
Pneumatic
Machine Weight :
280kg
Machine Dimensions :
L900mm*W900mm*H1600mm
Description

5000A DC Pneumatic Single-sided Automatic Spot Welding Machine For Battery Pack

Product Description

ACEY-S200A is designed for factory battery pack spot welding and assembly, supporting multi-parallel and multi-series configurations using 14500, 18650, 21700, 26650, and 32700 cylindrical cells. It is suitable for applications such as power tool batteries, electric vehicle and scooter batteries, and energy storage battery packs. Compared with manual spot welding, the machine significantly improves welding efficiency and consistency. Its user-friendly design simplifies operation and parameter adjustment, while the integrated component layout results in a cleaner and more compact appearance.

Features

  • Industrial-grade modular intelligent control platform
  • Touchscreen interface combined with motion controller, high-precision servo motors, and precision modules
  • High positioning accuracy, strong flexibility, and fast operating speed
  • More efficient than traditional PLC + HMI systems for report generation, device communication, and online integration
  • Quick product changeover and easy modification of production parameters
  • Seamless import of AutoCAD data for welding program generation
  • Automatic compensation for minor electrode position deviations
  • Real-time monitoring and recording of production data
  • Automatic detection and analysis of spatter, false welds, weak welds, and missed welds with stop-and-alarm protection

Main Technical Parameter

Item Specification
Applicable Battery Types Cylindrical lithium-ion cells: 14500, 18650, 21700, 26650, 32700, 33140, etc.
Compatible Module Size X: 0–500 mm, Y: 0–400 mm, Z: 50–140 mm
Control System Motion controller
Operation & Monitoring Easy operation with weld point tracking; detection, recording, and alarm for spatter, false welds, and missed welds
Welding Current Options 5000A / 8000A / 10000A
Welding Power Supply Type DC welding machine or transistor welding machine (optional)
Welding Modes Single-point, double-point, and three-point welding; adjustable spacing for double- and three-point modes
Cooling Method Forced air cooling

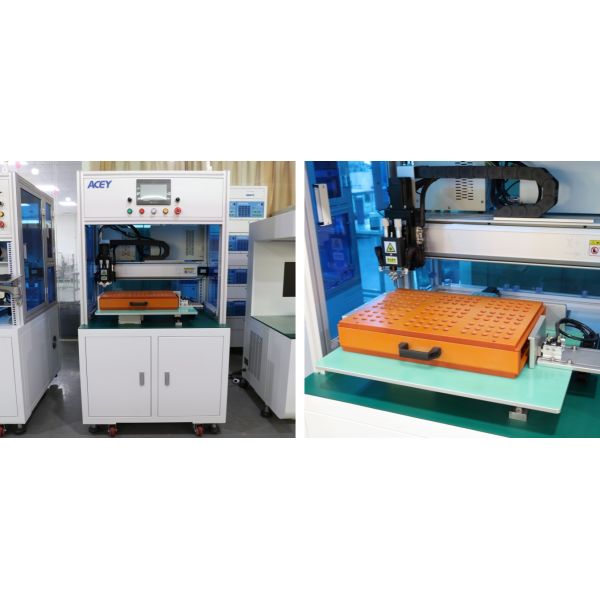

Product Display

5000A DC Pneumatic Single Sided Automatic Spot Welding Machine For Battery Pack

5000A DC Pneumatic Single Sided Automatic Spot Welding Machine For Battery Pack
