Specifications
Brand Name :
ACEY
Model Number :
ACEY-5000D
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 2160~2660/Set (negotiable)
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Delivery Time :
7~35 Days
Packaging Details :
Plywood Case
Warranty :
1 Year Warranty with Lifetime Support
After-sales Service :
24/7 Technical Support
Welding Power Supply :
5000A DC Inverter
Welding Head Drive Type :
Pneumatic
Max Thickness of Parallel Welding :
0.03mm~0.5mm
Input Power Supply :
380V-50Hz/60Hz
Machine Weight :
67kg
Machine Dimensions :
L900mm*W650mm*H1162mm
Description

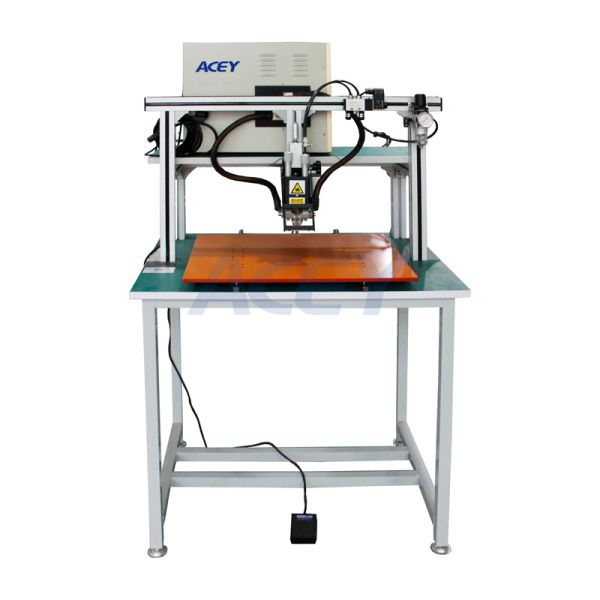

5000A DC Inverter Gantry Manual Lithium Battery Pack Spot Welder With Guide Rail

Product Description

ACEY-5000D lithium battery pack spot welder features stable performance, reliable welding quality, and a compact, well-engineered structure with a small footprint and high power output. It is suitable for welding power lithium-ion battery modules, 3C lithium battery packs, NiMH battery packs, as well as small hardware parts, electronic and electrical components, wire terminals, stainless steel parts, metal jewelry, copper products, and aluminum products.

Features

  • Precision microcomputer control with multiple programmable recipes that can be freely edited and recalled;
  • Dual-stage multi-pulse adjustment to optimize energy output waveform, improving welding strength and weld appearance;
  • Automatic power grid voltage monitoring and tracking compensation;
  • User-friendly design for simple, fast learning and operation;Digital LED display for clear, intuitive parameter setting and adjustment;
  • Rear-output electrode design, making integration with automated equipment easier;
  • Optimized structural design with a compact footprint, refined appearance, and high power output;
  • Industrial-grade circuit design for safe and reliable operation;
  • Worktable guide rails allow front–back and left–right movement, with a welding head that supports left–right adjustable welding.

Main Technical Parameter

Operating Temperature -30°C to 50°C
Operating Humidity ≤ 90% RH
Air Supply Pressure 0.4–0.6 MPa (pneumatic type only)
Power Supply 380V, 50Hz / 60Hz
Floor Load Capacity ≤ 200 kg/m²
Grounding Type Direct grounding
Site Requirements Clean environment, free of strong electromagnetic interference
Installation Conditions Flat surface, no vibration or impact
Noise Level ≤ 80 dB
Machine Dimensions (L×W×H) Approx. 900 × 650 × 1162 mm (subject to actual machine)
Machine Weight Approx. 67 kg
Machine Color Computer white (customizable)

Product Display
