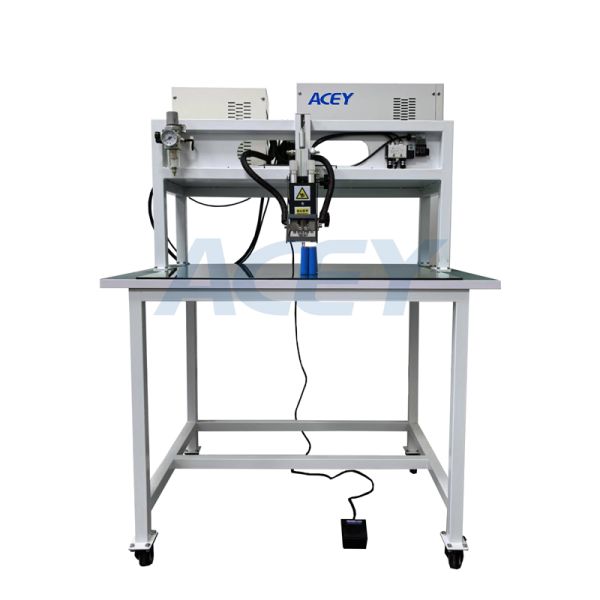

5000A DC Inverter Pneumatic Gantry Manual Spot Welding Machine For Battery Pack
5000A DC Inverter Pneumatic Gantry Manual Spot Welding Machine For Battery Pack
5000A DC Inverter Pneumatic Gantry Manual Spot Welding Machine For Battery Pack
5000A DC Inverter Pneumatic Gantry Manual Spot Welding Machine For Battery Pack
5000A DC Inverter Pneumatic Gantry Manual Spot Welding Machine For Battery Pack
5000A DC Inverter Pneumatic Gantry Manual Spot Welding Machine For Battery Pack
Specifications
Warranty :
1 Year Warranty with Lifetime Support
Max Thickness of Parallel Welding :
0.03mm~0.5mm
Machine Dimensions :
L900mm*W650mm*H1162mm
Machine Weight :
67kg
Welding Power Supply :
5000A DC Inverter
Brand Name :
ACEY
Model Number :
ACEY-5000D
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 2160~2660/Set
Payment Terms :
T/T,PayPal,L/C,Western Union
Supply Ability :
200 Sets/Month
Delivery Time :
7~35 Days
Packaging Details :
Plywood Case
Input Power Supply :
AC 380V/50Hz
After-sales Service :
24/7 Technical Support
Welding Head Drive Type :
Pneumatic
Description

5000A DC Inverter Pneumatic Gantry Manual Spot Welding Machine For Battery Pack



Product Description

ACEY-5000D Battery Pack Spot Welding Machine is a general platform for cylinder battery pack assembling. It equipped with advanced 5000A DC inverter welding power supply, Suitable battery for pack spot welding and assembly in the factory. This machine can assembling batteries like 18650, 26650, 21700... and Nickel or Nickel-Plated Steel strips. Which support battery pack like E-Bike, Scooter, electromobile,etc.


Features

  • Applicable battery types: cylindrical lithium cells, prismatic batteries, and pouch batteries;

  • Welding control method: foot pedal switch;

  • Equipped with weld point tracking and monitoring functions, including spatter, false weld, and missed weld detection with recording and alarm;

  • Optional welding heads: pneumatic welding head or electric welding head;

  • Uses a DC welding power supply with a maximum current of 5000A;

  • Cooling method: forced air cooling.


Main Technical Parameter

Operating Temperature -30°C to 50°C
Operating Humidity ≤ 90% RH
Air Supply Pressure 0.4–0.6 MPa
Power Supply 380V, 50Hz / 60Hz
Floor Load Capacity ≤ 200 kg/m²
Grounding Type Direct grounding
Site Requirements Clean environment, no strong electromagnetic interference
Installation Conditions Flat surface, no vibration or impact
Noise Level ≤ 80 dB
Machine Dimensions (L×W×H) Approx. 900 × 650 × 1162 mm (subject to actual machine)
Machine Weight Approx. 67 kg
Machine Color Computer white (customizable)

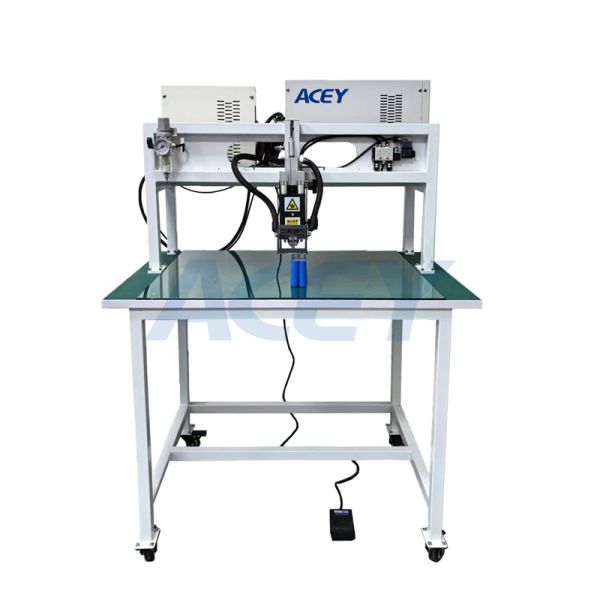

Product Display

5000A DC Inverter Pneumatic Gantry Manual Spot Welding Machine For Battery Pack5000A DC Inverter Pneumatic Gantry Manual Spot Welding Machine For Battery Pack
